ECU boot mode photos
Photos showing boot mode connections on different ECUs (test points, resistors, boot pins, etc.).
ALFA BRERA MED7 6 2

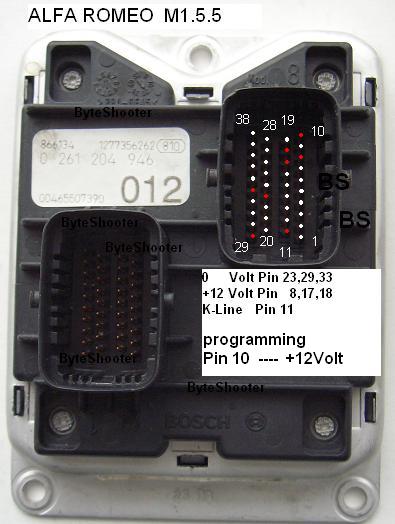

ALFA ME1 5 5

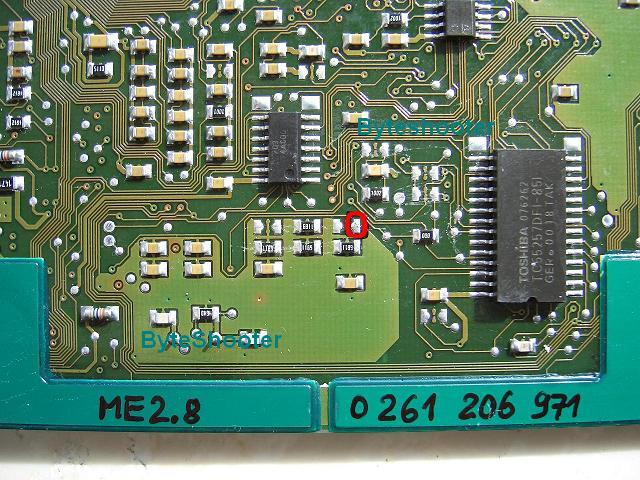

AMG ME2 8 0261206971
AMG Mercedes ME 2 7 2

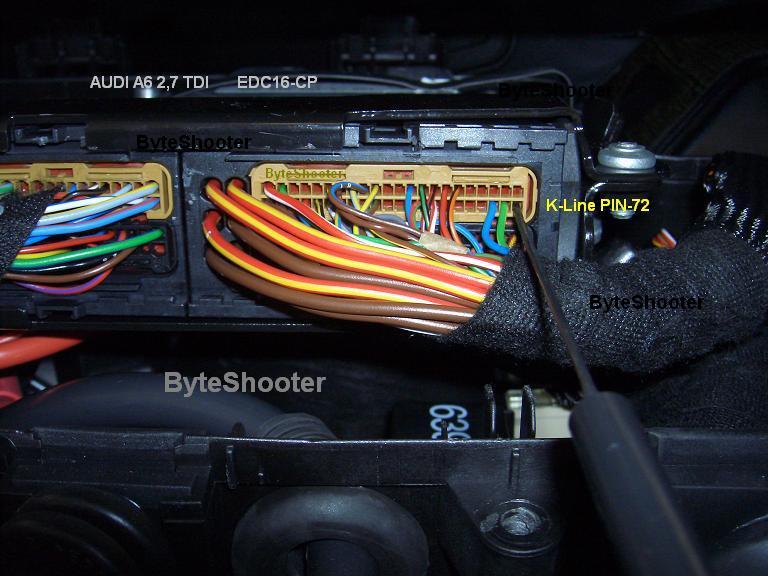

AUDI A6 2 7 EDC16 CP

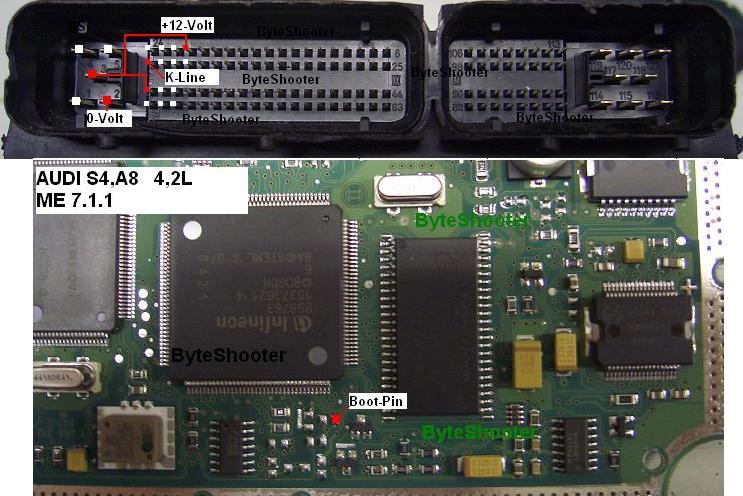

AUDI ME7 1 1

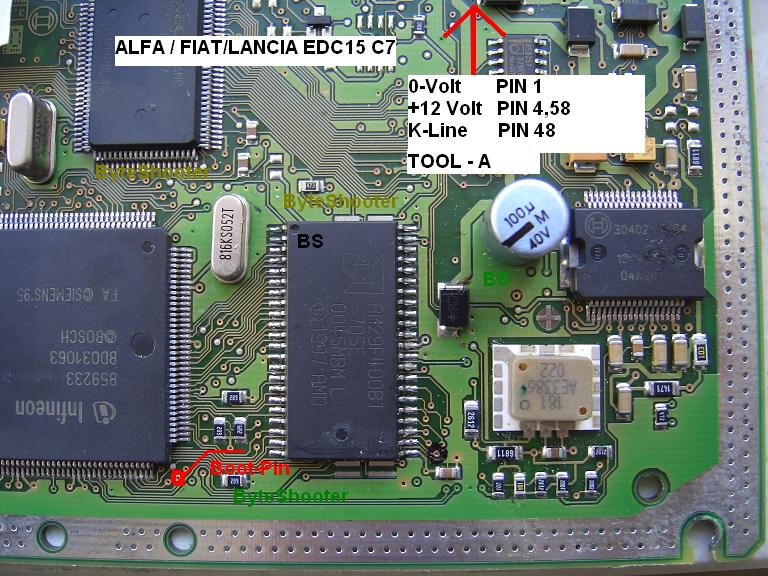

Alfa Fiat Lancia EDC15C7

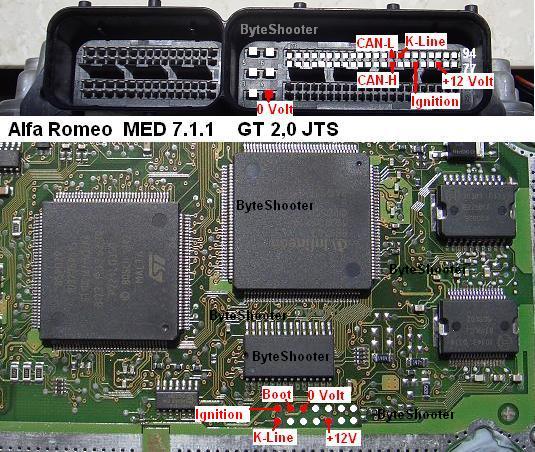

Alfa Romeo MED7 1 1

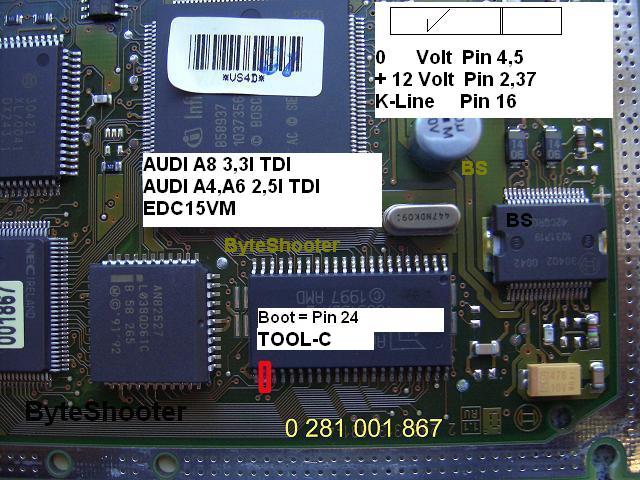

Audi A4 A6 A8 EDC15VM
BMW MS42 5WK90329

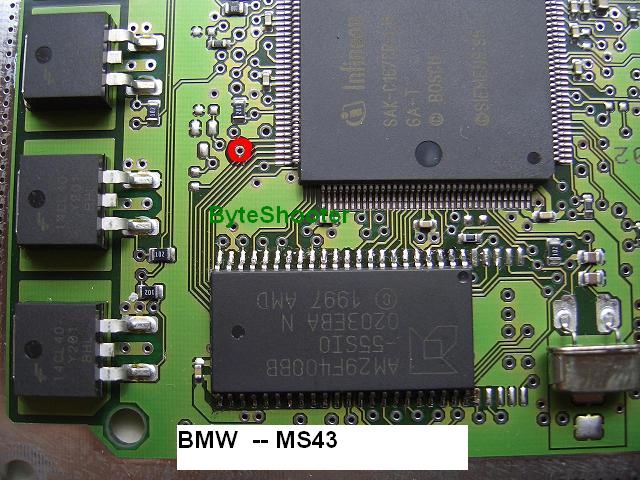

BMW MS43 5WK90015

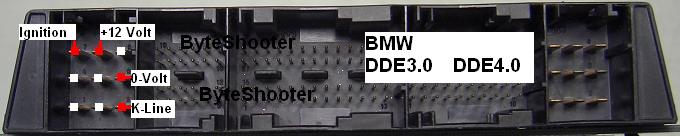

BMW DDE3 0 DDE4 0 Plug
BMW DDE4 0

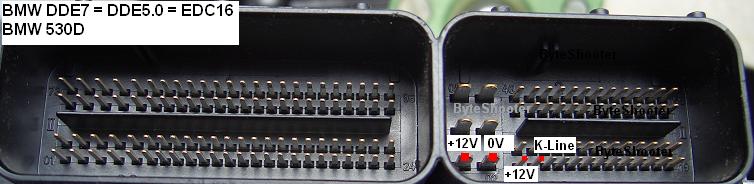

BMW DDE7 EDC16

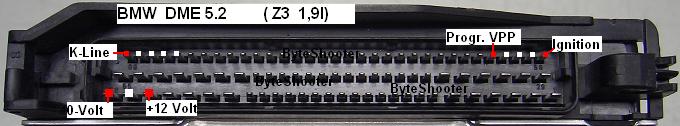

BMW DME5 2

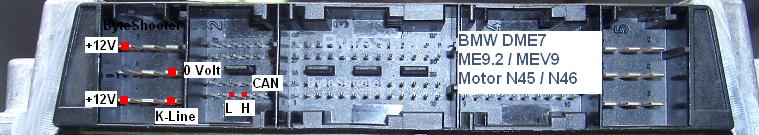

BMW DME7 ME9 2
BMW MED17 DME7
BMW MED17 DME71

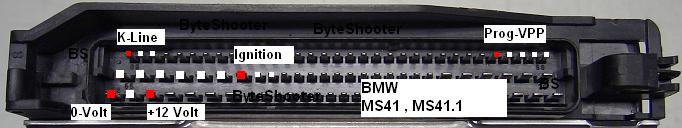

BMW MS41 Plug

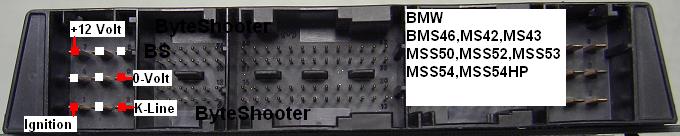

BMW MSx Plug

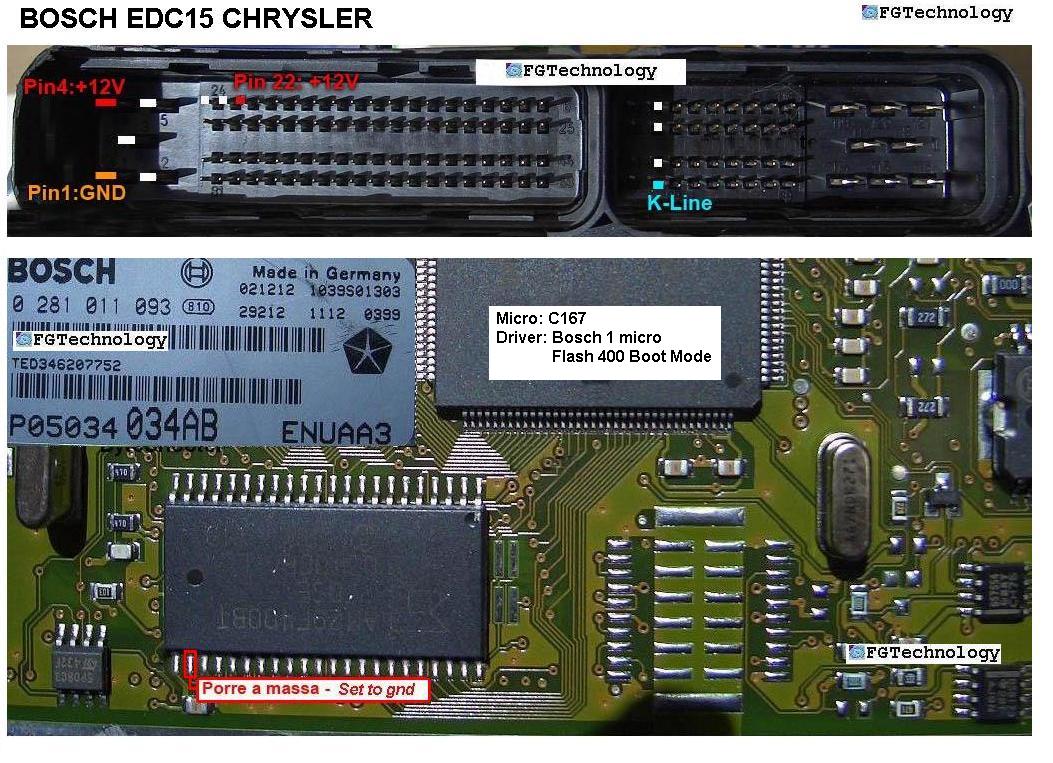

BOSCH EDC15 CHRYSLER C167

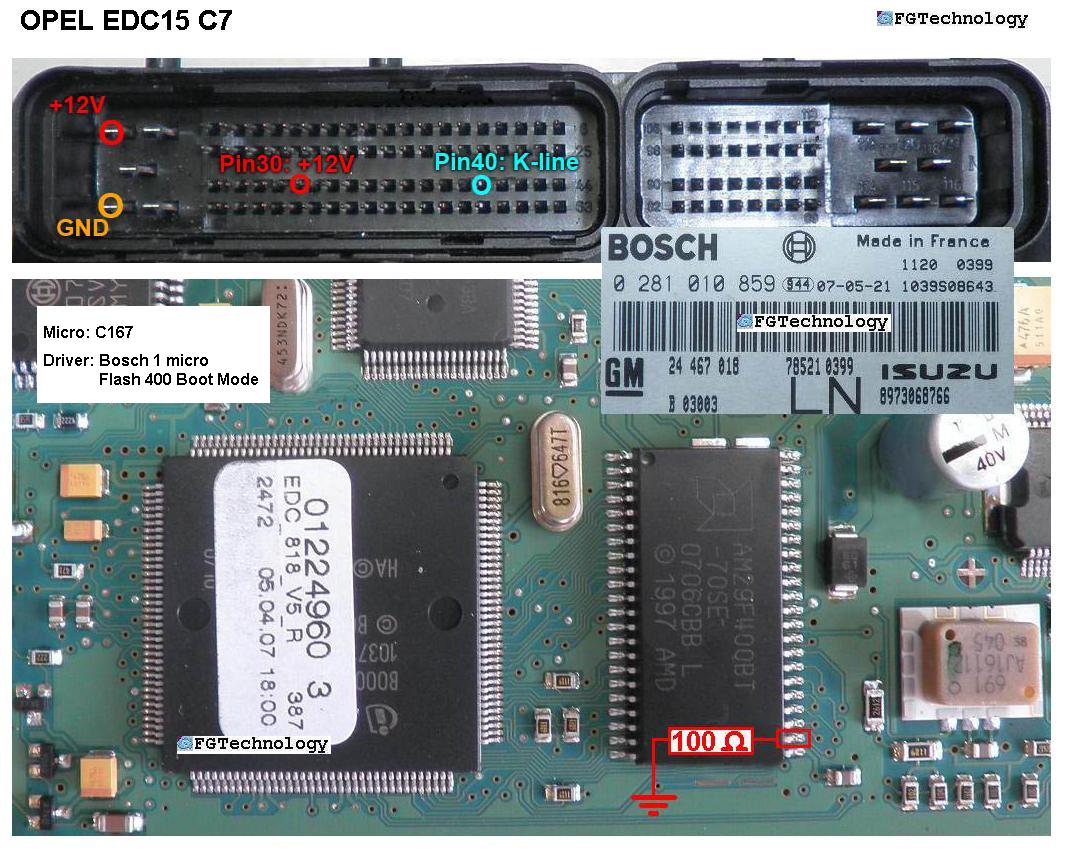

BOSCH EDC15 C7 OPEL

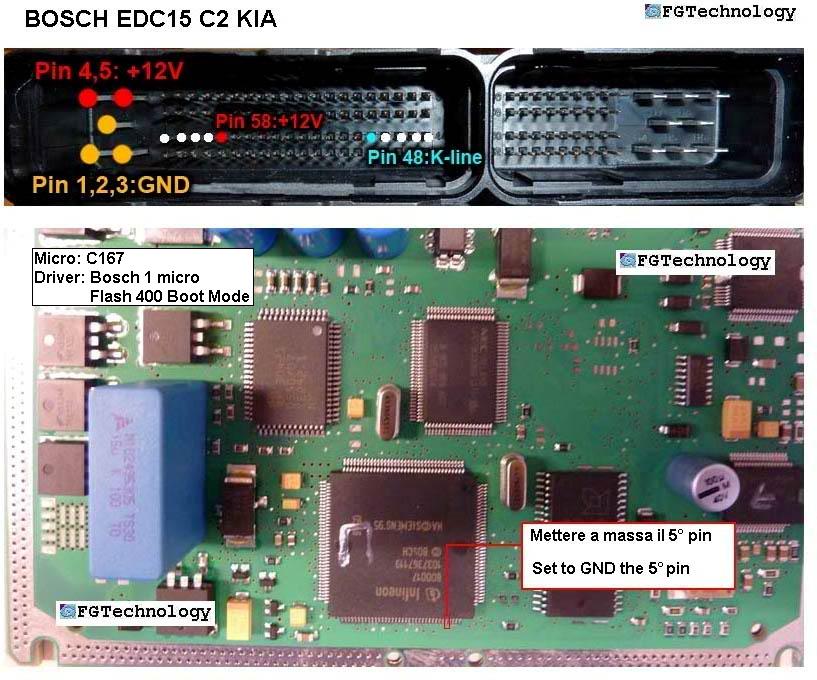

BOSCH EDC15 C2

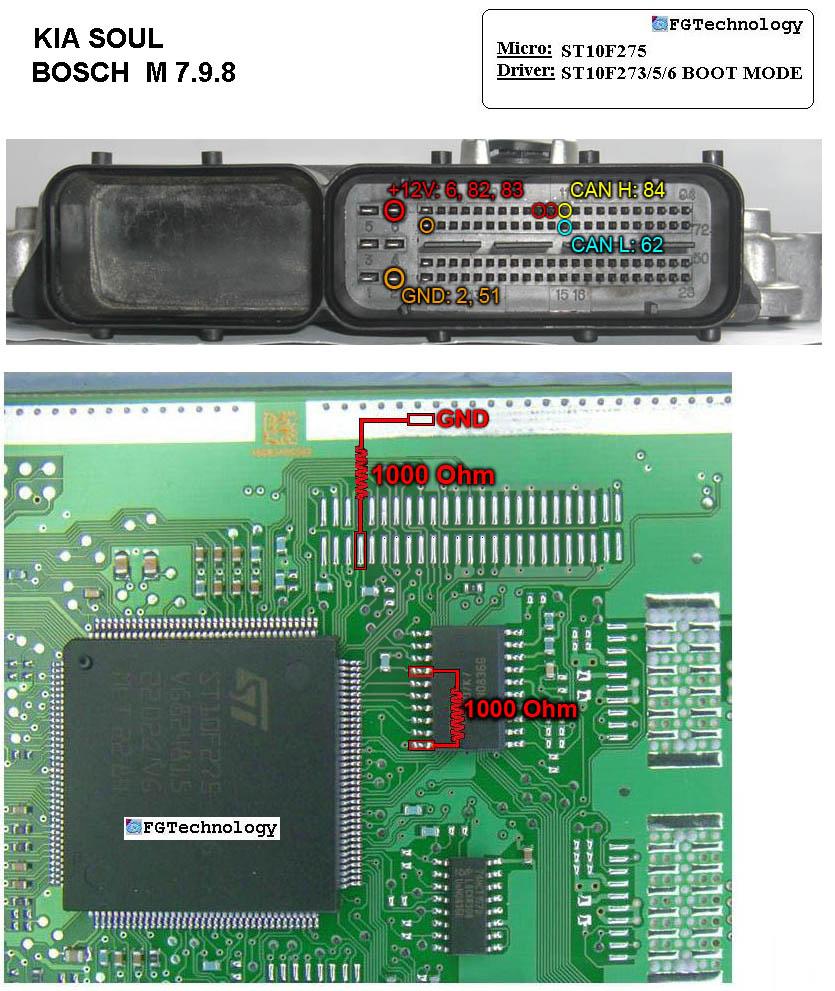

BOSCH KIA M798 ST10F275

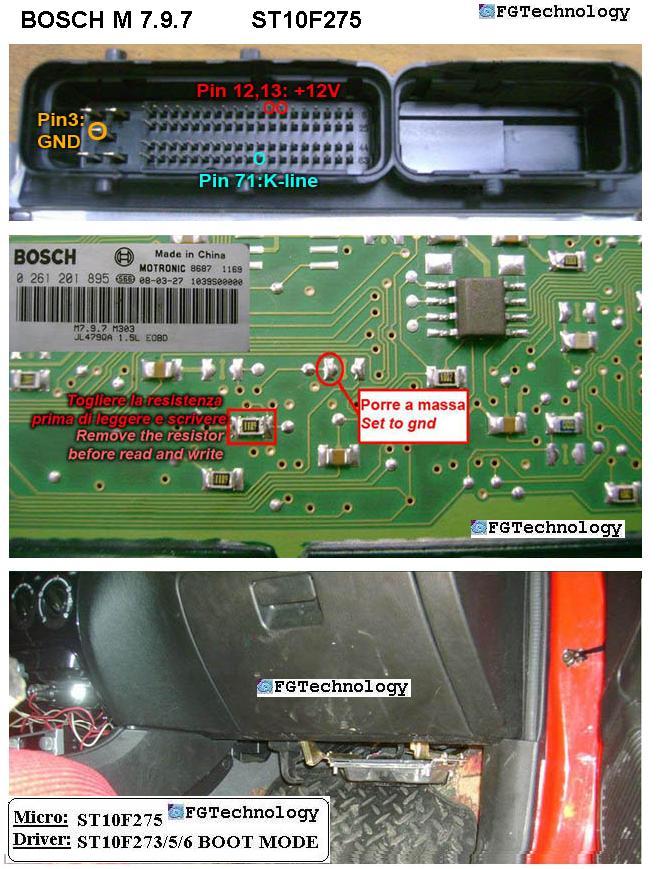

BOSCH M7.9.7 GEELY ST10F275

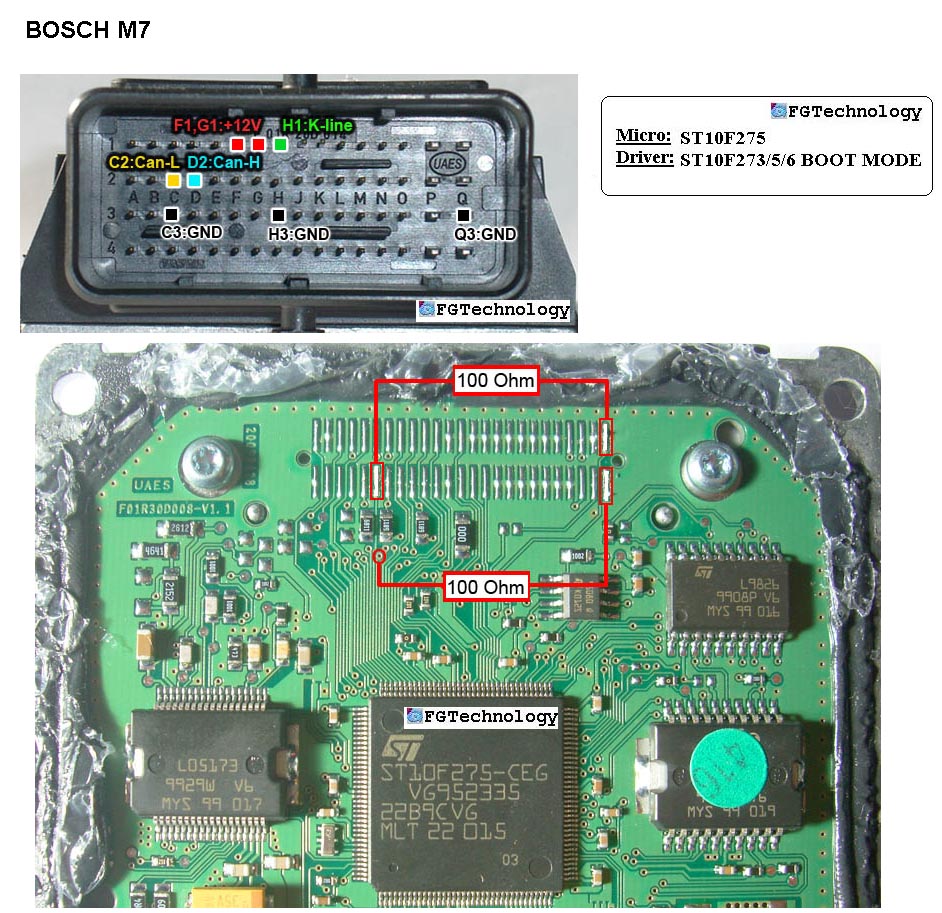

BOSCH M7

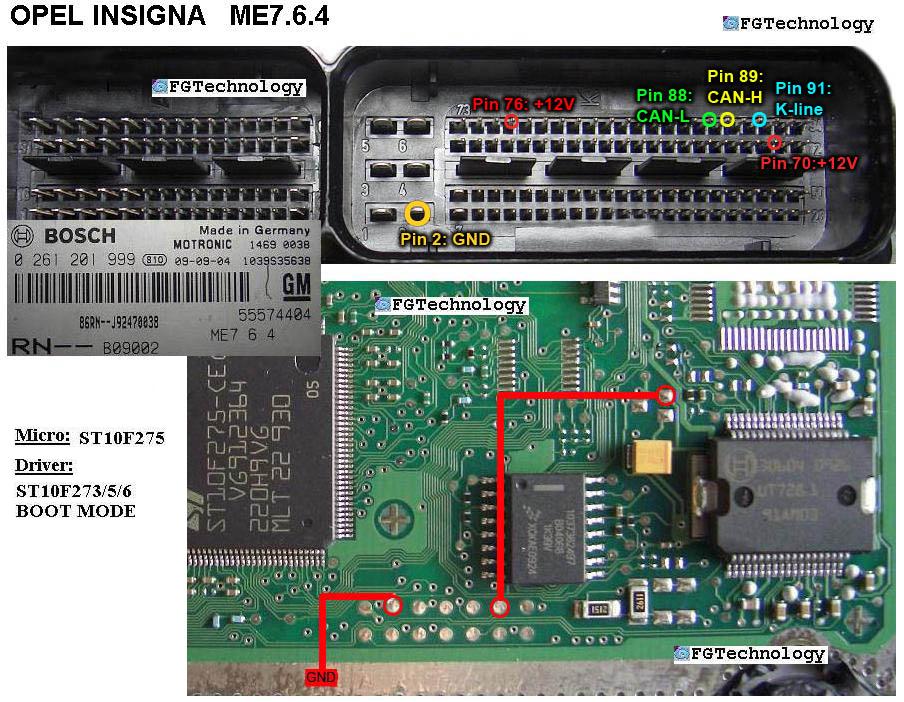

BOSCH ME7.6.4 OPEL

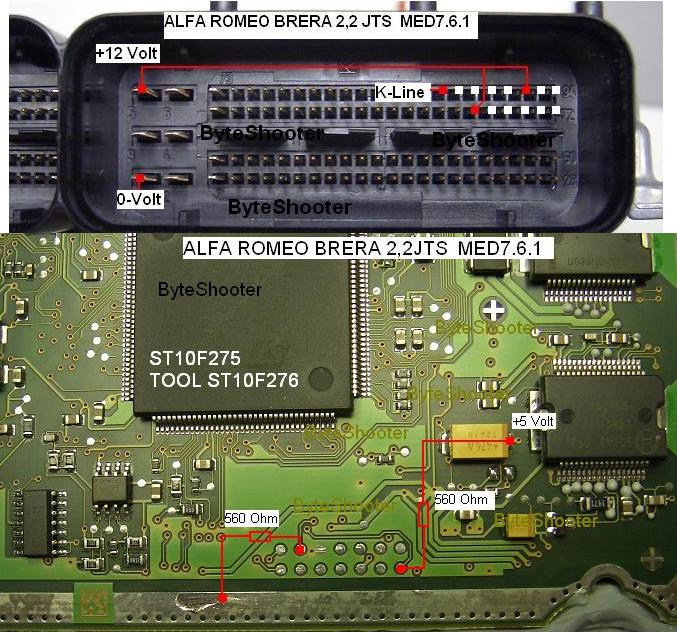

Brera 2 2 JTS MED7 6 1

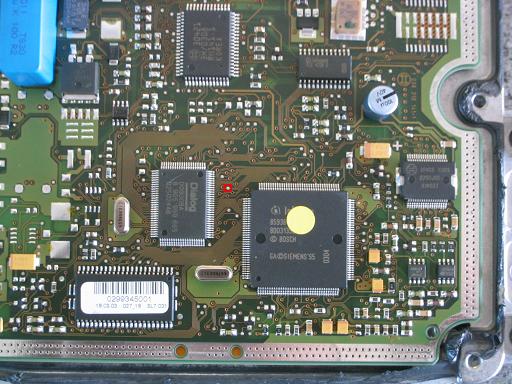

CITROEN C5 2,0 HDI EDC15C2 0281011 340
COME ESEGUIRE IL FORO SULLA ECU IAW 59F
Open PDF

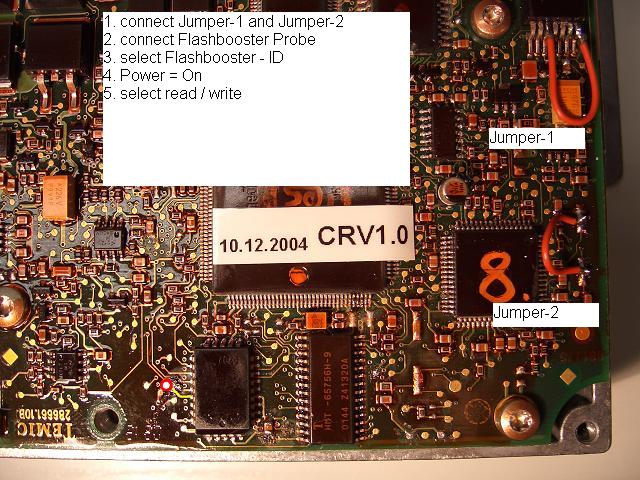

CRV1.0 Mercedes ML400
CRV1 0 Mercedes ML400

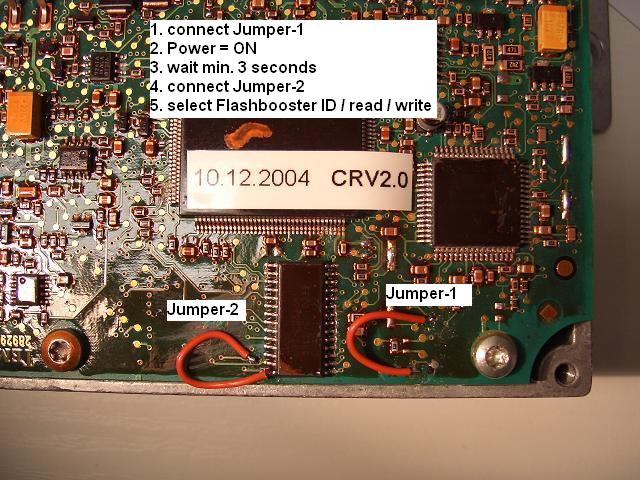

CRV2.0 Mercedes ML400
Chrysler Hemi 8Cyl 5 7l

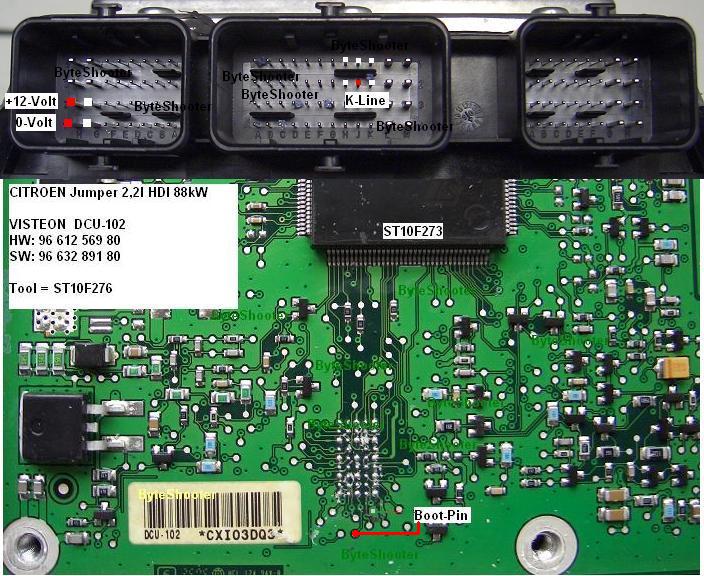

Citroen Jumper 2 2HDI Visteon

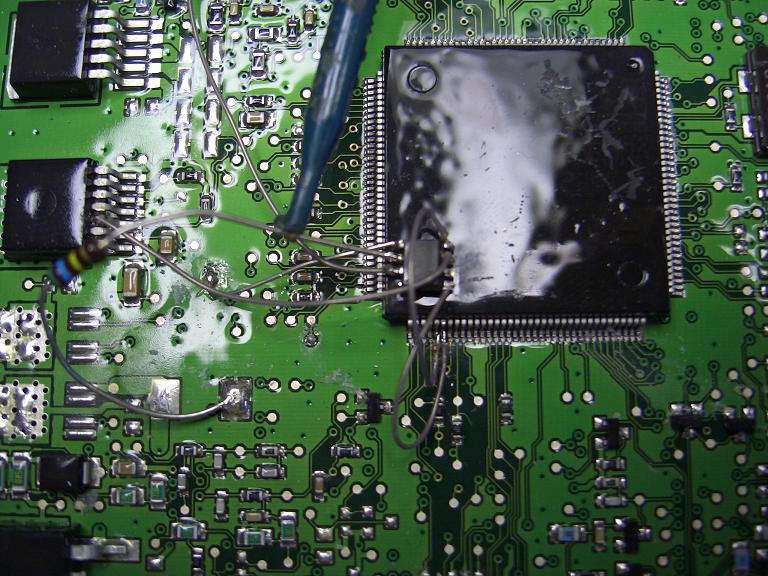

DCU 106 1

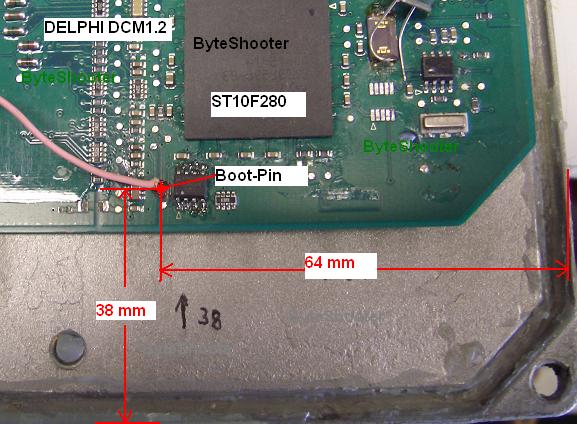

DELPHI DCM 1 2

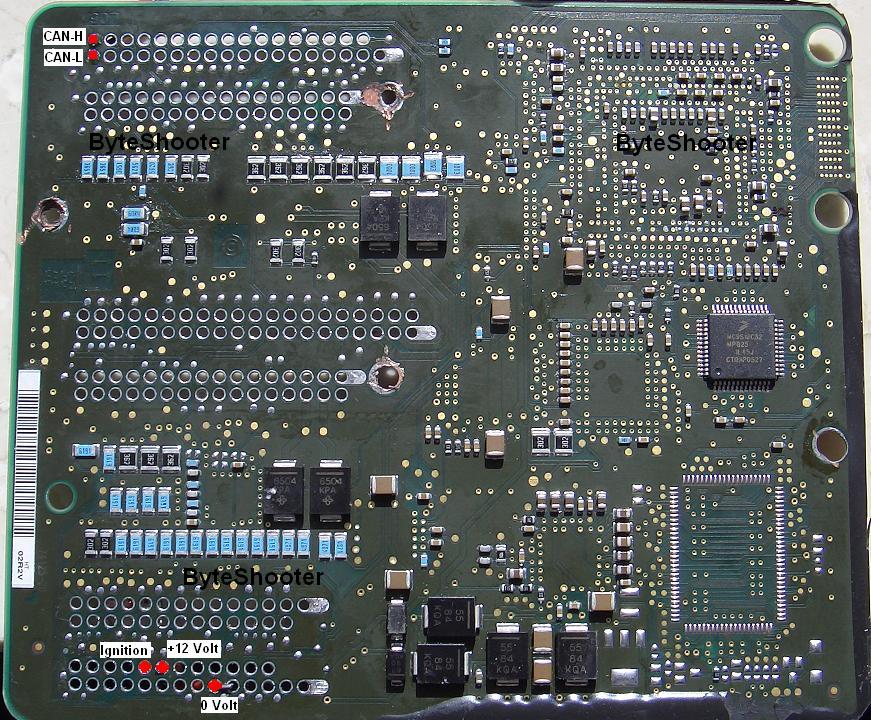

DODGE Connection

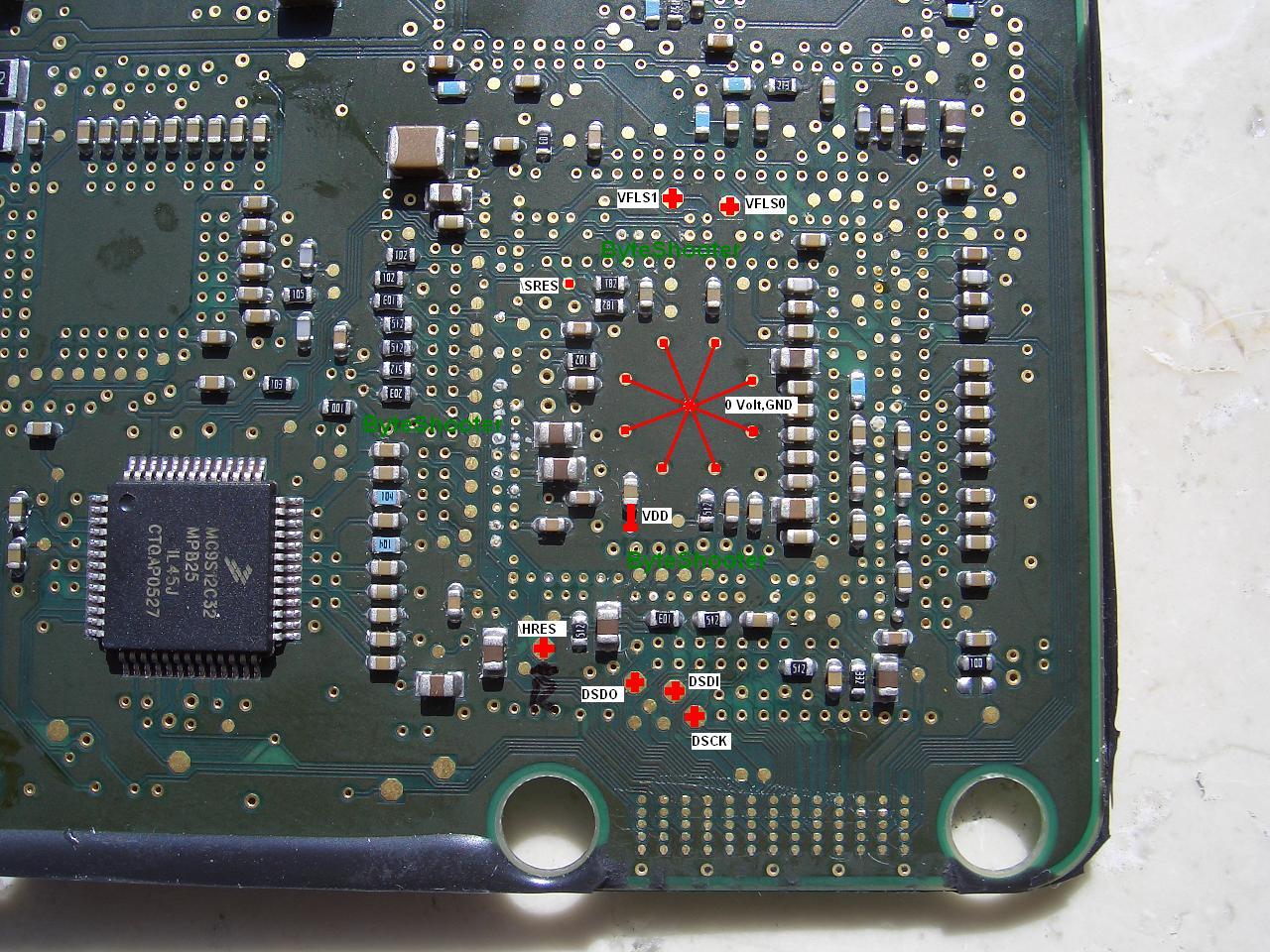

DODGE

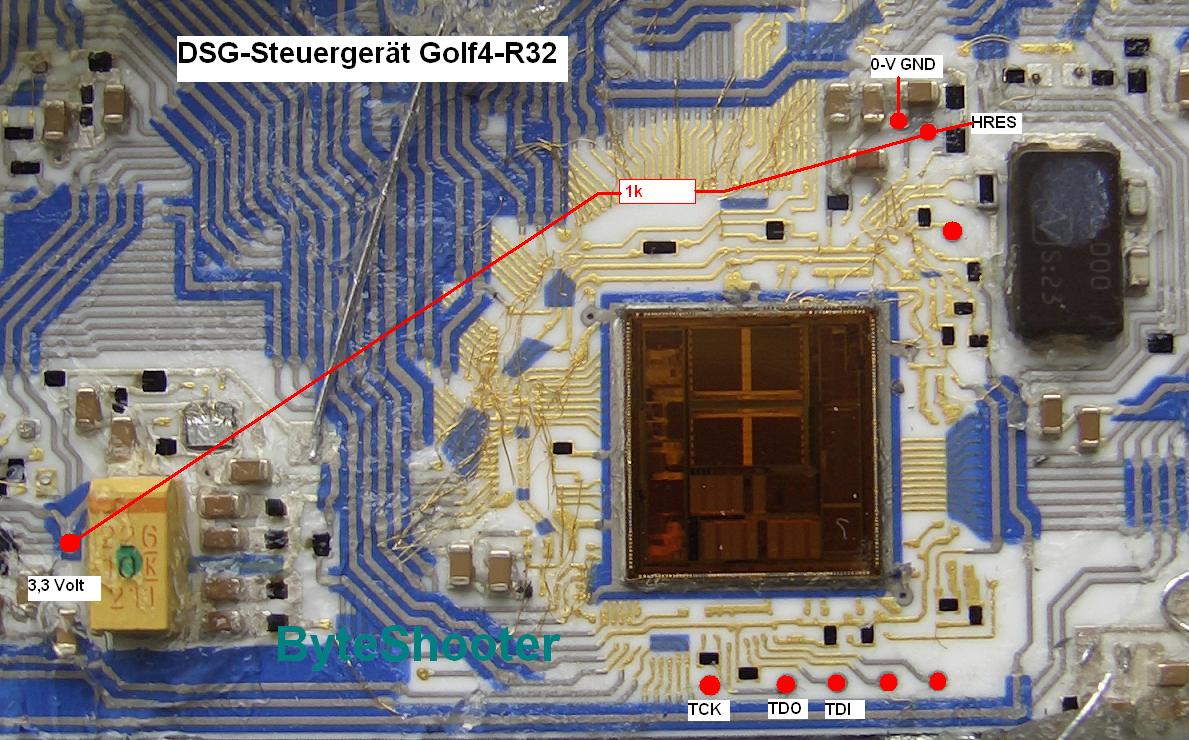

DSG Steuergerat

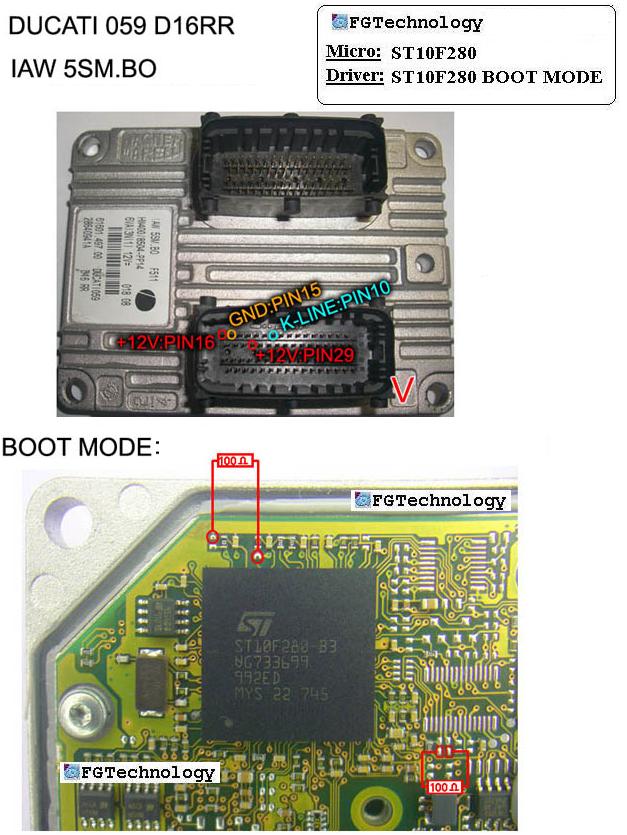

DUCATI D16 IAW5SM ST10F280

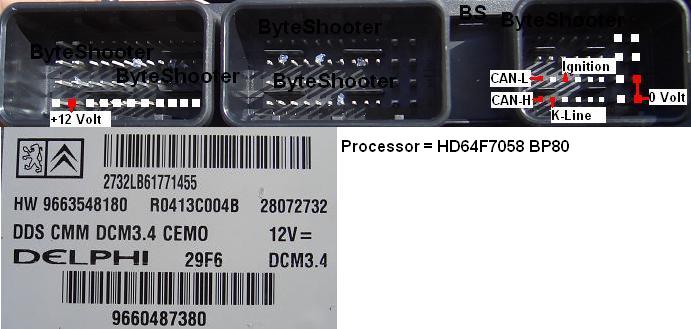

Delphi DCM3 4

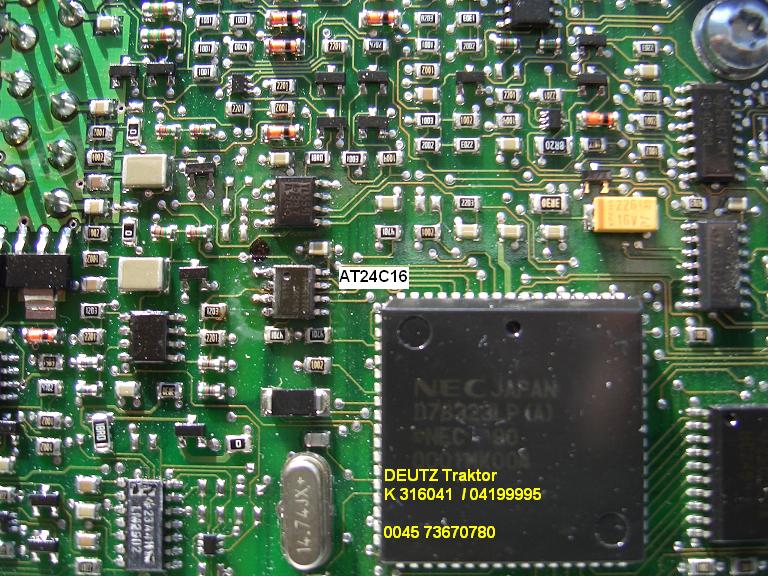

Deutz Traktor 2
ECU ALFA Me7
Open PDF
ECU FIAT Me7
Open PDF
ECU Ferrari 360
Open PDF
ECU VAG EDC15 AUTO
Open PDF
ECU VAG EDC15 STATIC
Open PDF
ECU Edc15e2
Open PDF
ECU Edc15e2BMW
Open PDF

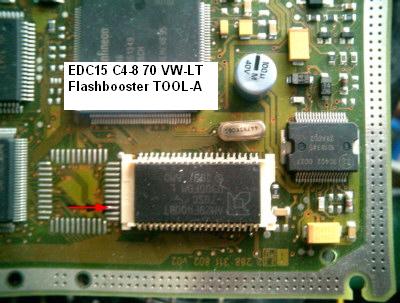

EDC15C4 1

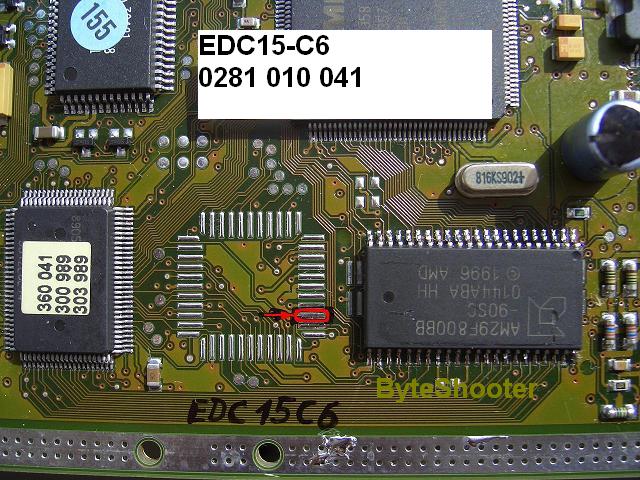

EDC15C6 0281010041 2

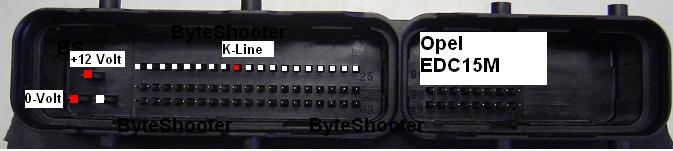

EDC15M

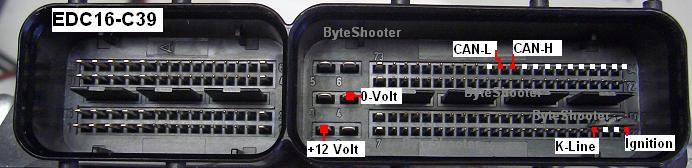

EDC16 C39

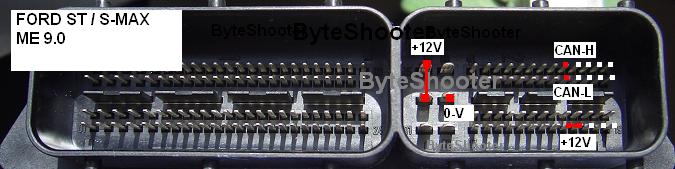

FORD ST SMAX ME9 0

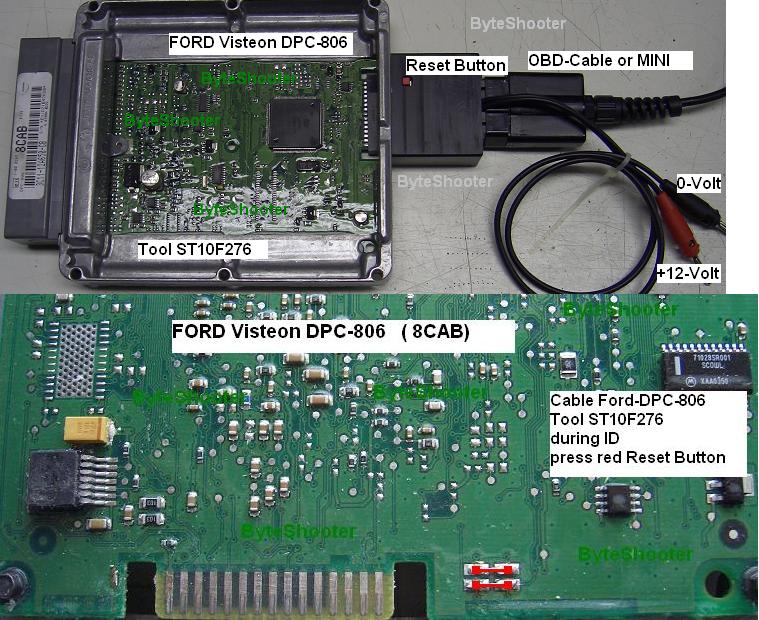

FORD Visteon DPC 806
Fendt EDC7 UC31
Fendt MS6 4 Connector

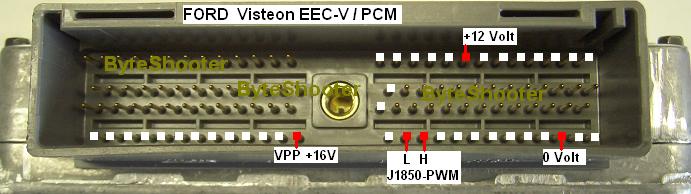

Fors Visteon EEC V PCM Connector

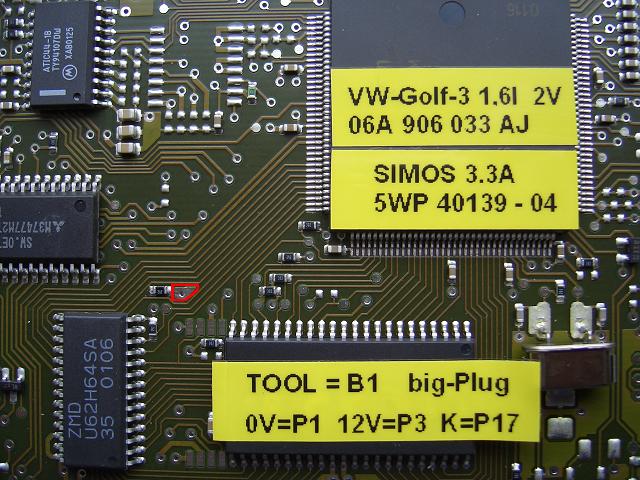

Golf 3 1 6l SIMOS 3 3A

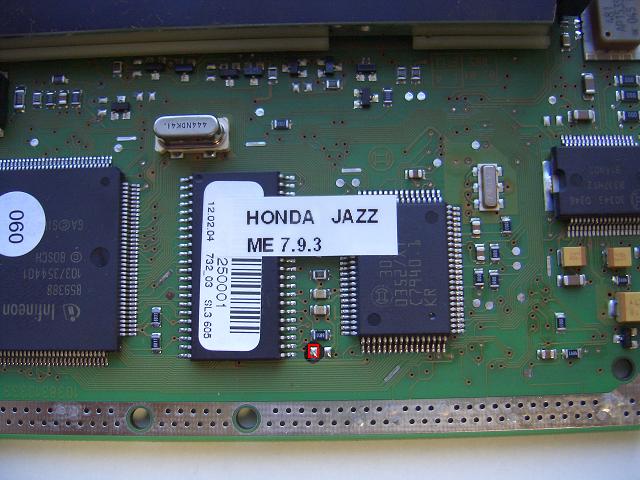

Honda Jazz ME7.9.3
Honda Jazz ME7 9 3

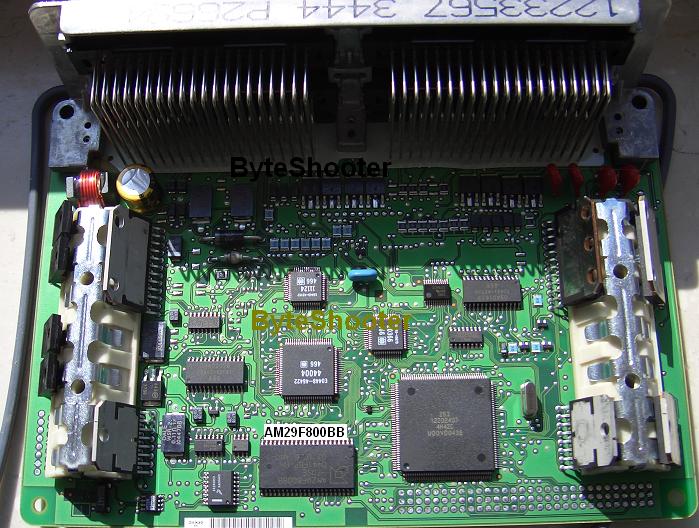

Hummer 2

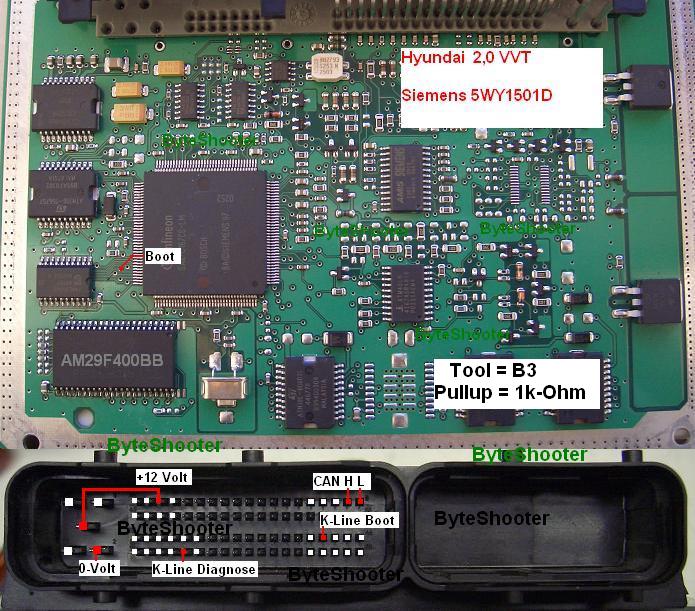

Hyundai 2 0 VVT
IAW4AF ST10F168
Open PDF
IAW59 PINOUT
Open PDF

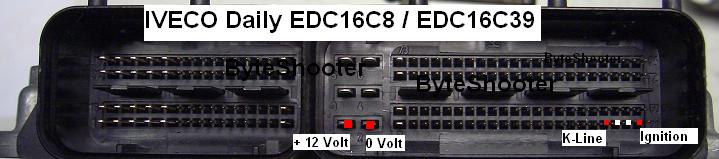

IVECO Daily EDC16C8 EDC16C39

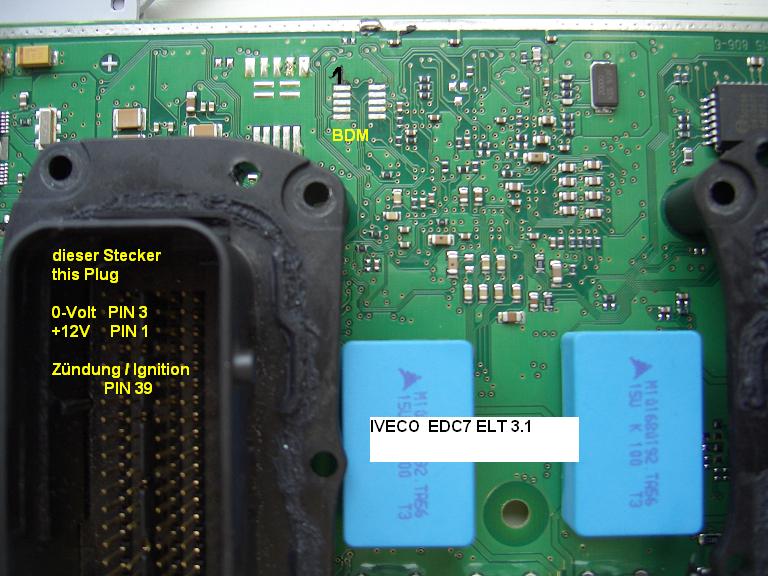

IVECO EDC7 ELT 3 1

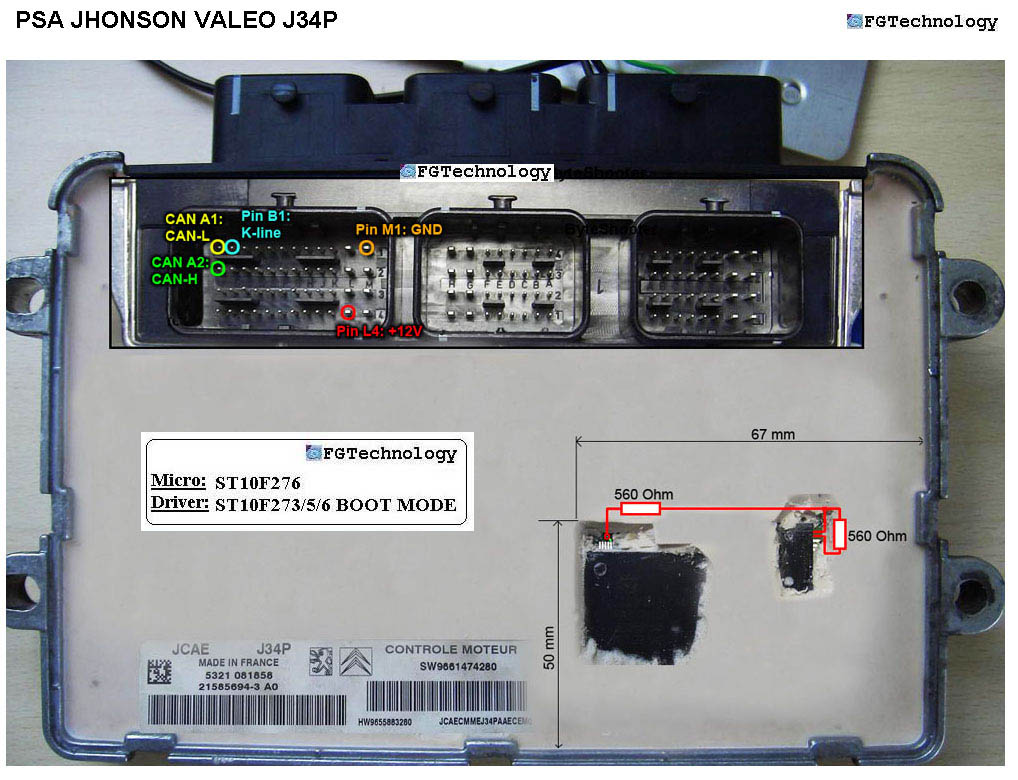

JHONSON VALEO J34P ST10F276
JHONSON VALEO PSA FIAT
Open PDF
Jeep Compass Dodge Caliber Mitsubishi Grandis EDC16U31

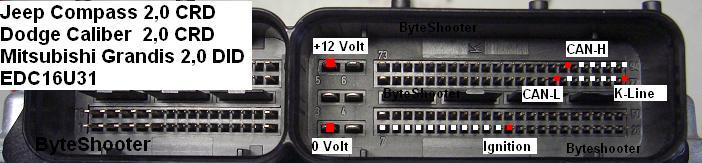

Jeep Compass Dodge Caliber Mitsubishi Grandis EDC16U311
Jeep Compass Dodge Caliber Mitsubishi Grandis EDC16U312
Jhonson Valeo ST10F273

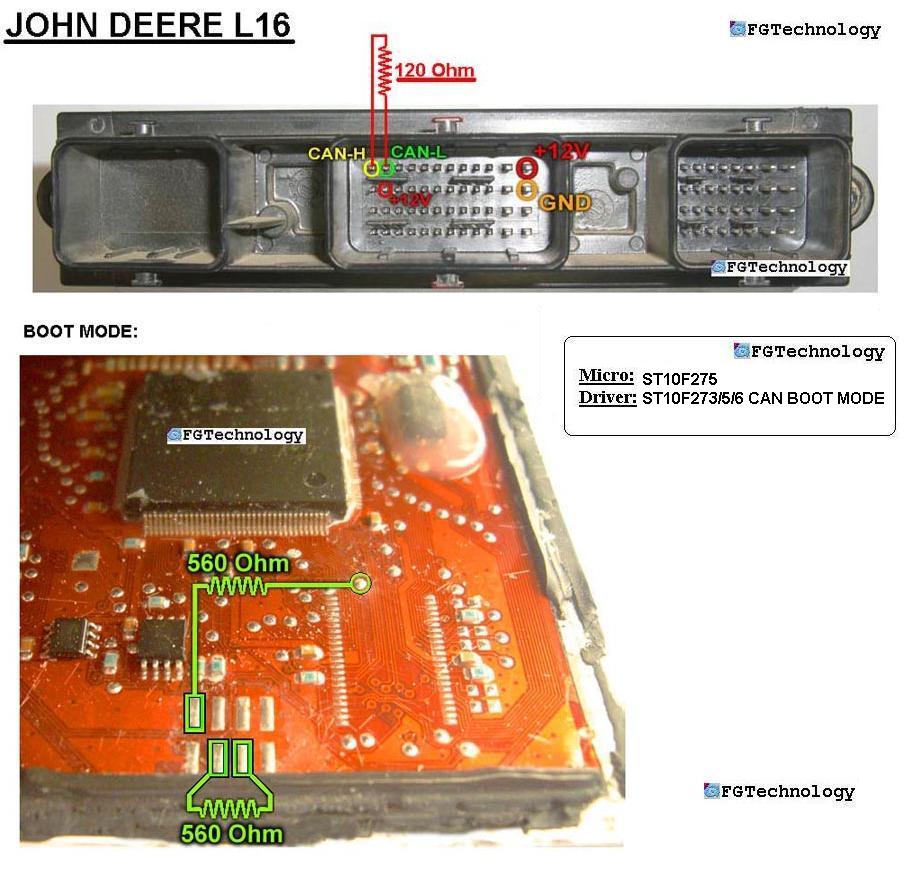

John Deere L16 ST10F276

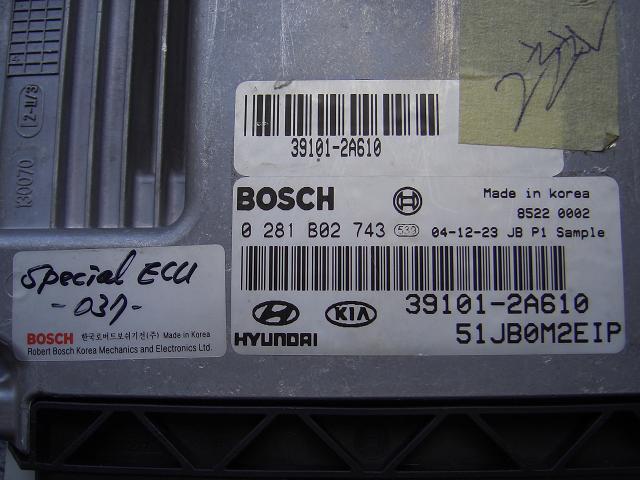

KIA EDC16

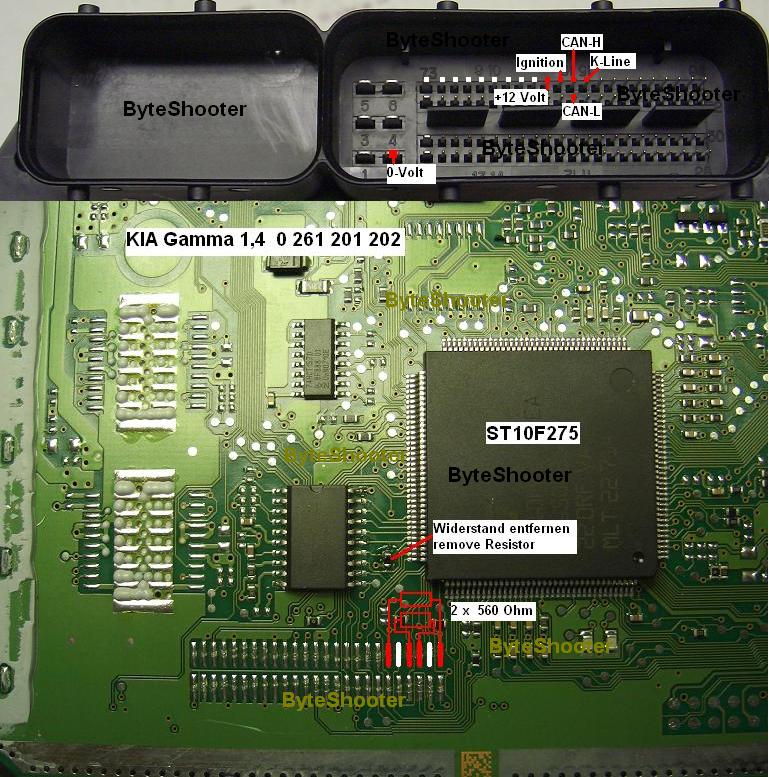

KIA Gamma 1 4

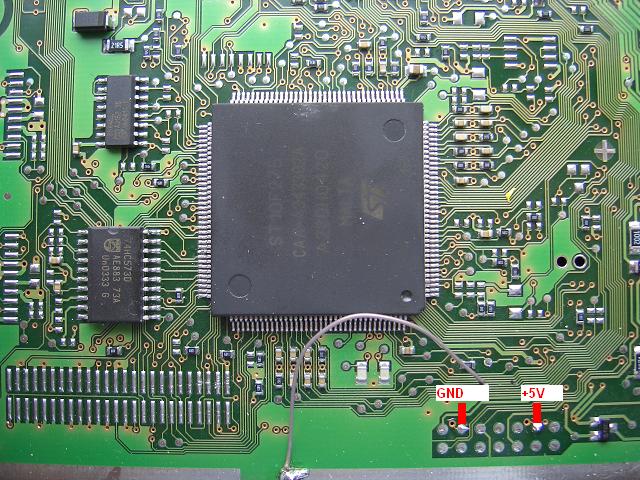

KIA KEFICO Boot

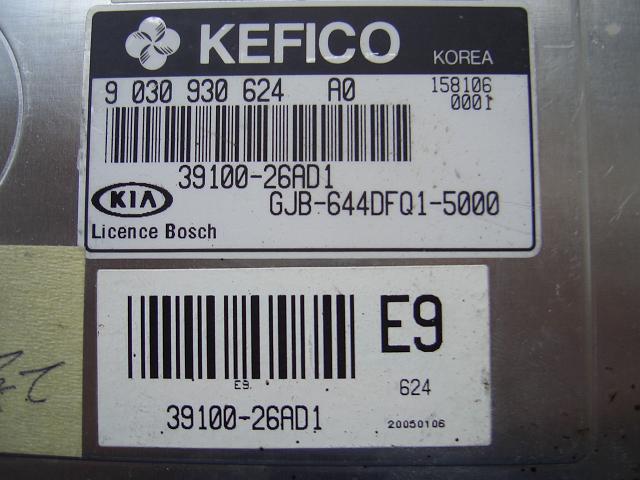

KIA KEFICO

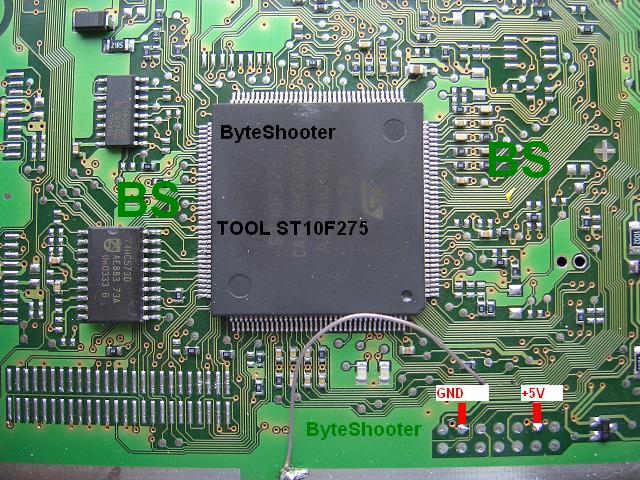

KIA RIO KEFICO

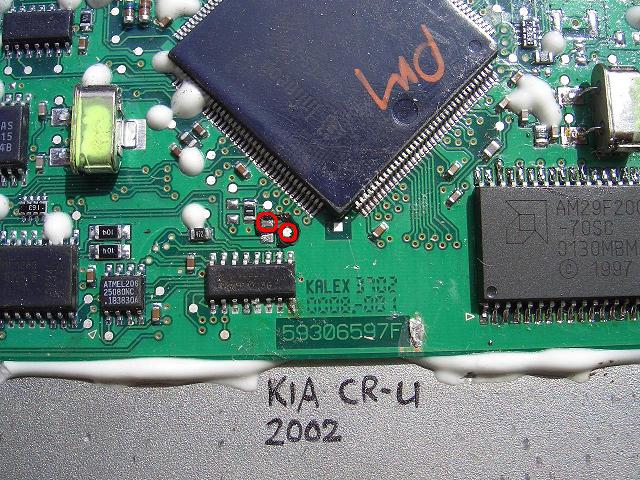

KIA CR U Bj2002 2
M155info
Open PDF
M2.1info
Open PDF

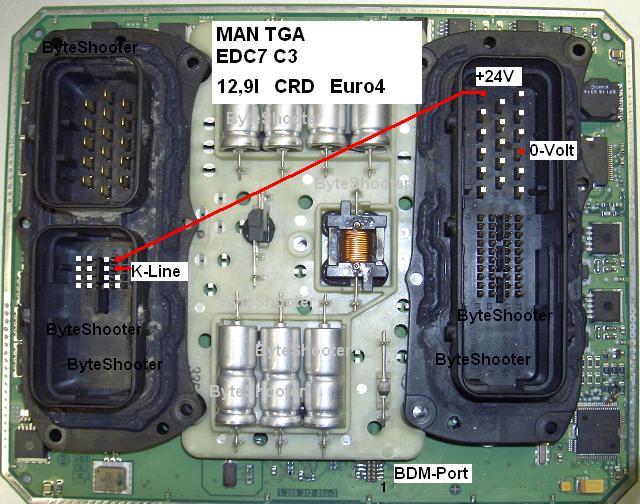

MAN TGA EDC7C3 Euro4

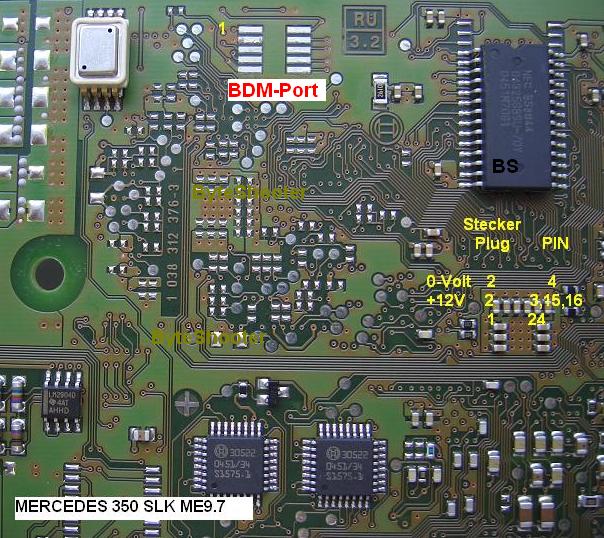

MB SLK350 ME9 7 BDM

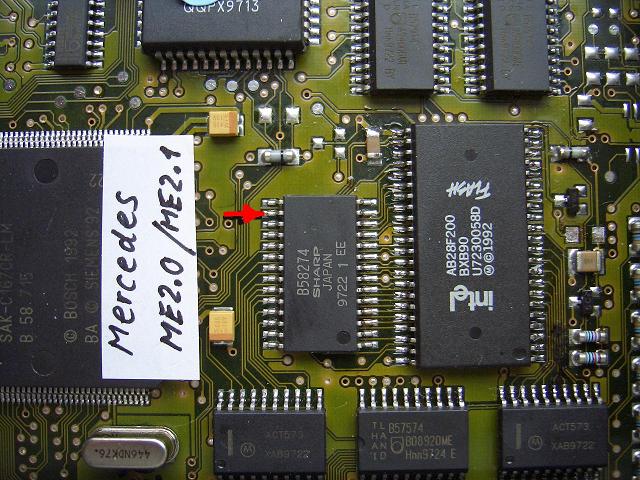

ME2.0 ME2.1
ME2.8 0261206971
ME2 8 0261206971
ME3 1 ME7 3 1 ME7 3H4

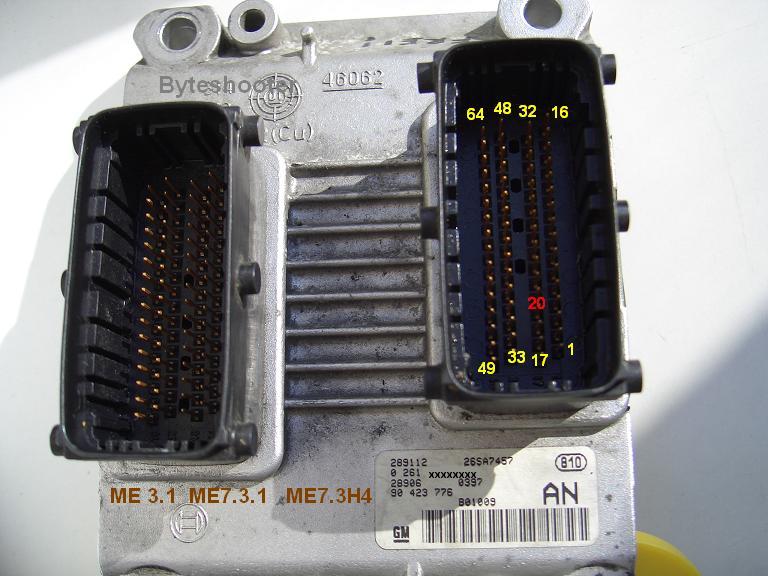

ME3 1 ME7 3 1 ME7 3H41

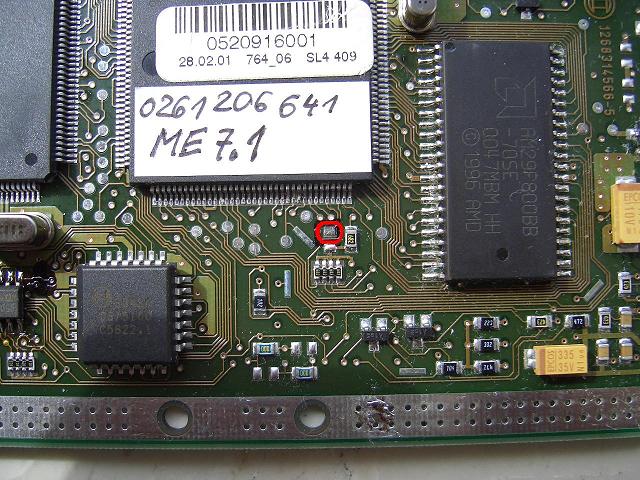

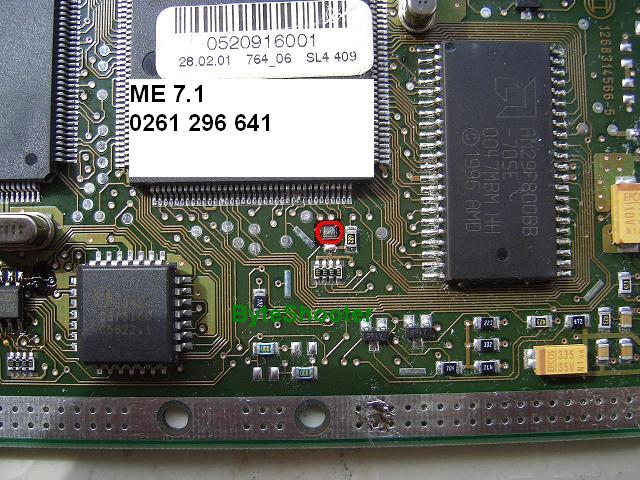

ME7.1 0261206641

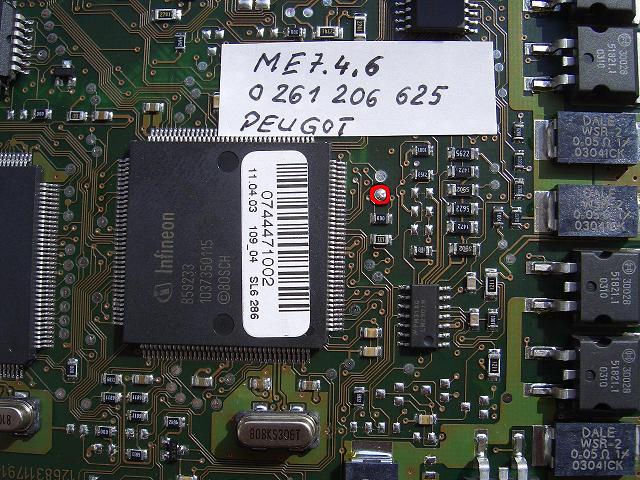

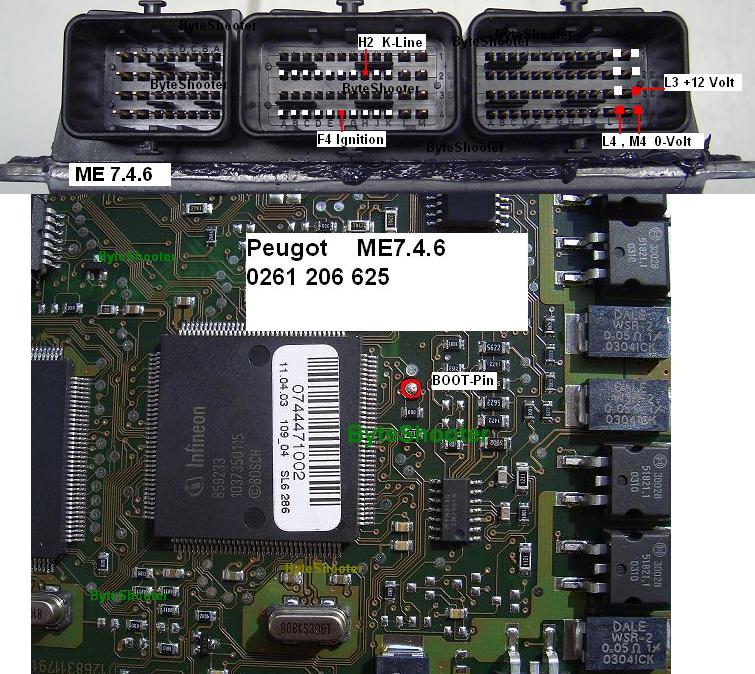

ME7.4.6 0261206625

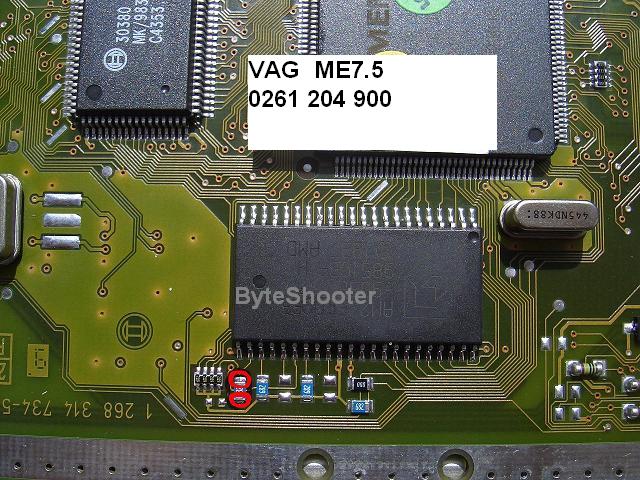

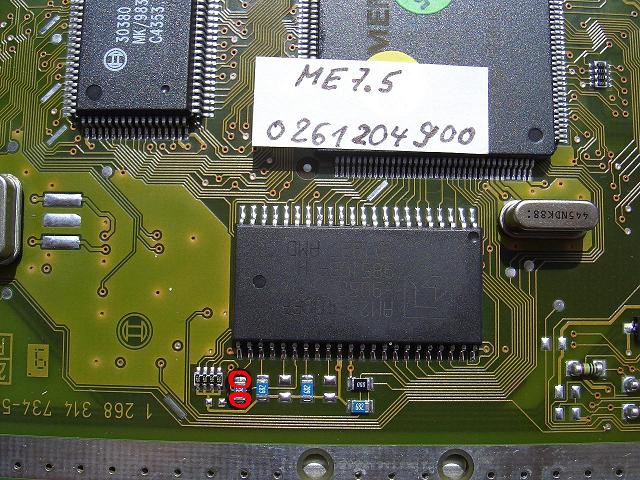

ME7.5 0261204900

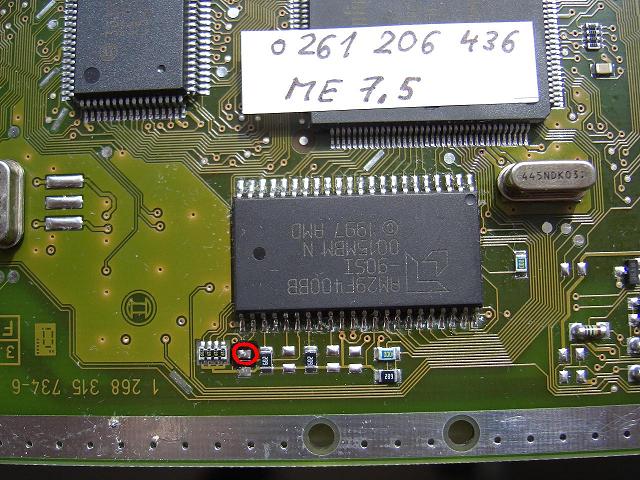

ME7.5 0261206436
ME7 1 0261206641
ME7 1 1 Jumper
ME7 4 6 0261206625
ME7 5 0261204900

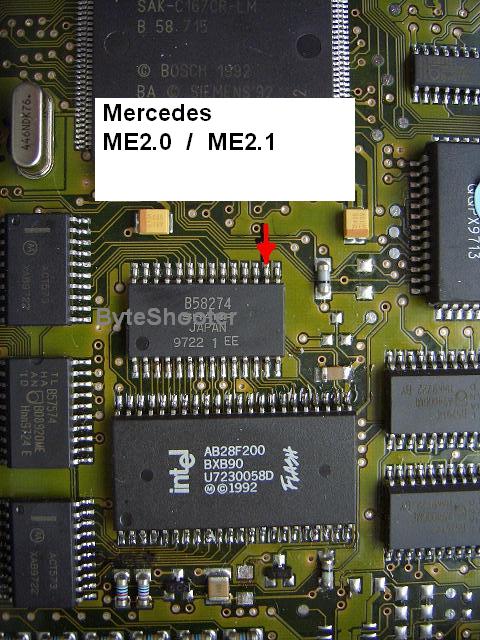

MERCEDES ME2 0 ME2 1

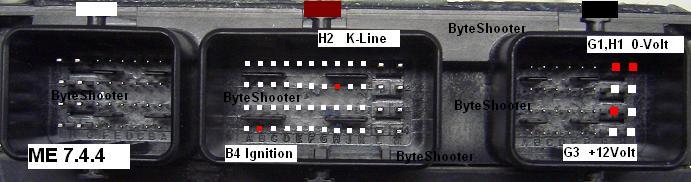

ME 7 4 4 Connector

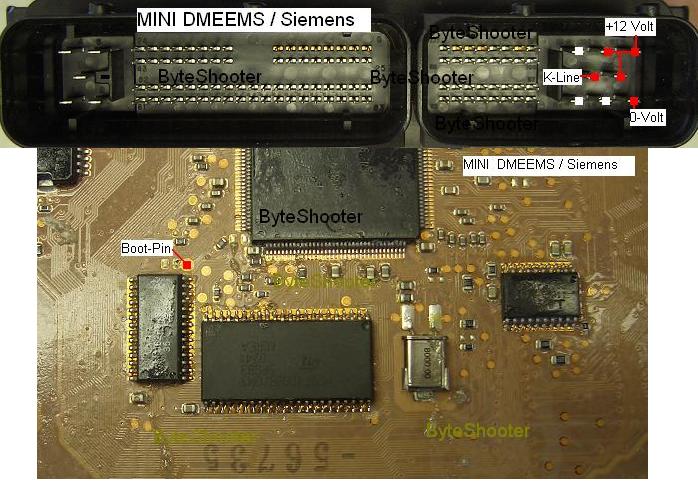

MINI DMEEMS 2

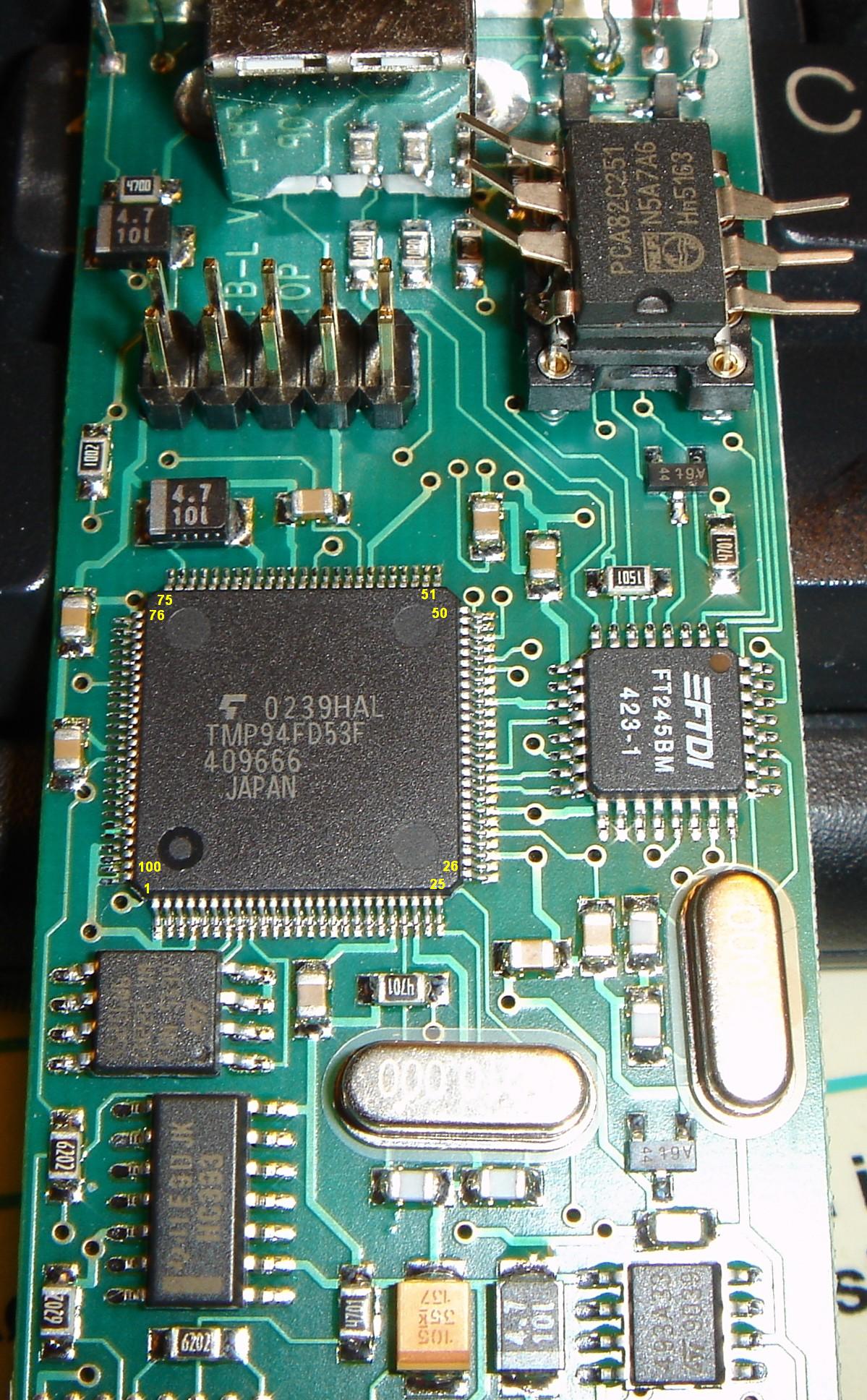

MINI Expansion

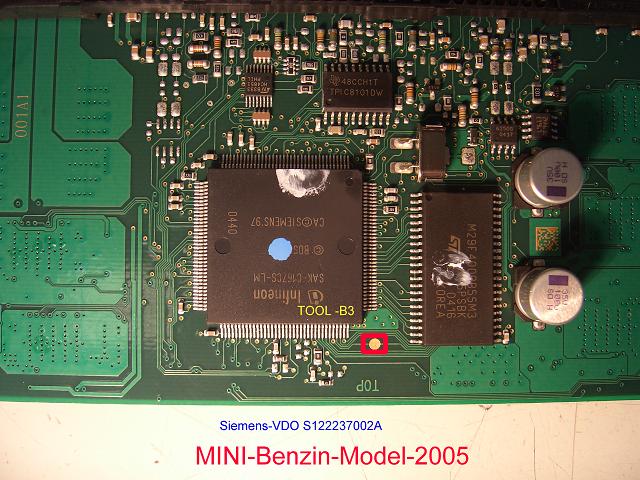

MINI Siemens VDO S122237002A

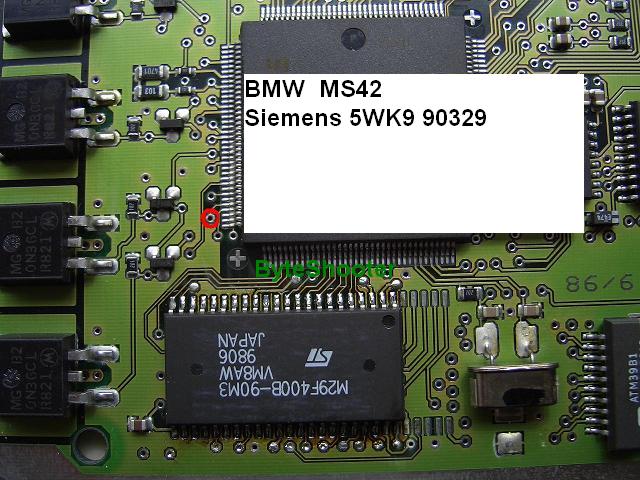

MS42 5WK90329 2
MS43 5WK90015 2
MS6 X Connector
MS6 X Connector1
MS6 X Connector2

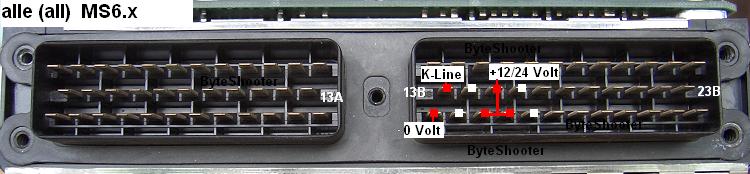

MS6 X Connector3
MS6 X Connector4

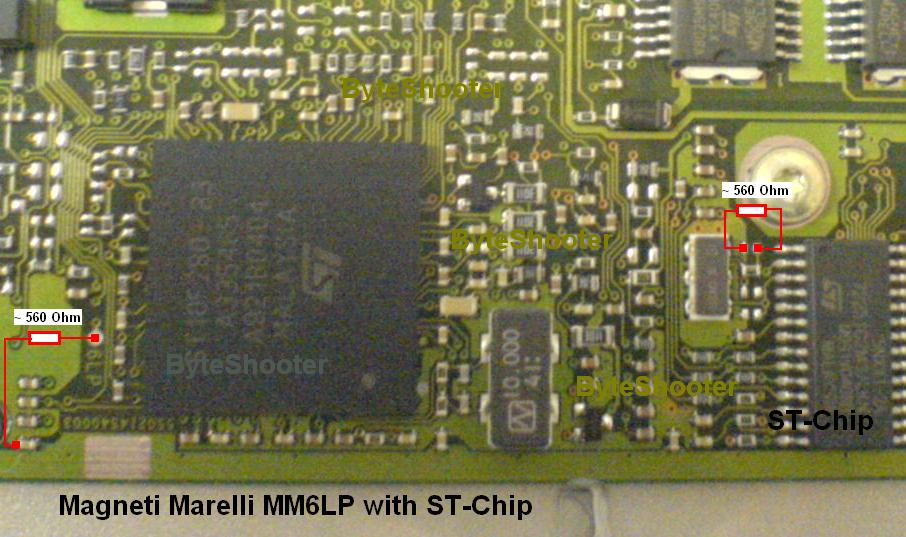

Magneti Marelli MM6LP ST

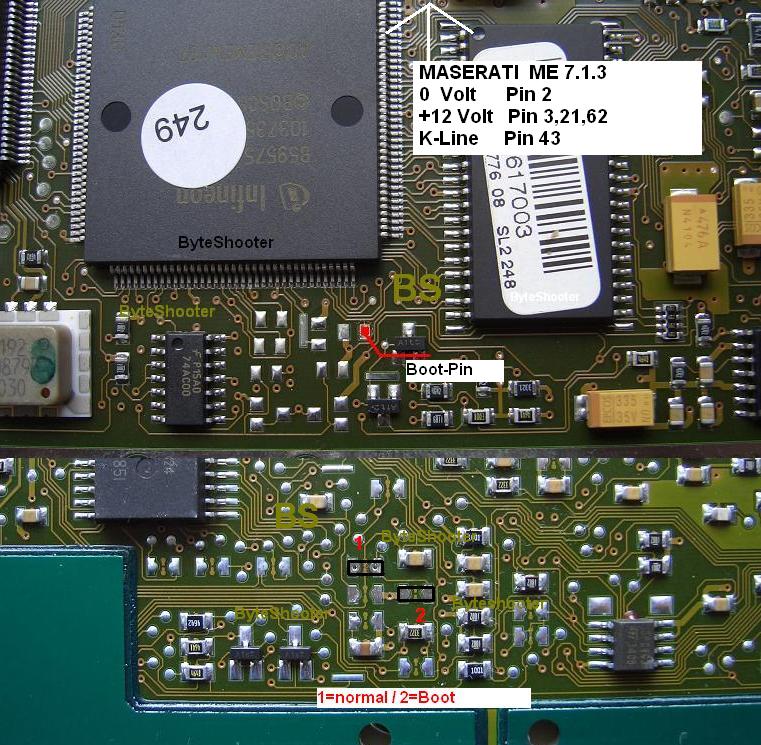

Maserati ME7 1 3

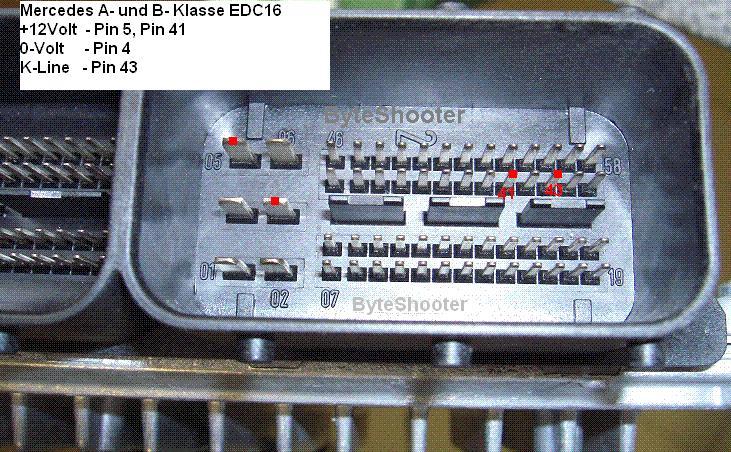

Mercedes A B Klasse EDC16
Mercedes ME 2 7 2

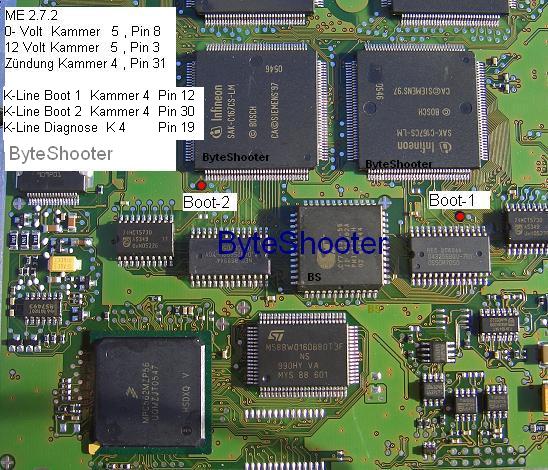

Mercedes ME 2 7 21

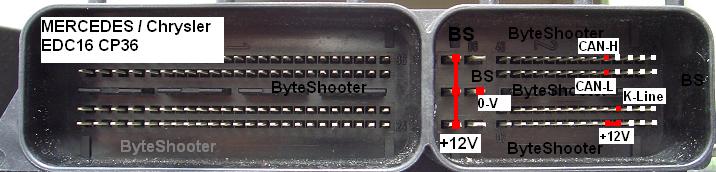

Mercedes Chrysler EDC16 CP36

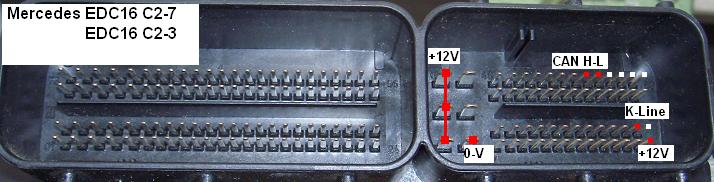

Mercedes EDC16 C2 3 C2 7

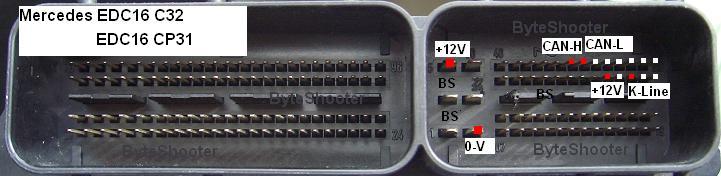

Mercedes EDC16 CP31 C32
Mercedes W211 2 0 CDI Delphi

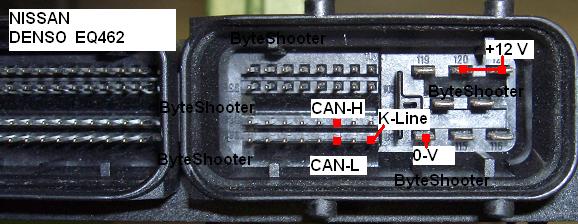

NISSAN DENSO EQ462

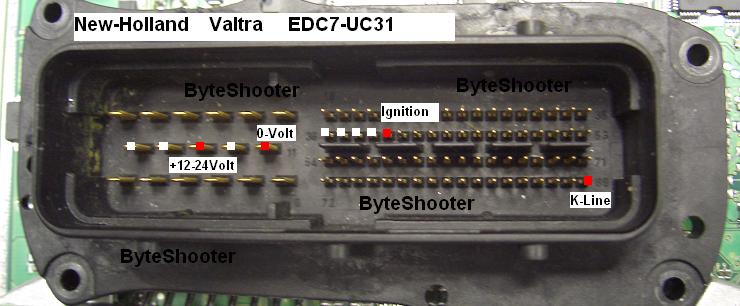

New Holland Valtra EDC7 UC31
New Holland Valtra EDC7 UC311
New Holland Valtra EDC7 UC312

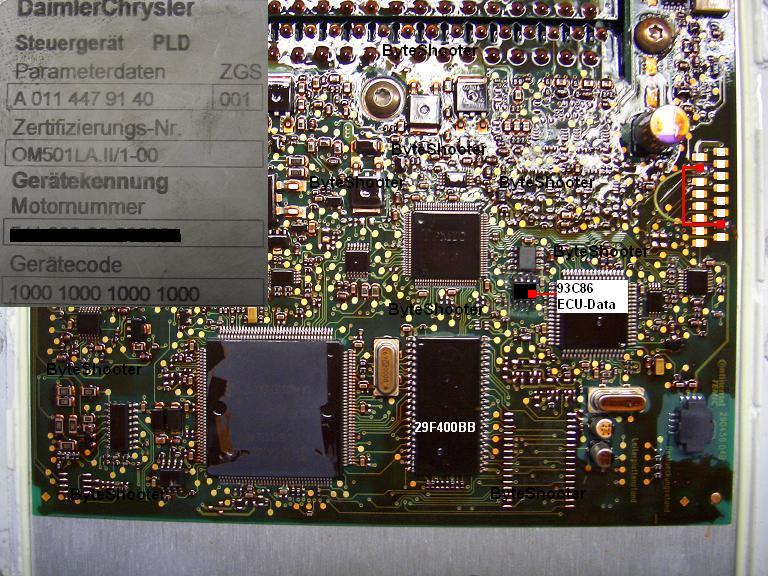

OM501LA II 1 00

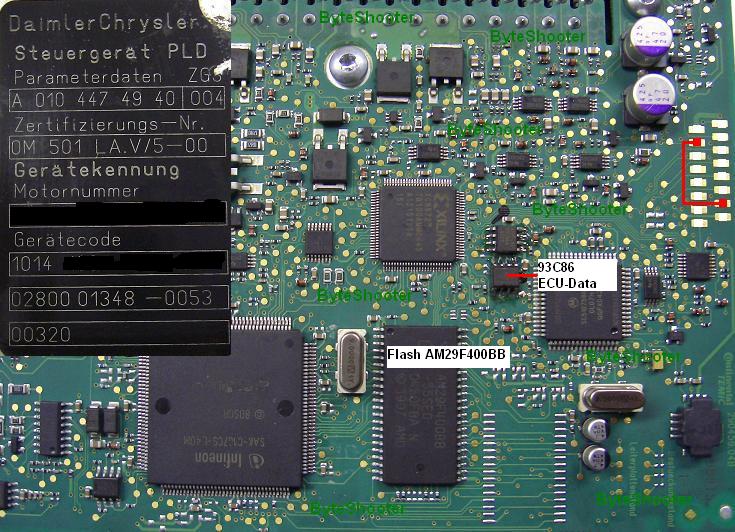

OM501LA V 5 00

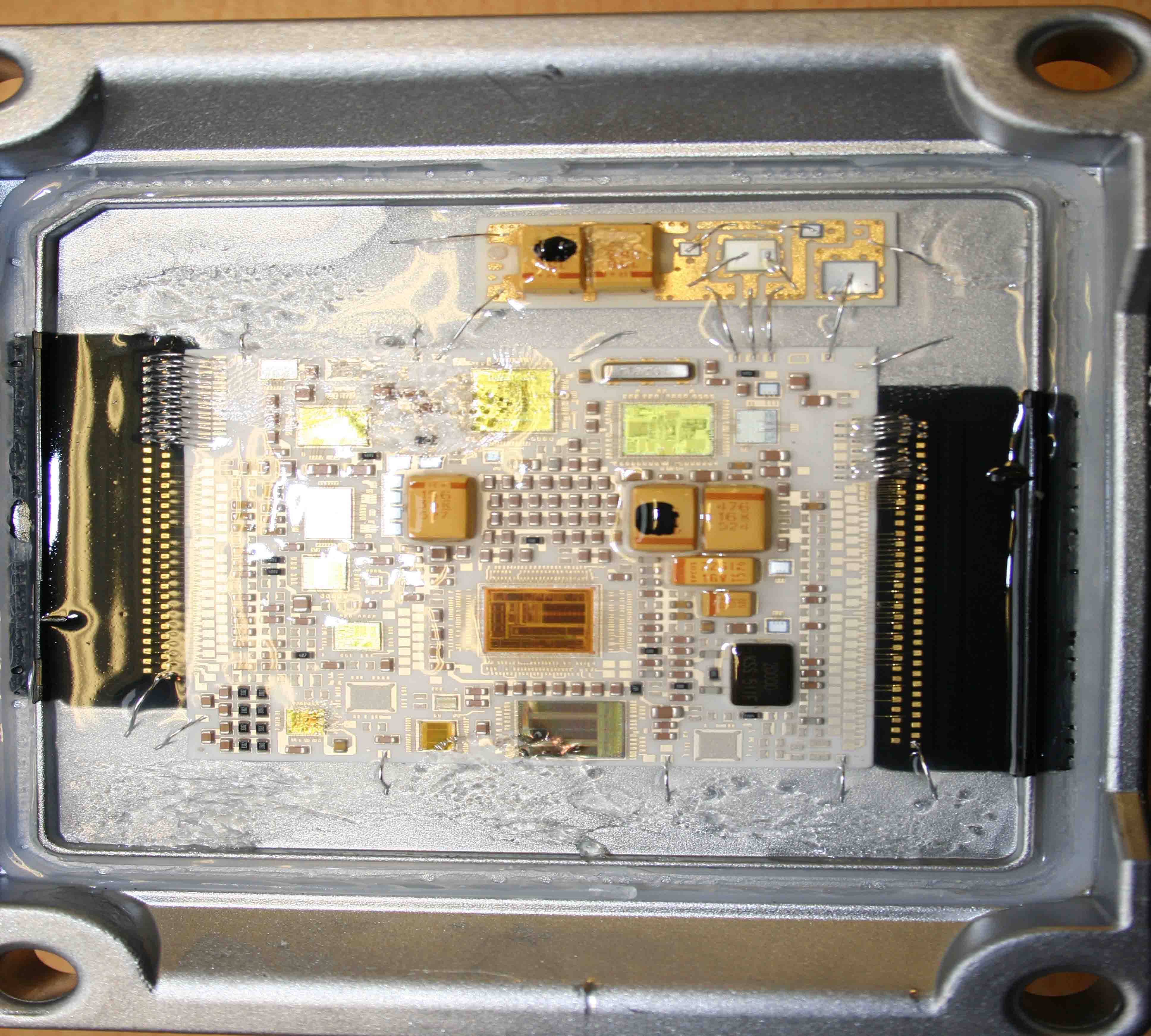

Opel Holden ME9.6

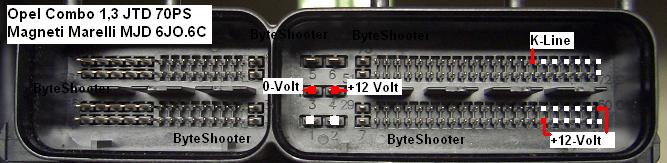

Opel Combo 1 3 JTD MJD 6JO C6

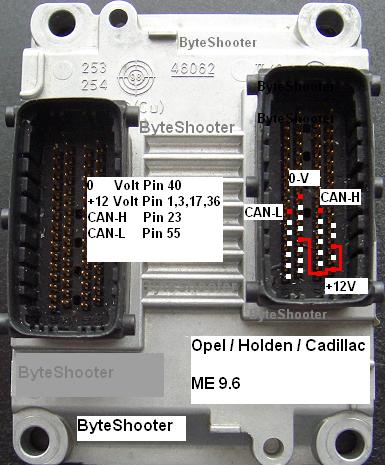

Opel Holden Cadillac ME9 6

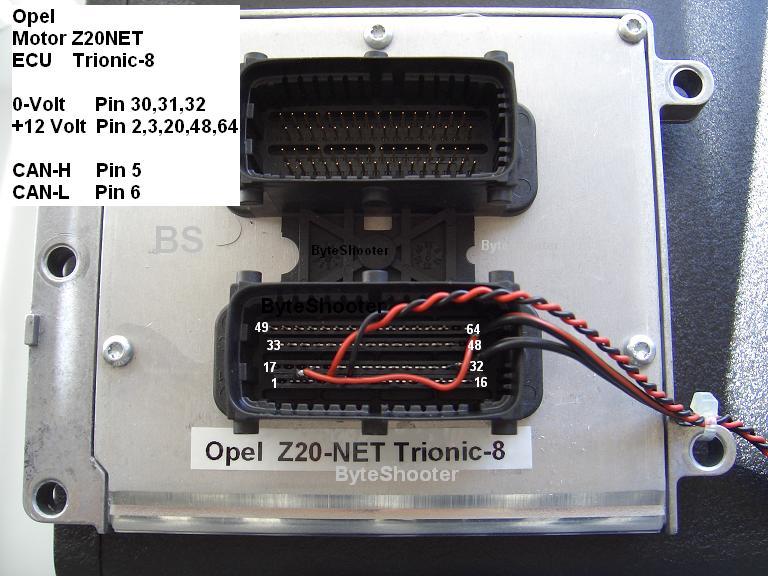

Opel Z20NET Trionic8

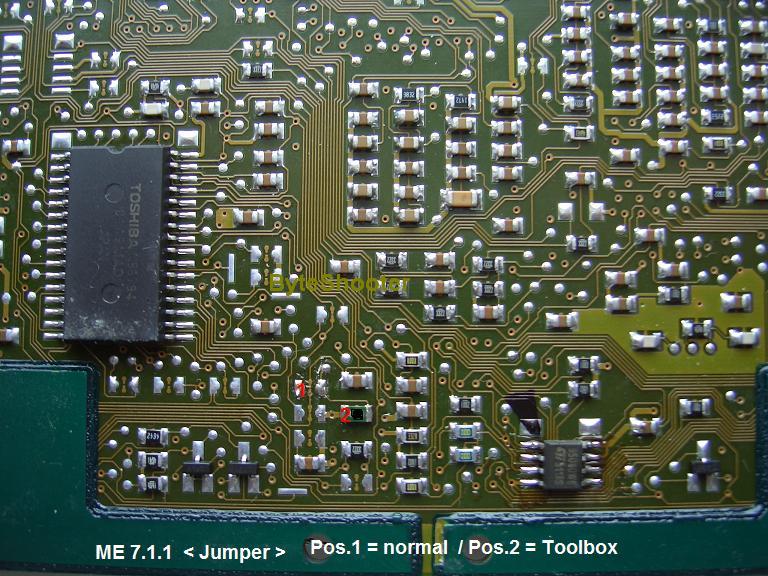

PORSCHE ME7 1 1 Jumper1
PSA IAW 6LPx1 ST10F280
Open PDF
PSA IAW 6LPx2 6KPB ST10F280 ST10F296
Open PDF
PSA IAW6LP
Peugeot Citroen EDC16C34

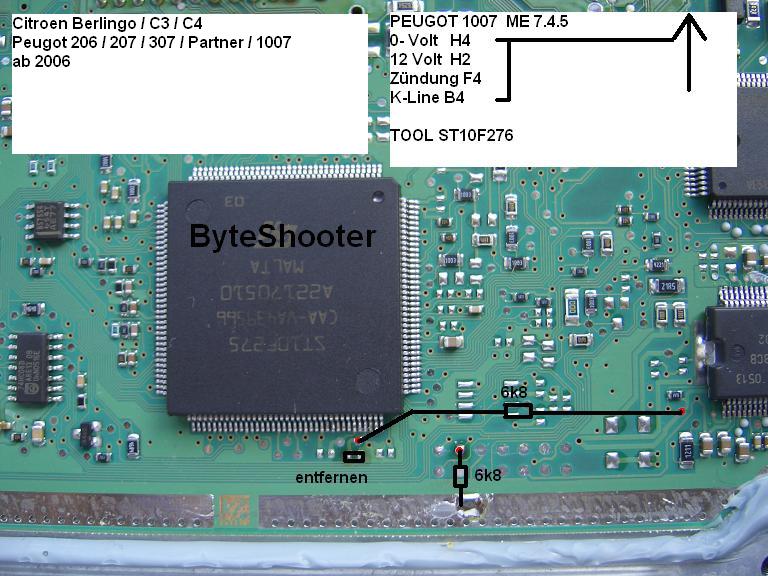

Peugot 1007 ME7 4 5

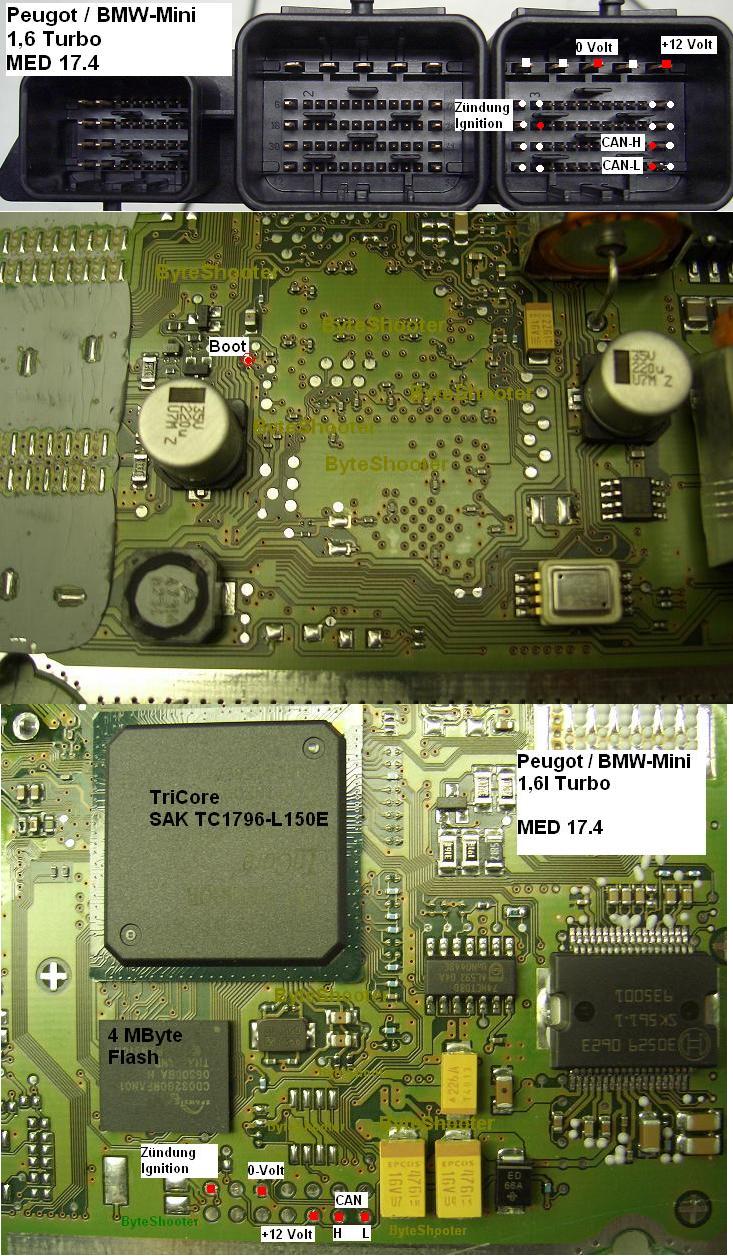

Peugot MED17 4

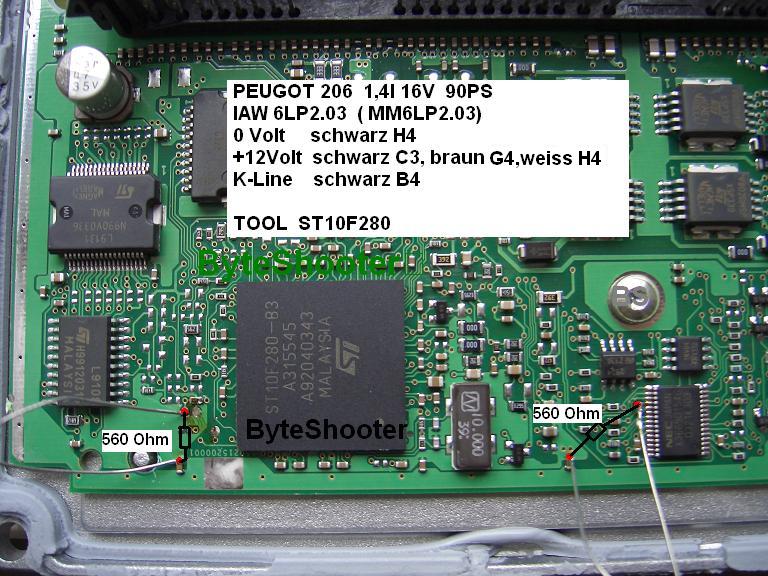

Peugot 206 MM6LP2 03

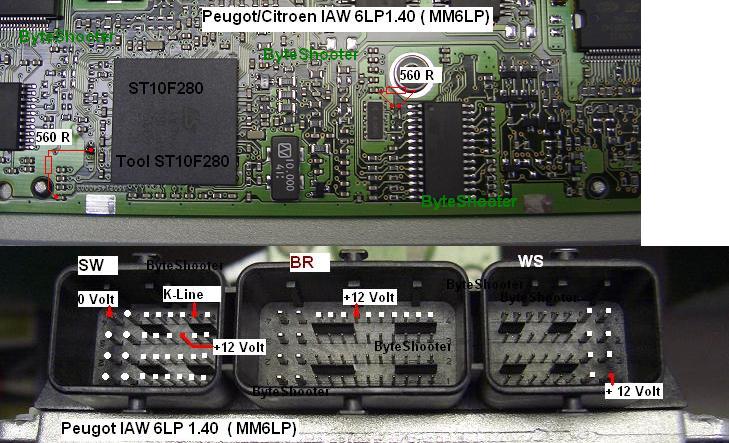

Peugot Citroen IAW6LP1 40 MM6LP

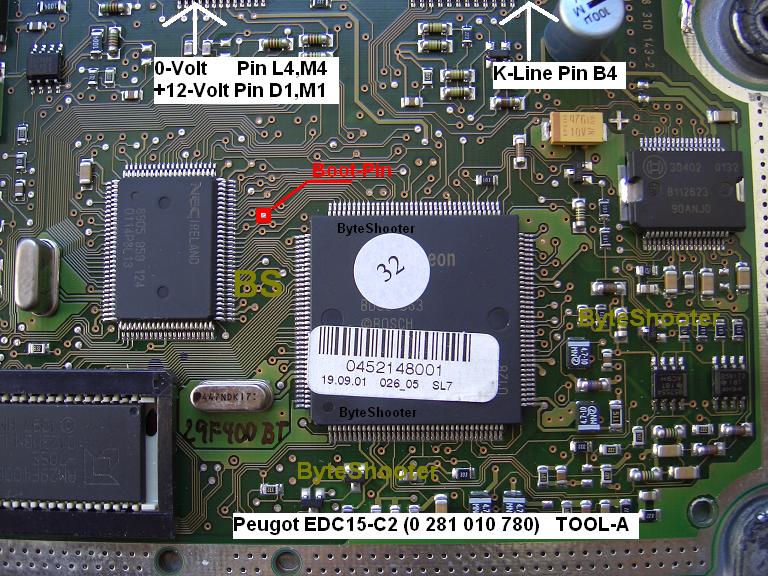

Peugot EDC15 C2

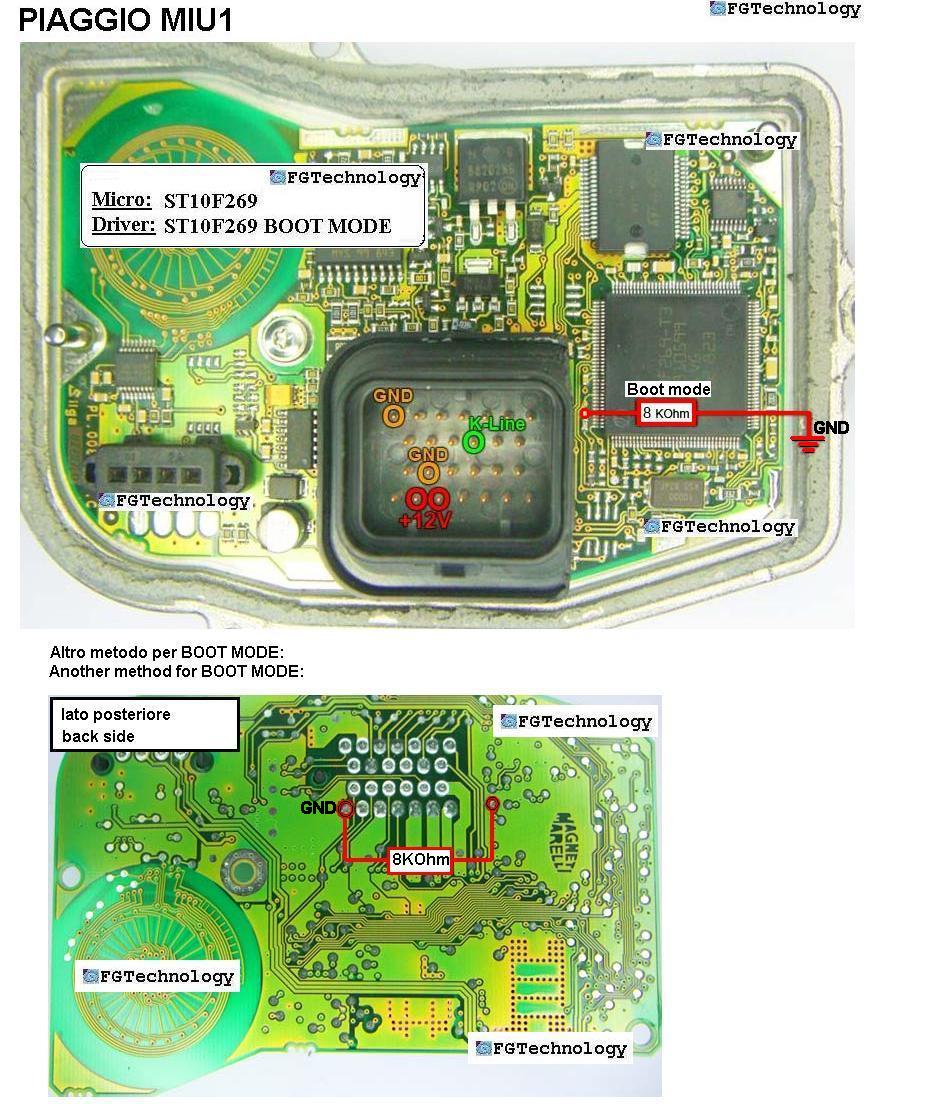

Piaggio MIU ST10F269
Porsche 997

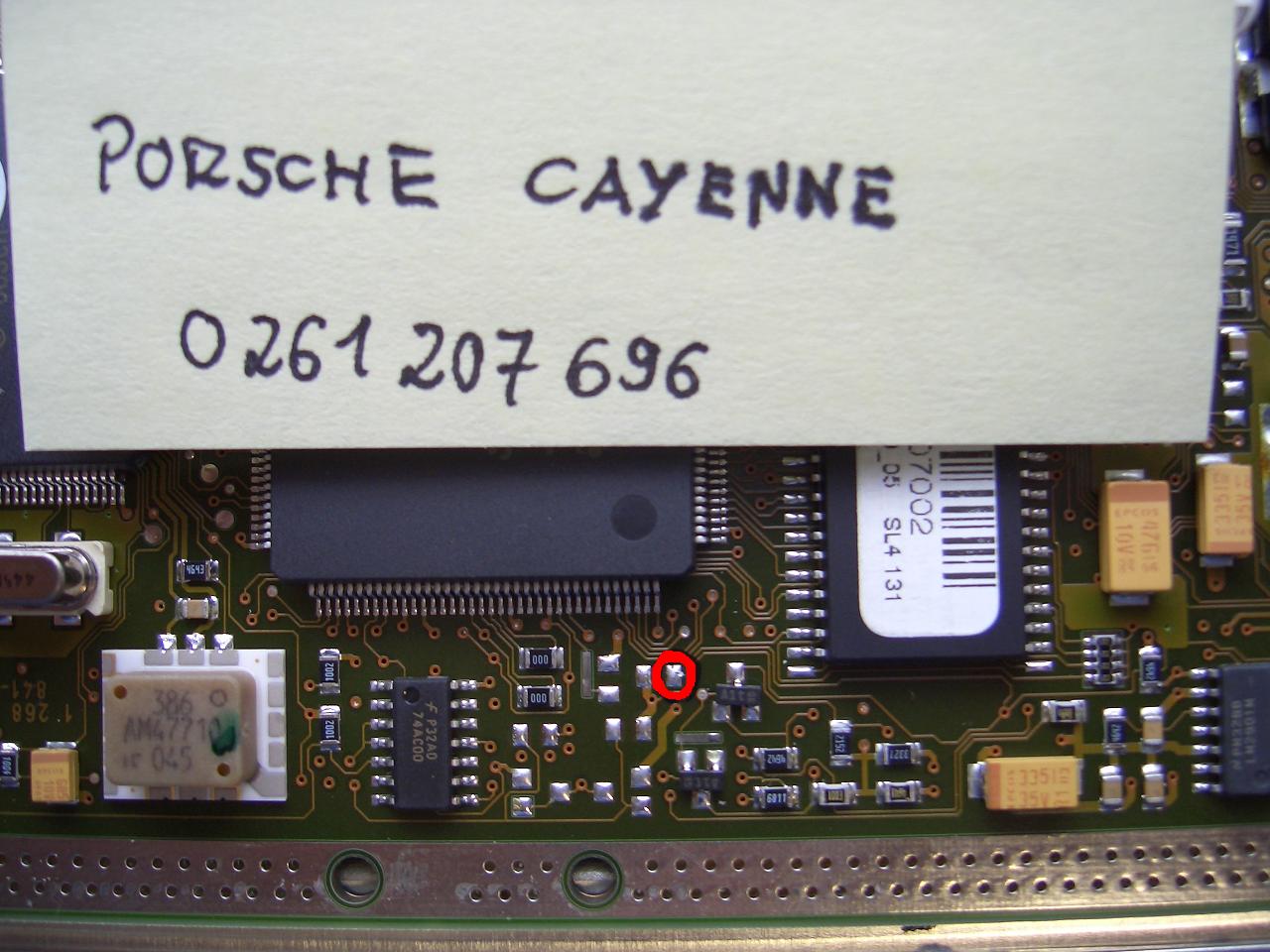

Porsche Cayenne

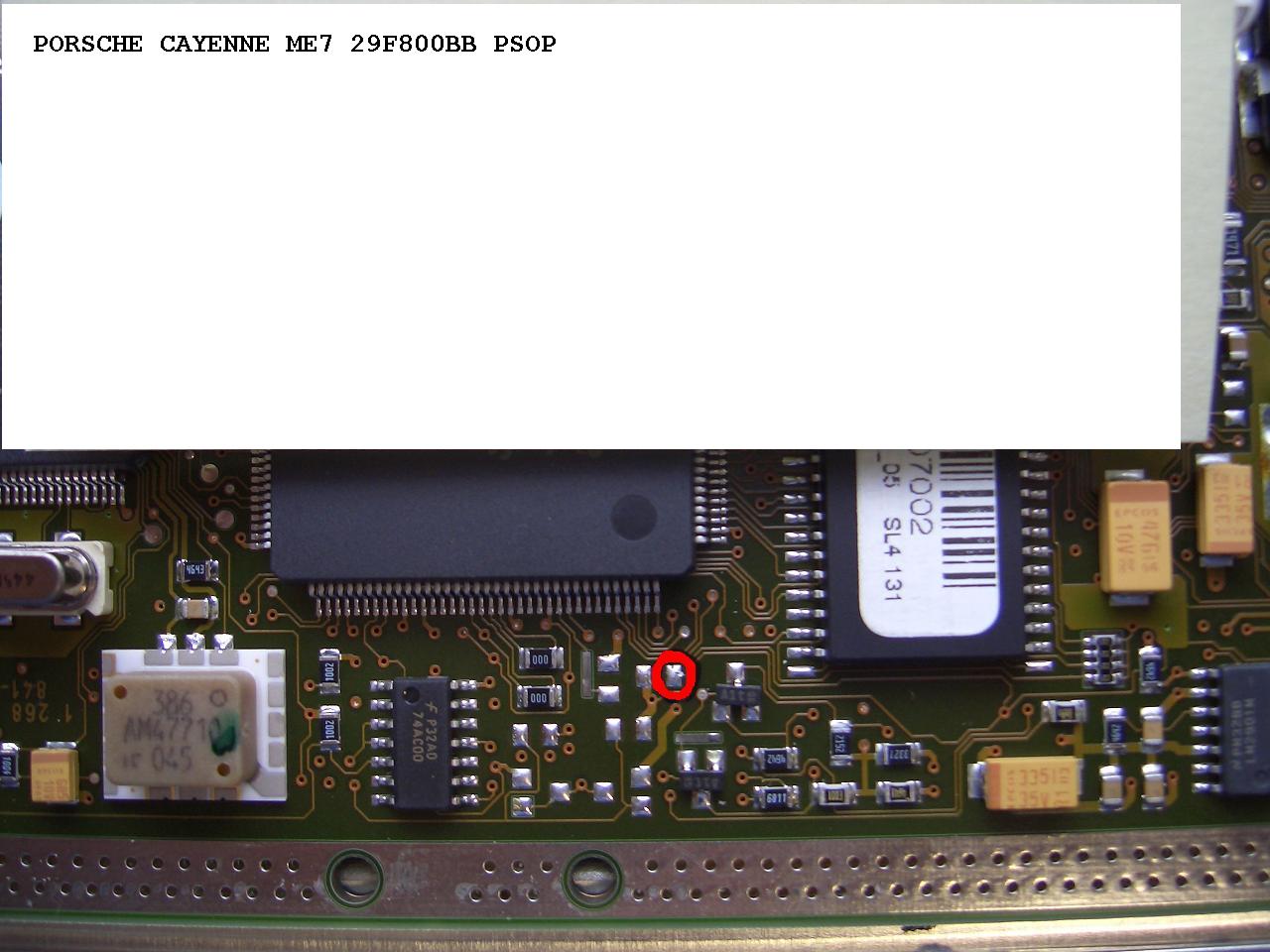

Porsche Cayenne BootStrap

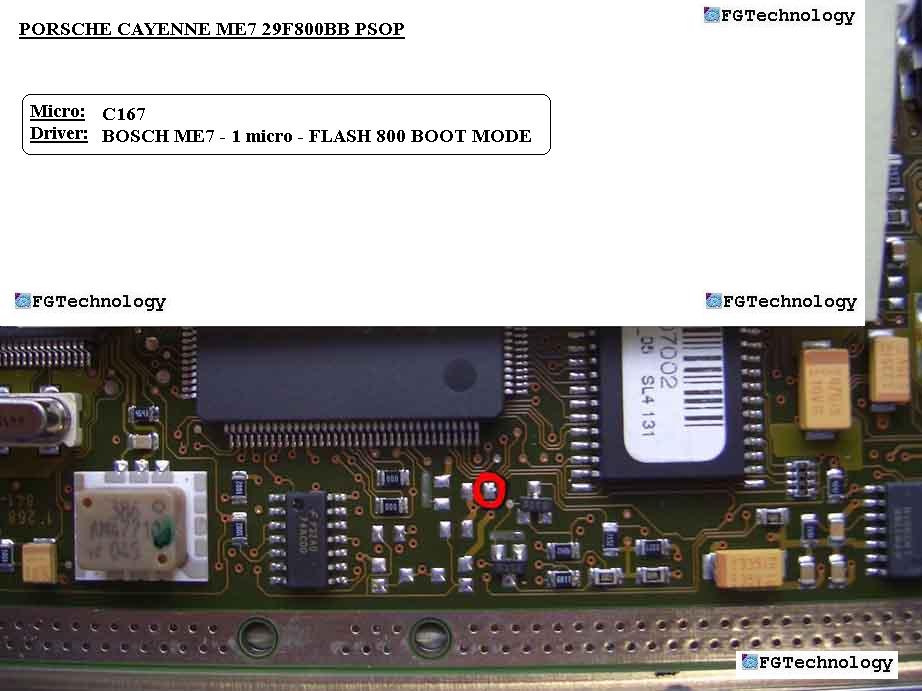

Porsche Cayenne BootStrap C167

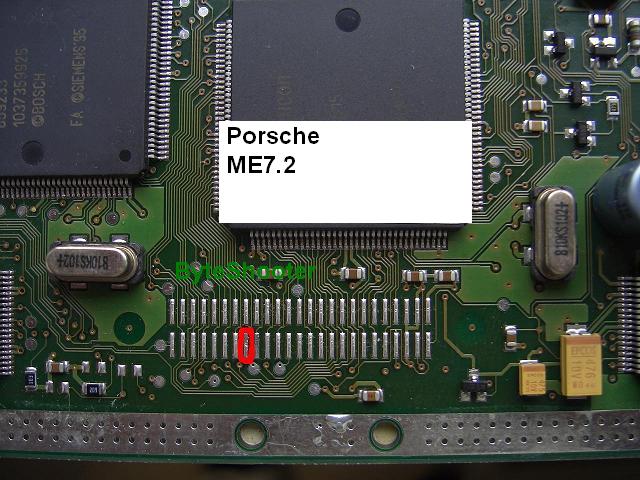

Porsche ME7 2

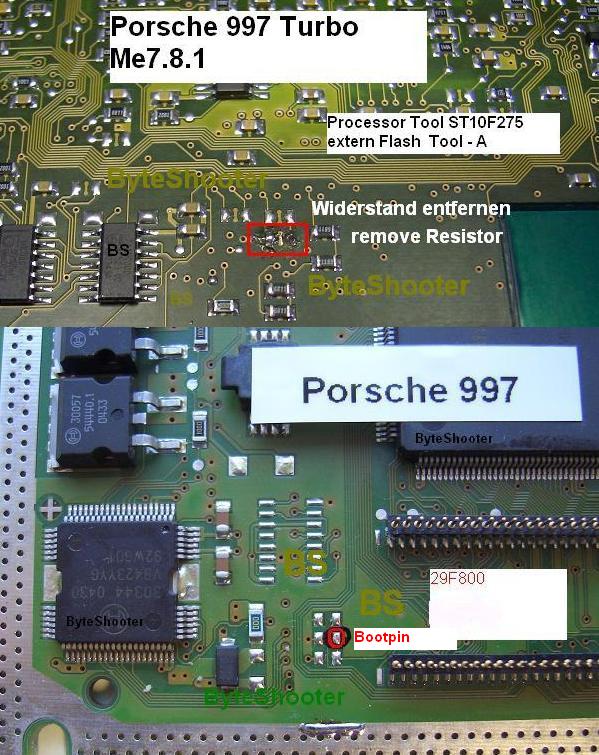

Porsche 997 T

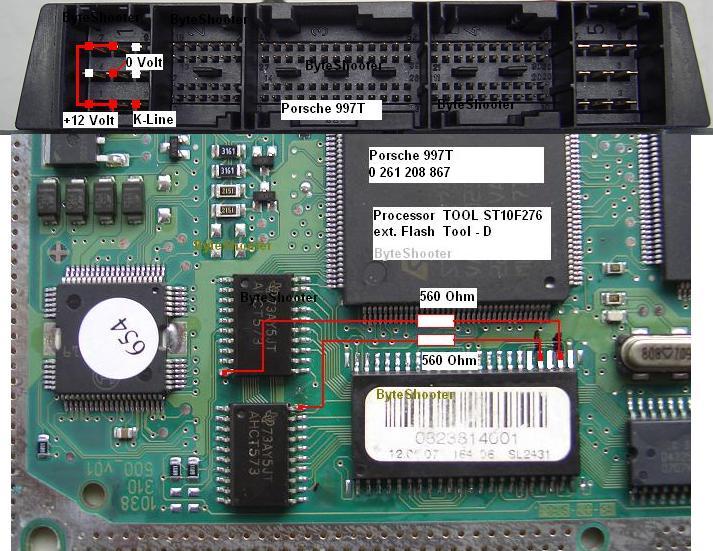

Porsche 997T 0261 208 867

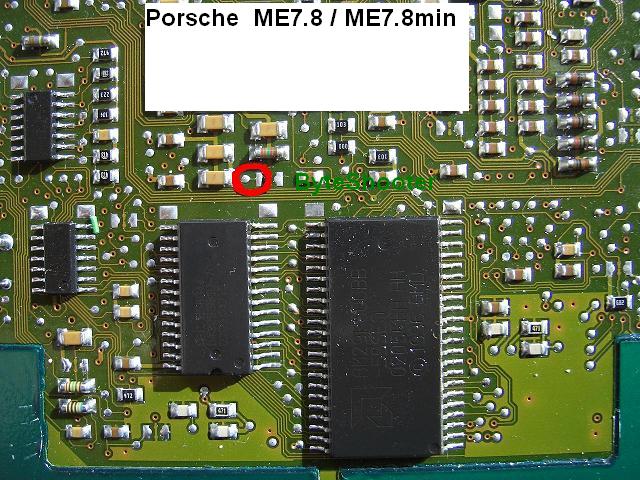

Porsche ME7.8 ME7.8min
Porsche ME7 8 ME7 8min

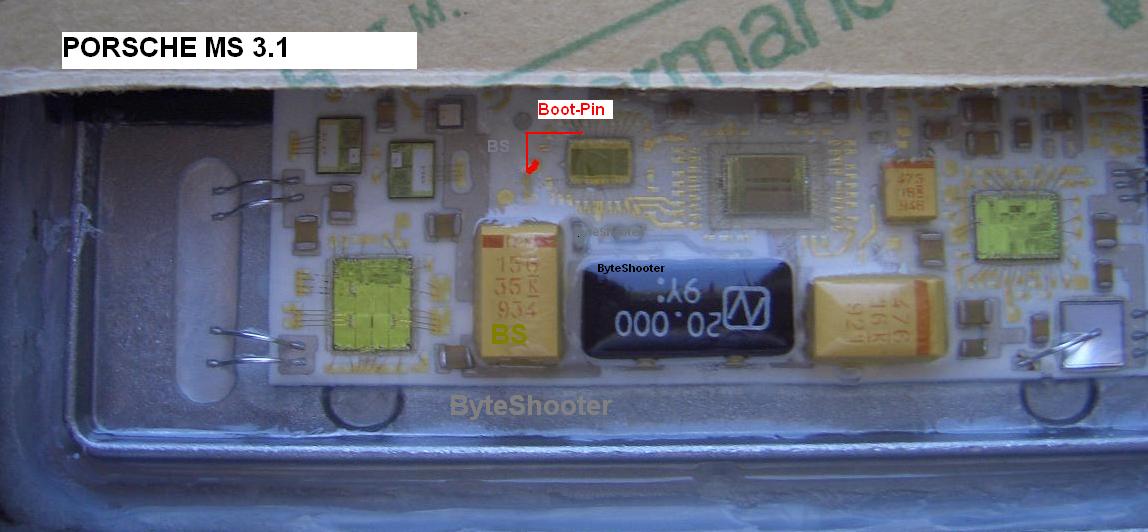

Porsche MS 3 1

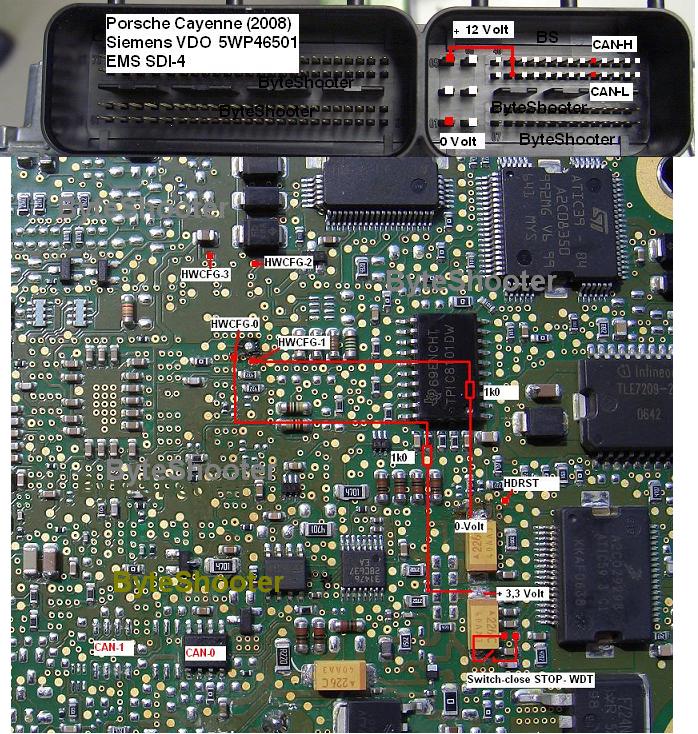

Porsche SDI 4

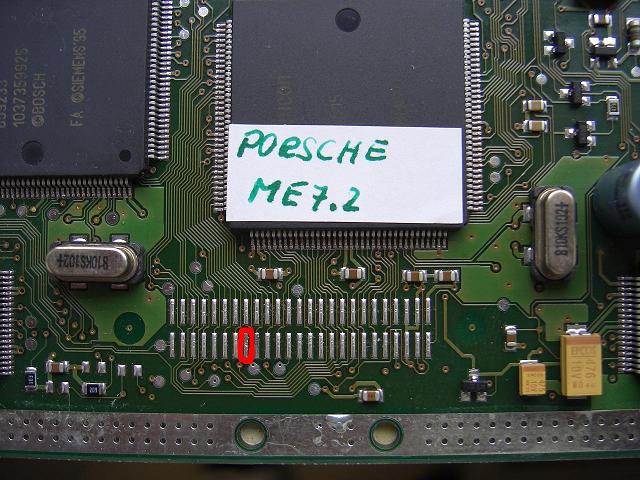

Prosche ME7.2

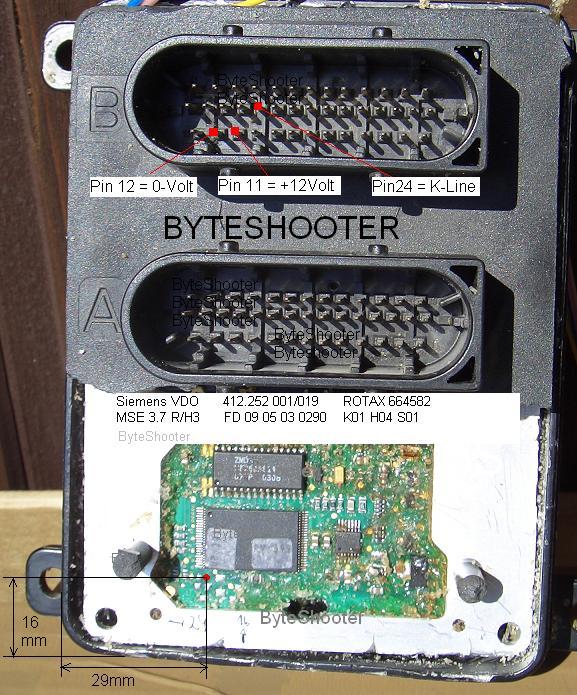

ROTAX MSE 3 7 H3

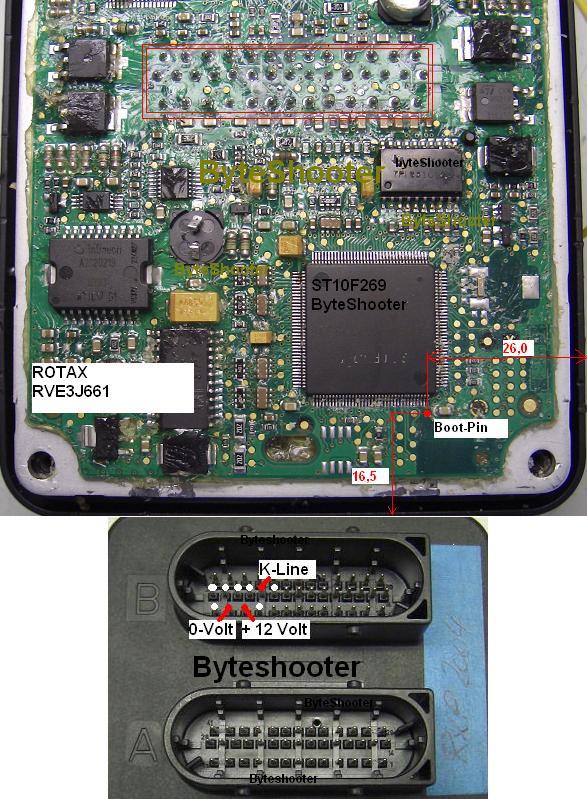

ROTAX RVE3J661

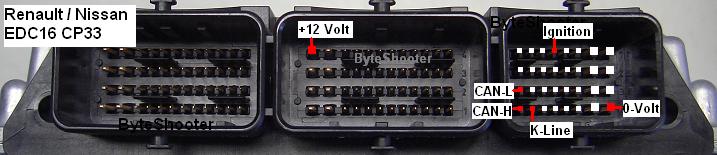

Renault Nissan EDC16CP33
Renault Nissan EDC16CP331

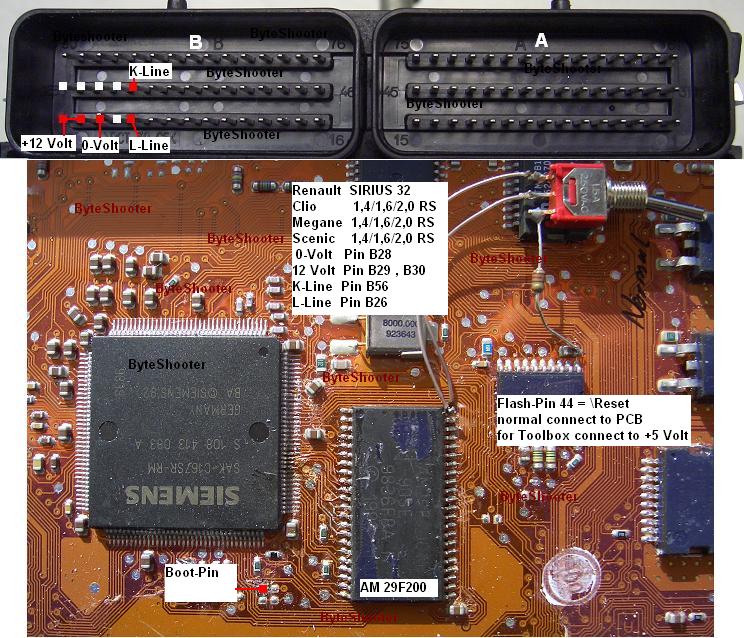

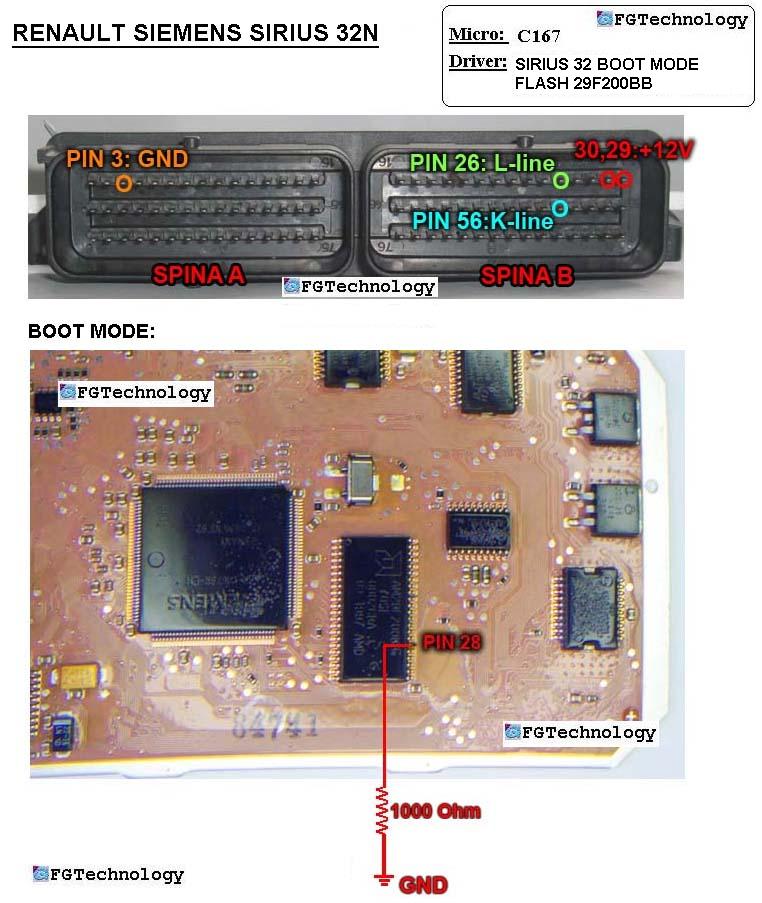

Renault Siemens Sirius 32N
Renault Sirius 32

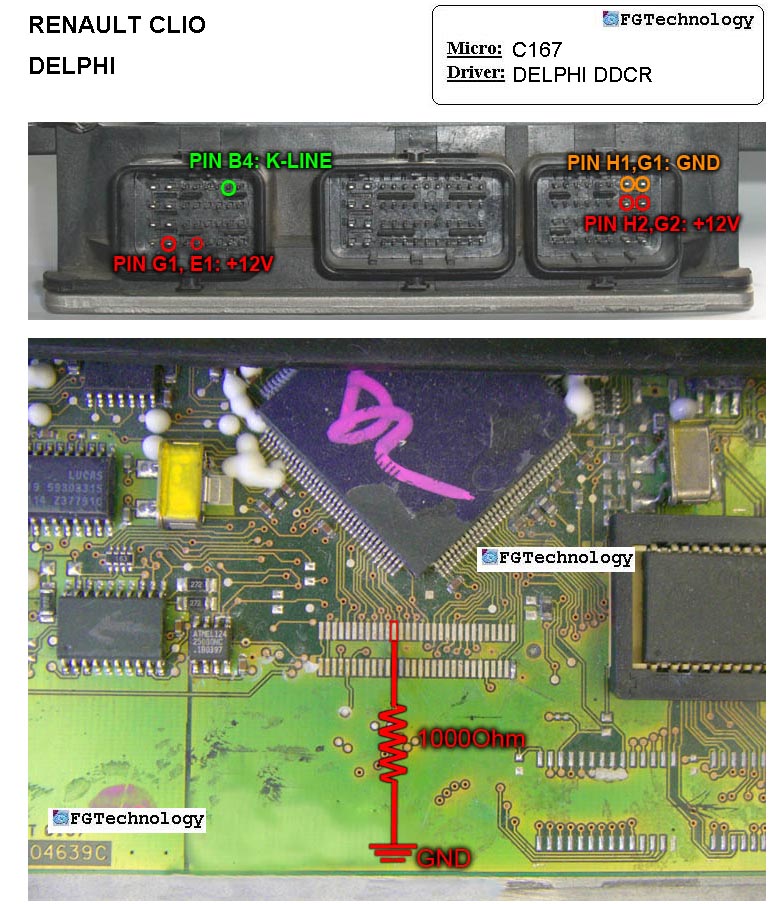

Renault Clio Delphi C167

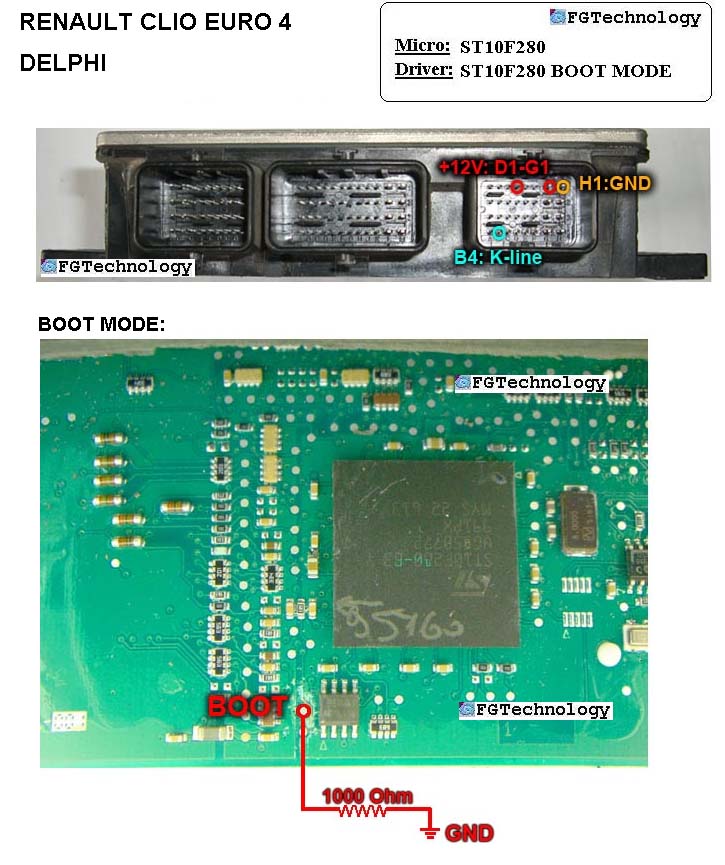

Renault Clio ST10F280

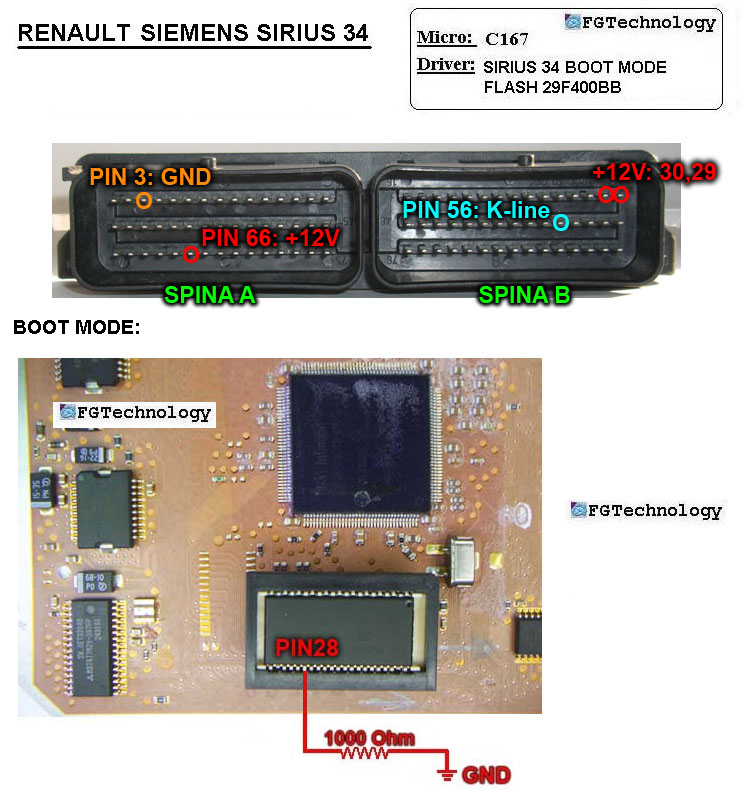

Renault Sirius34

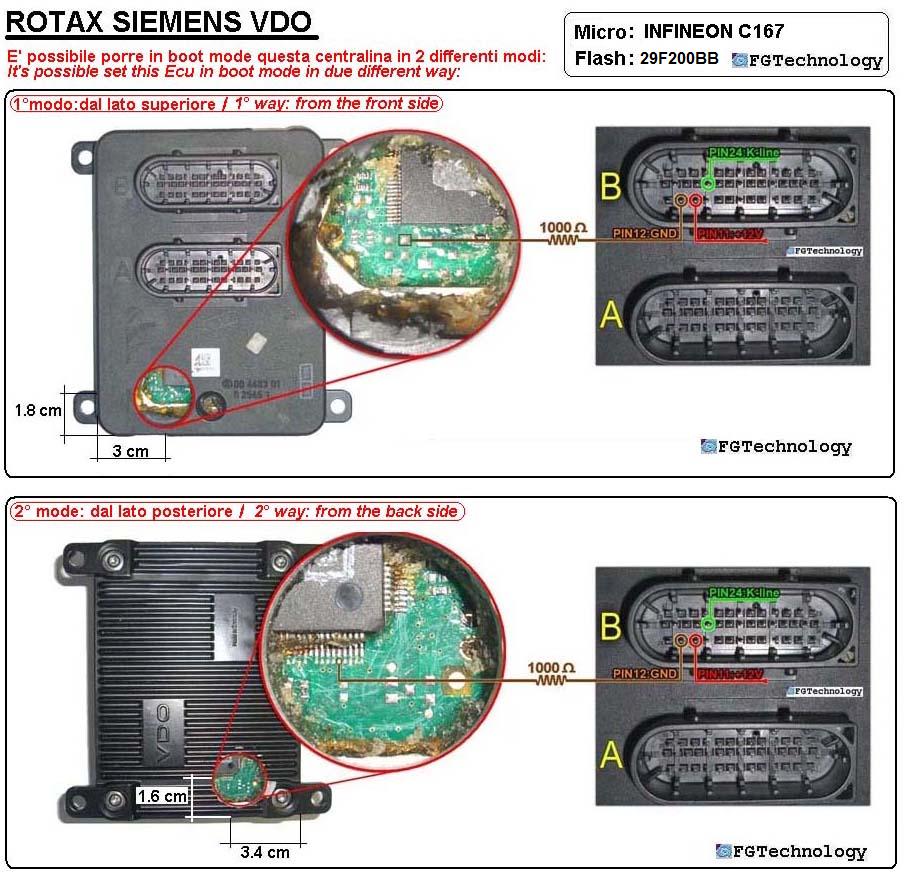

Rotax Siemens C167
SEAT Arosa ME7 5 10

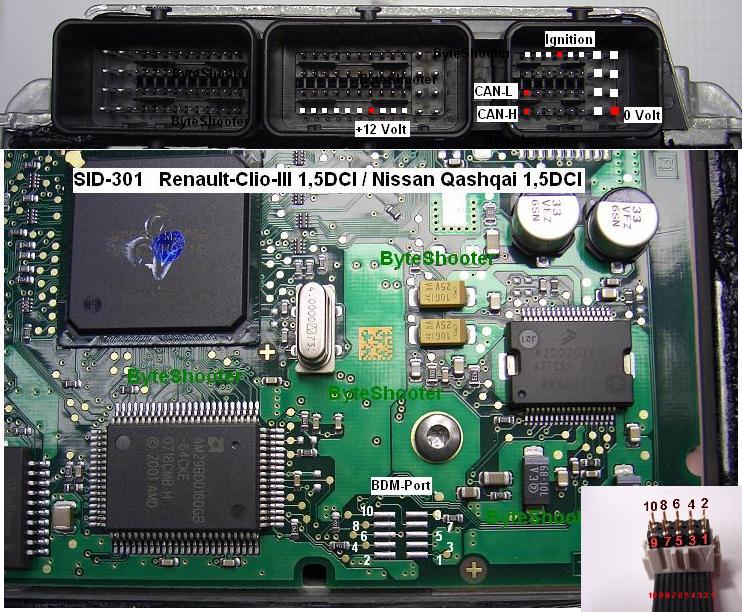

SID 301 Renault Nissan 1 5DCI1
SID801A

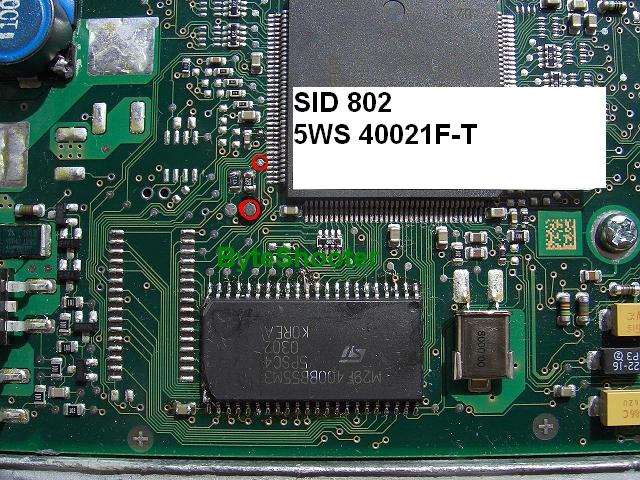

SID802 5WS40021F T 2

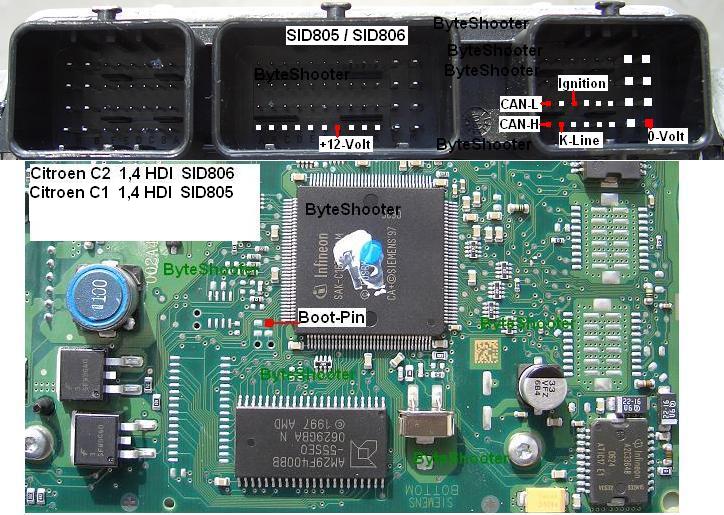

SID805 SID806

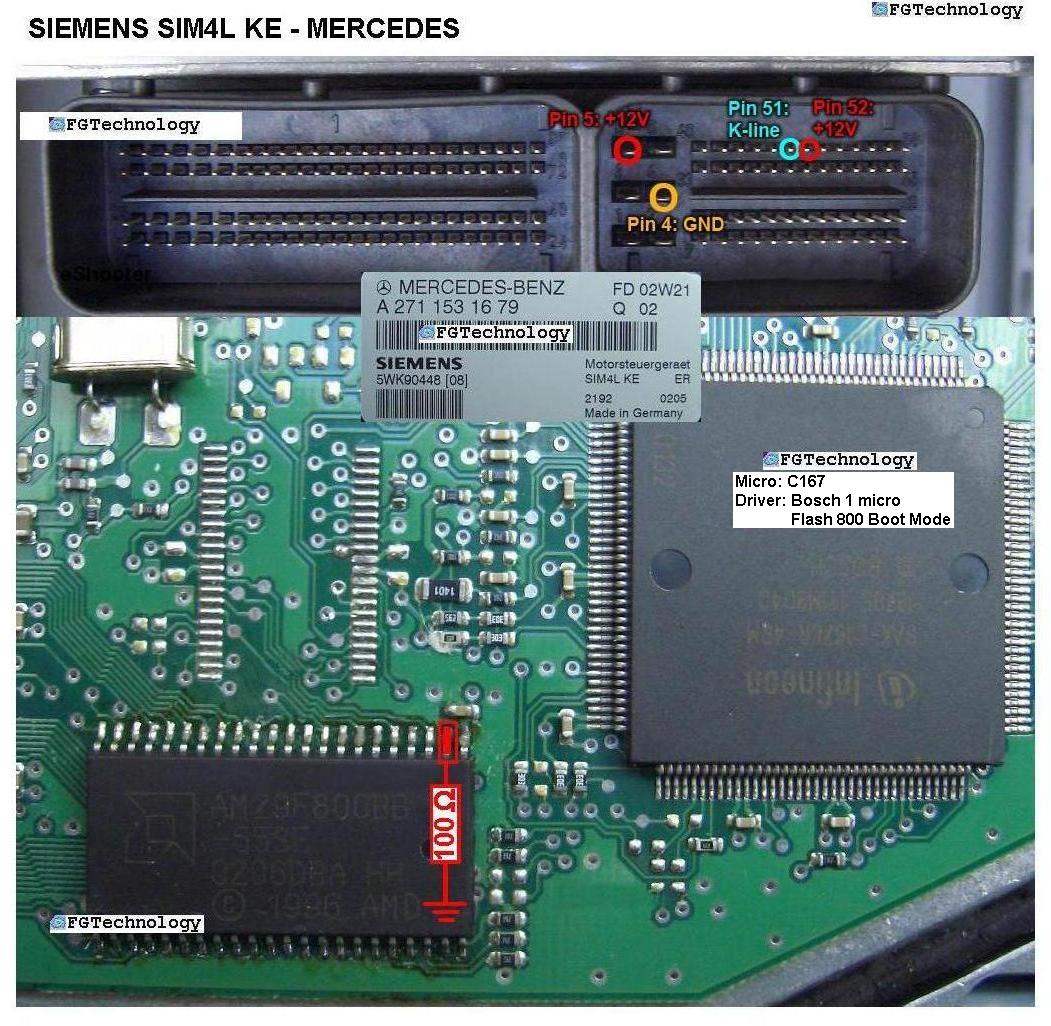

SIEMENS SIM4L KE MERCEDES C167

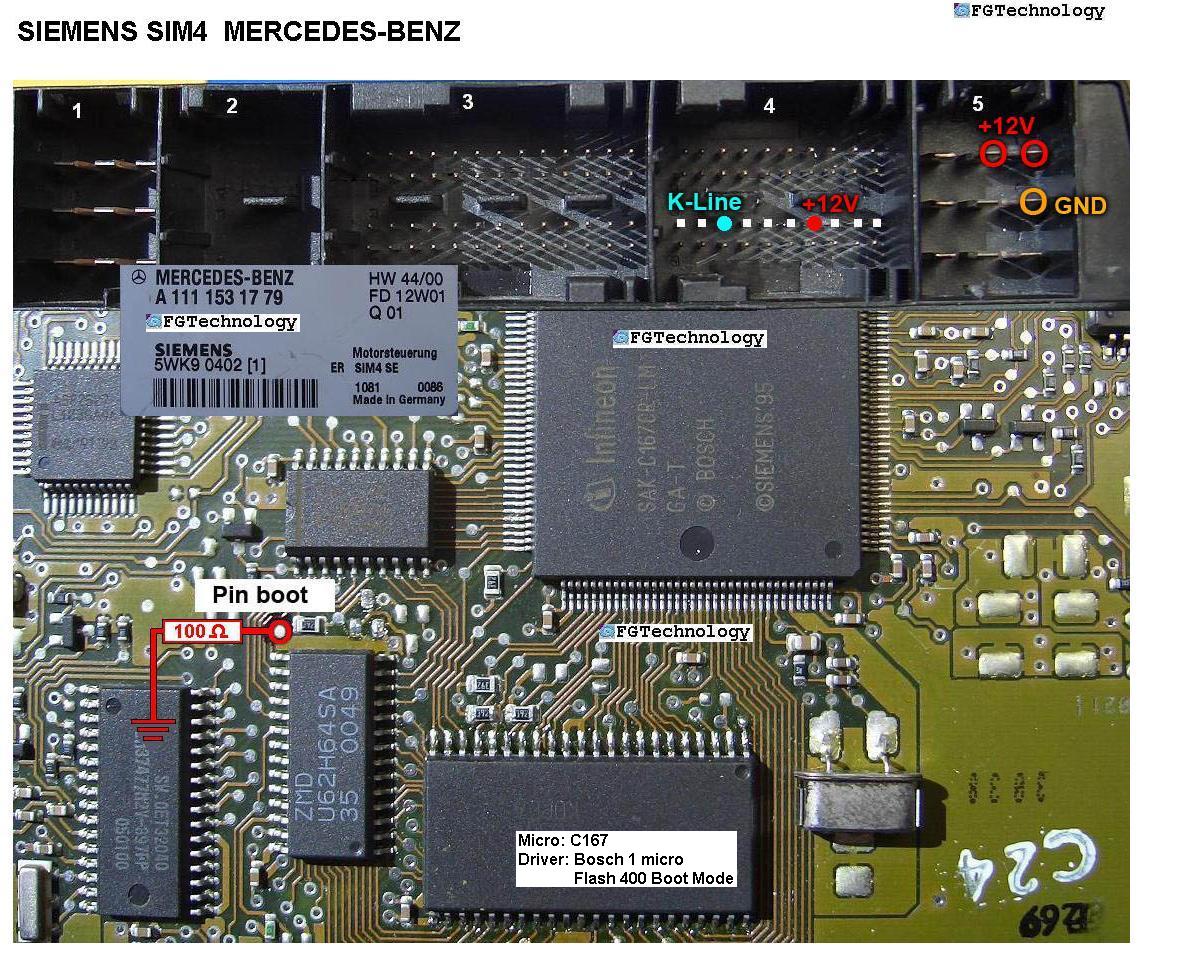

SIEMENS SIM4 MERCEDES C167

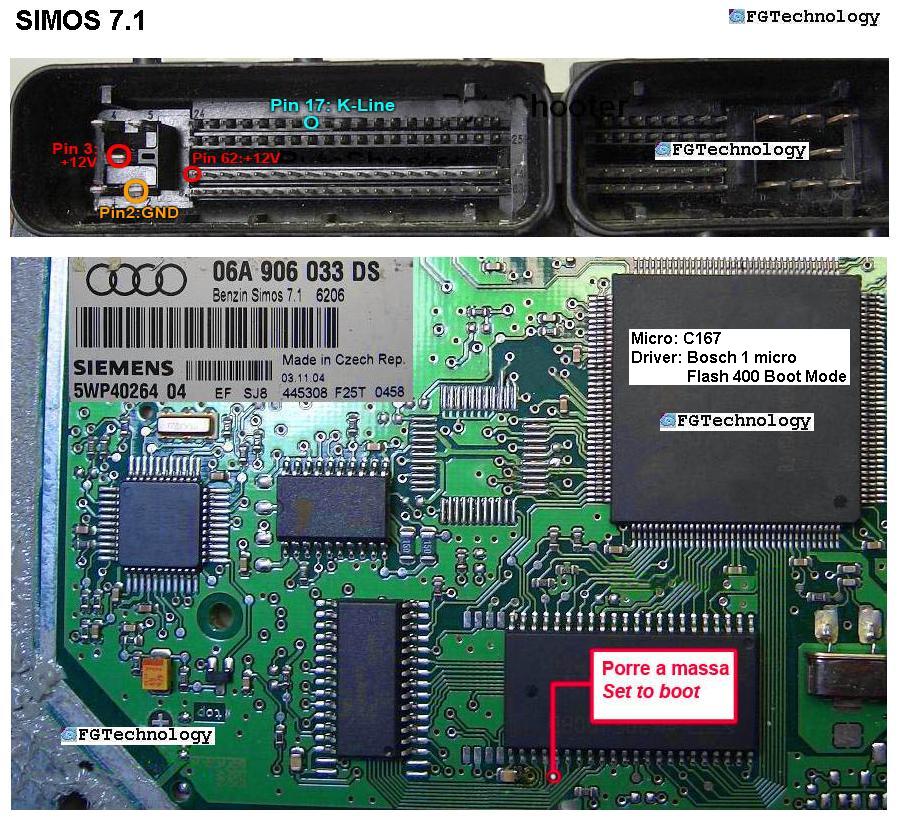

SIEMENS SIMOS 7 1 C167

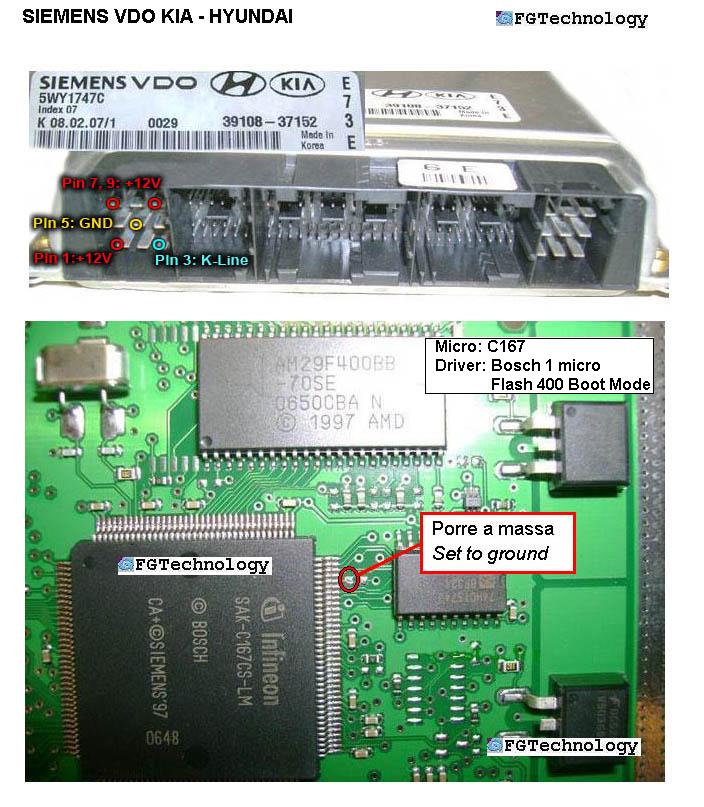

SIEMENS VDO KIA HYUNDAI C167

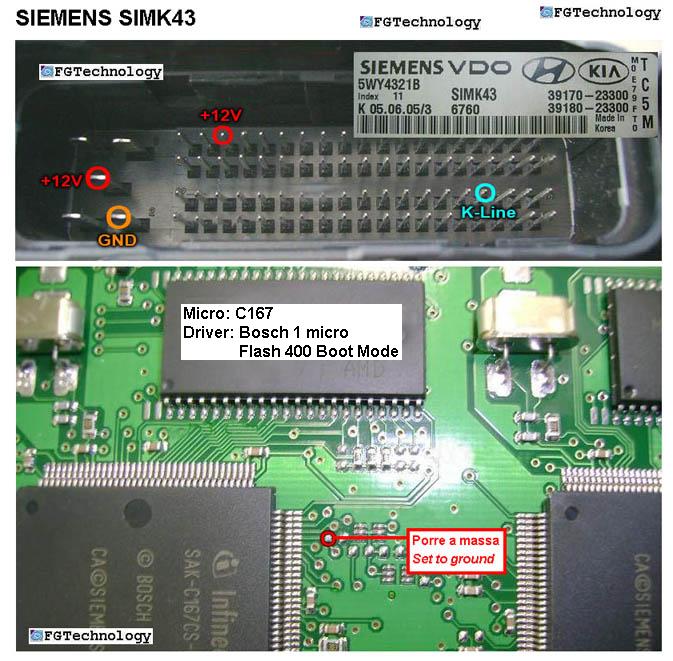

SIEMENS VDO SIMK43 C167
SIM4 LE 5WK9 391

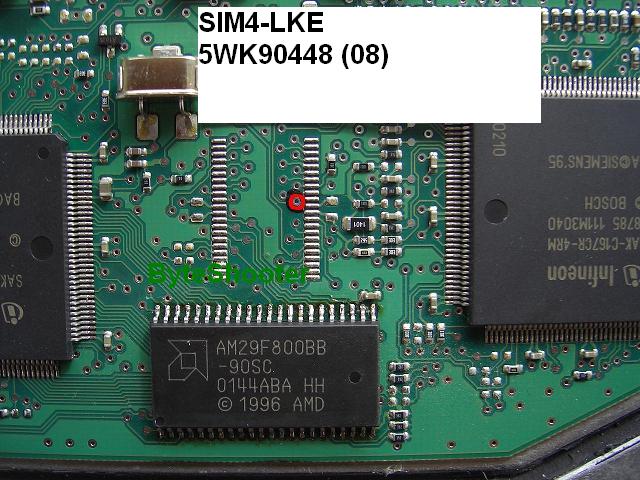

SIM4LKE 5WK90448 2

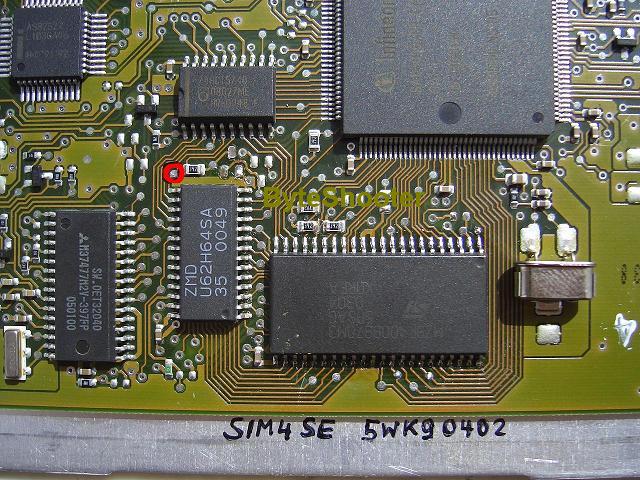

SIM4SE 5WK90402 2

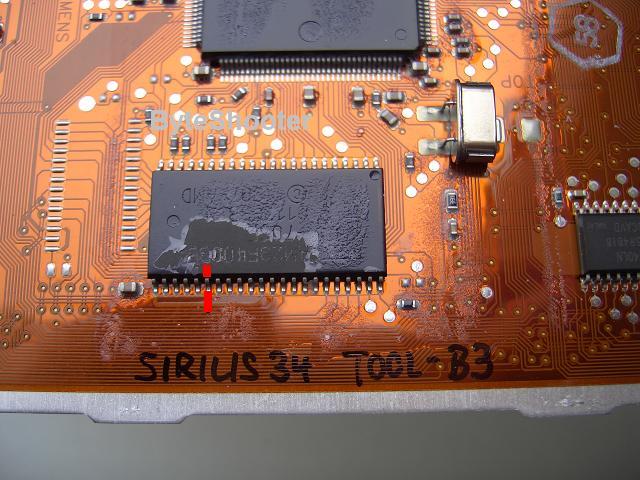

SIRIUS 35
SMART MEG1 2

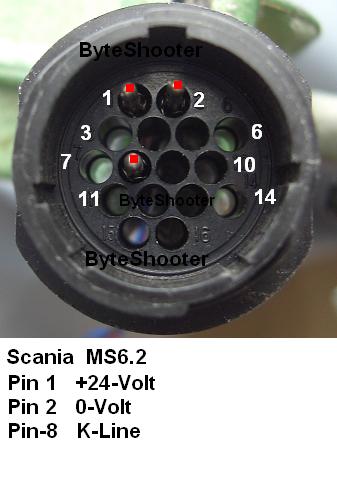

Scania MS6 2 Diagnose

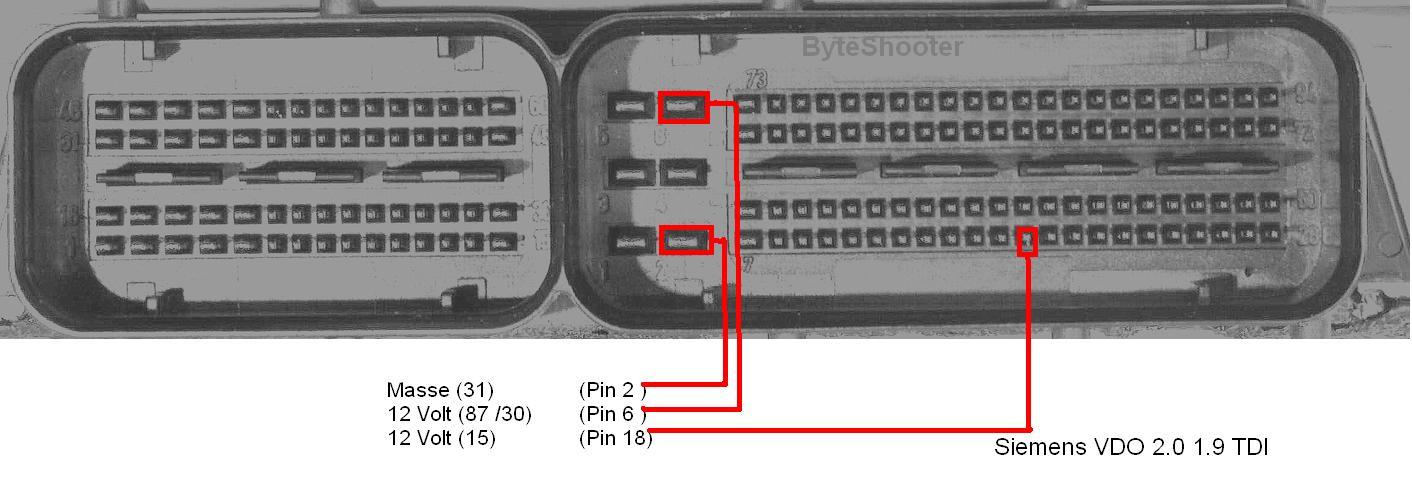

Siemens VDO 1,9l 2,0l TDI
Siemens VDO 1 9l 2 0l TDI

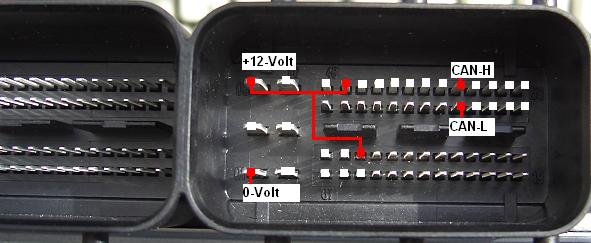

Siemens EMS SDI 4

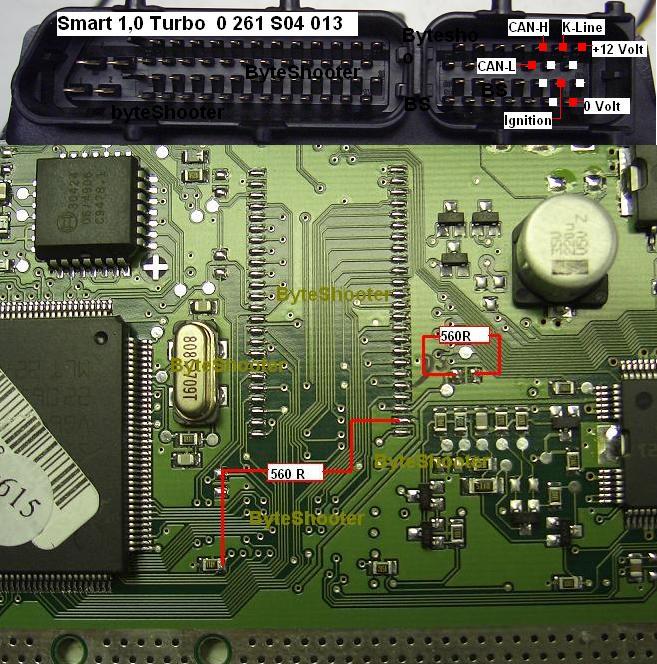

Smart 1 0 Turbo 0261 S04 013

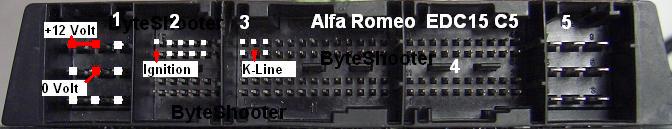

Stecker Alfa EDC15C5

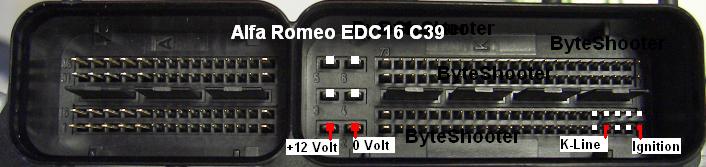

Stecker Alfa EDC16C39

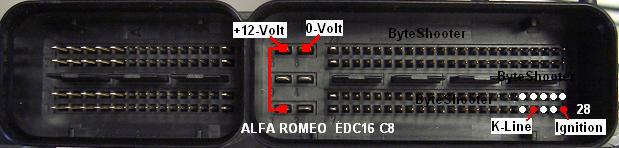

Stecker Alfa EDC16C8

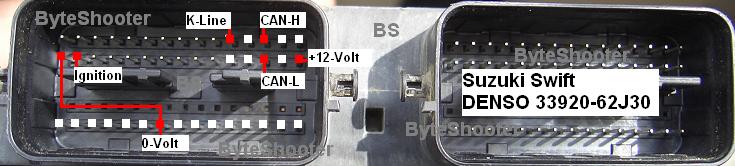

Suzuki Swift DENSO 33920 62J3

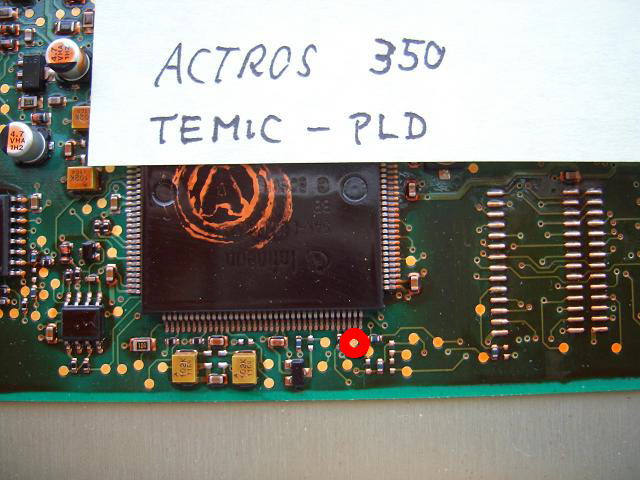

TEMIC PLD CPU
TEMIC PLD Stecker

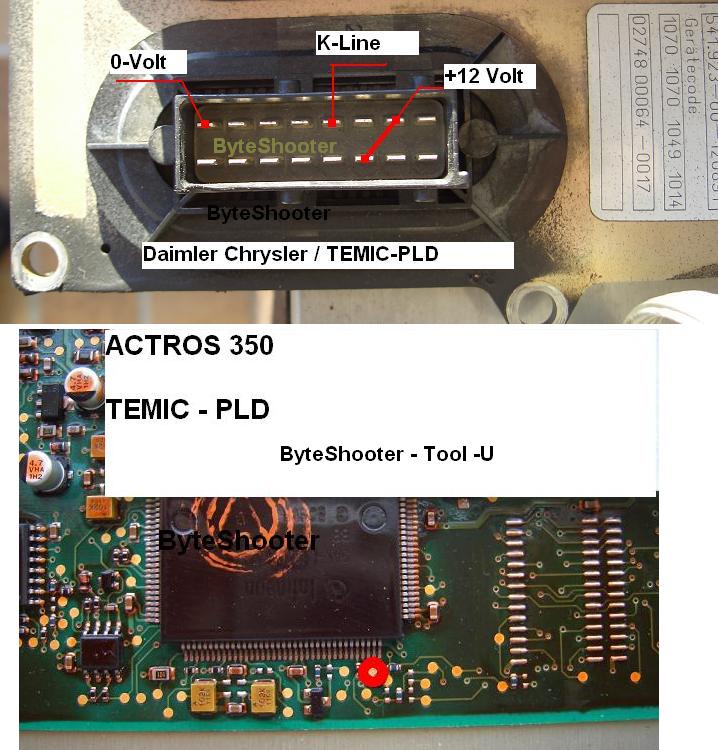

TEMIC PLD

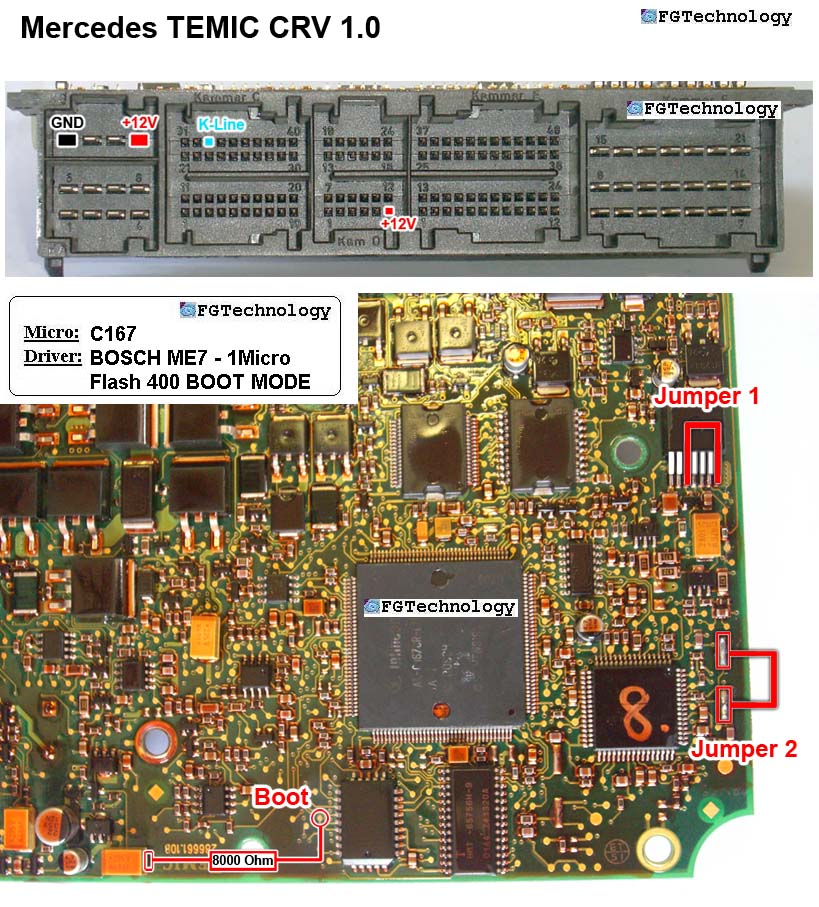

TEMIC CRV 1.0 MERCEDES C167

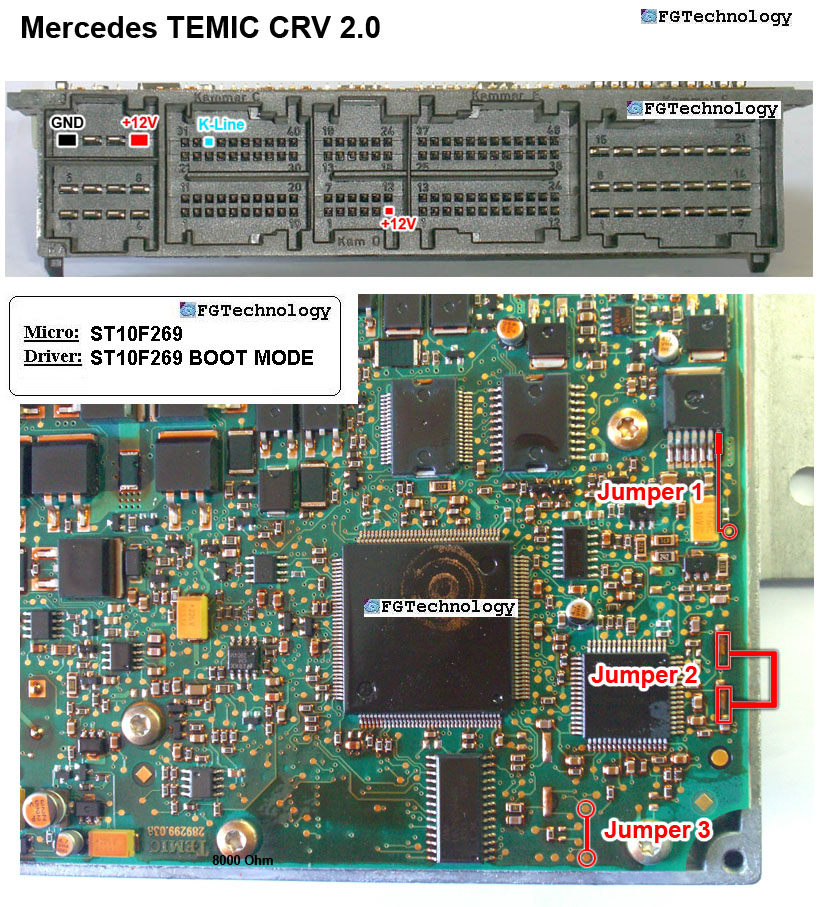

TEMIC CRV 2.0 MERCEDES ST10F269
TEMIC ISTRUCTION CONNECTOR
Open PDF

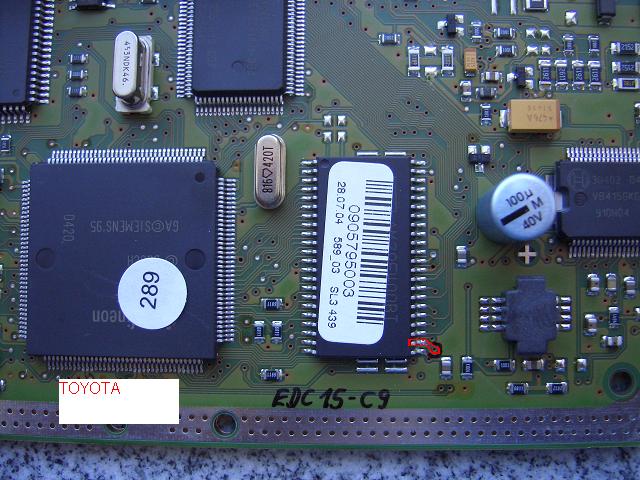

TOYOTA EDC15C9
Temic PLD BS

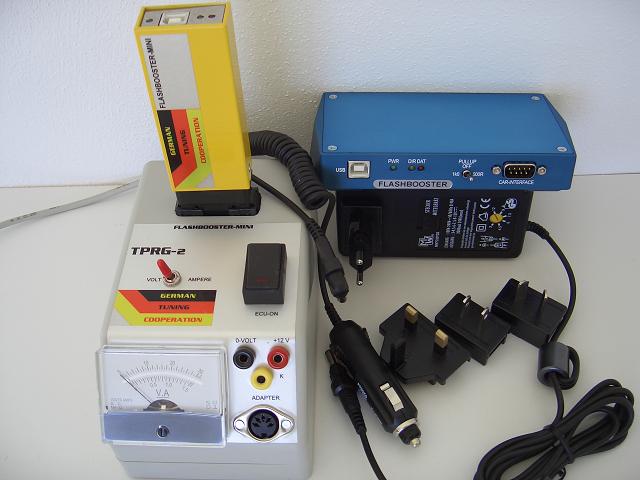

Tischprog

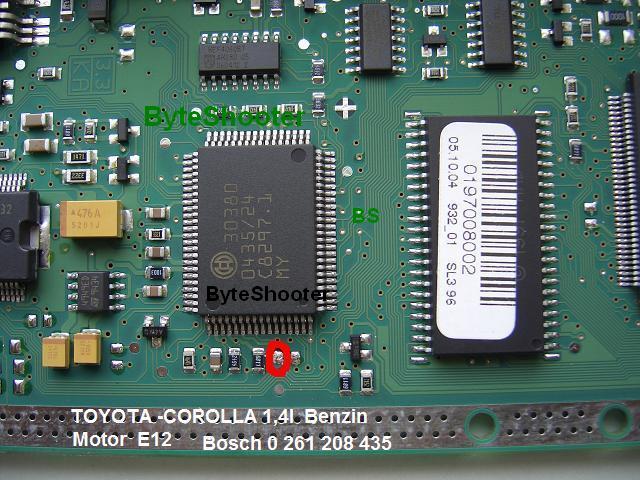

Toyota Corolla E12 2

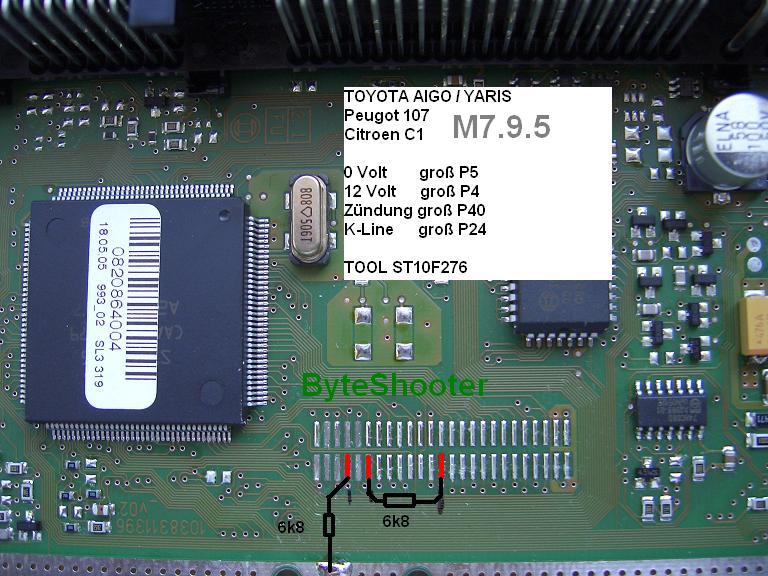

Toyota Yaris M7 9 5

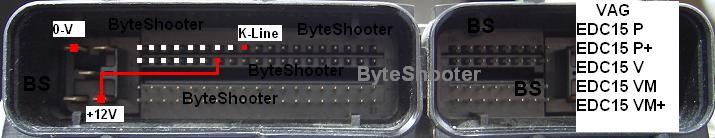

VAG EDC15 Xxx Stecker

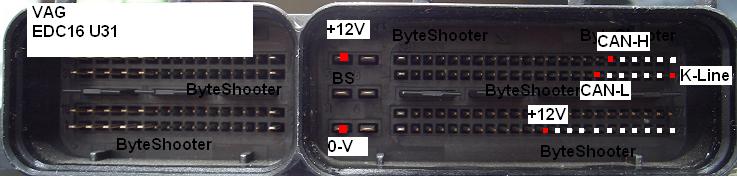

VAG EDC16 U31

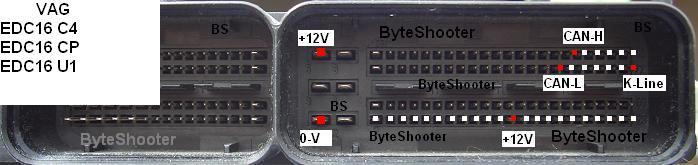

VAG EDC16 C4 CP U1

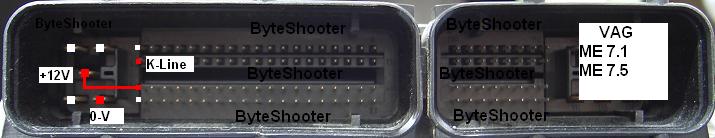

VAG ME7 1 ME7 5 Stecker

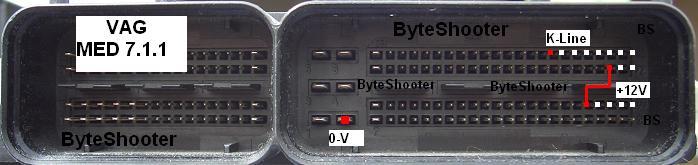

VAG MED7 1 1 Stecker
VAG MED9 1 MED9 5 10

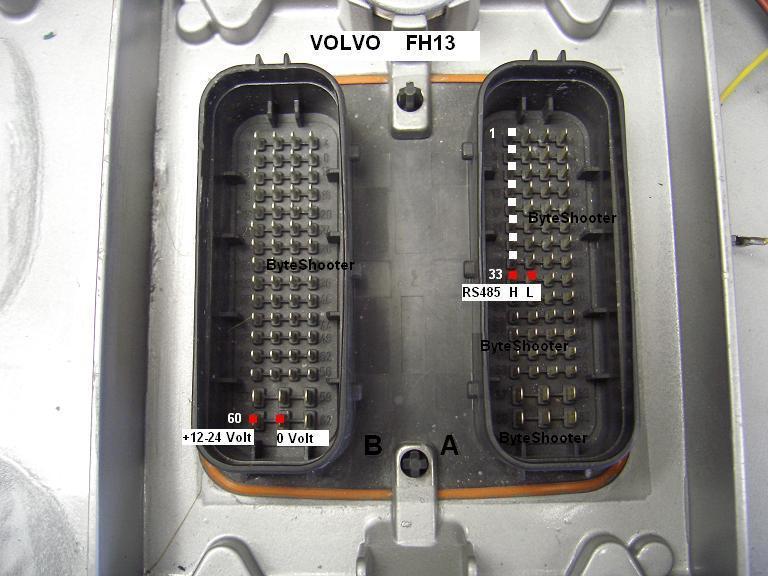

VOLVO FH13

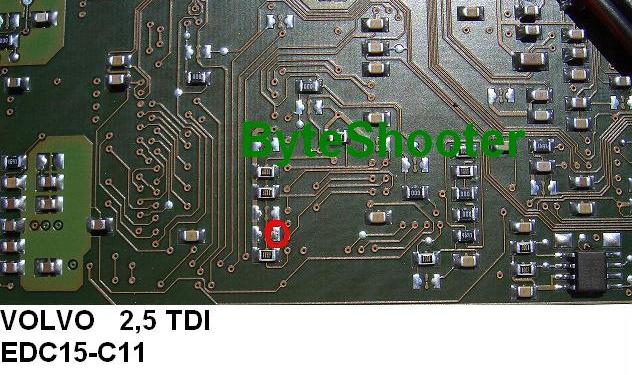

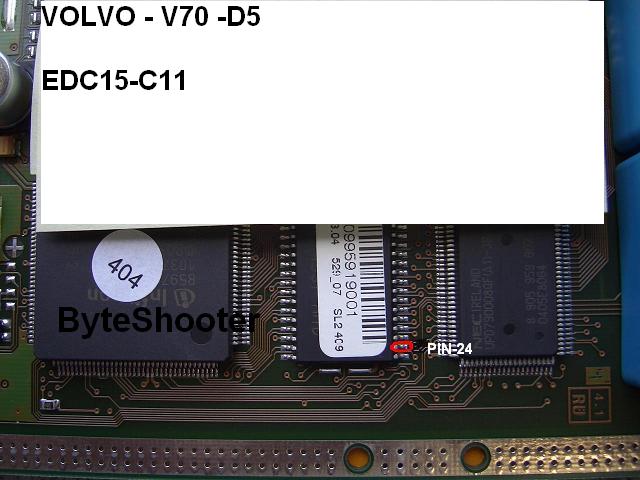

VOLVO V70 D5 EDC15C11 2
VOLVO EDC15C11 2

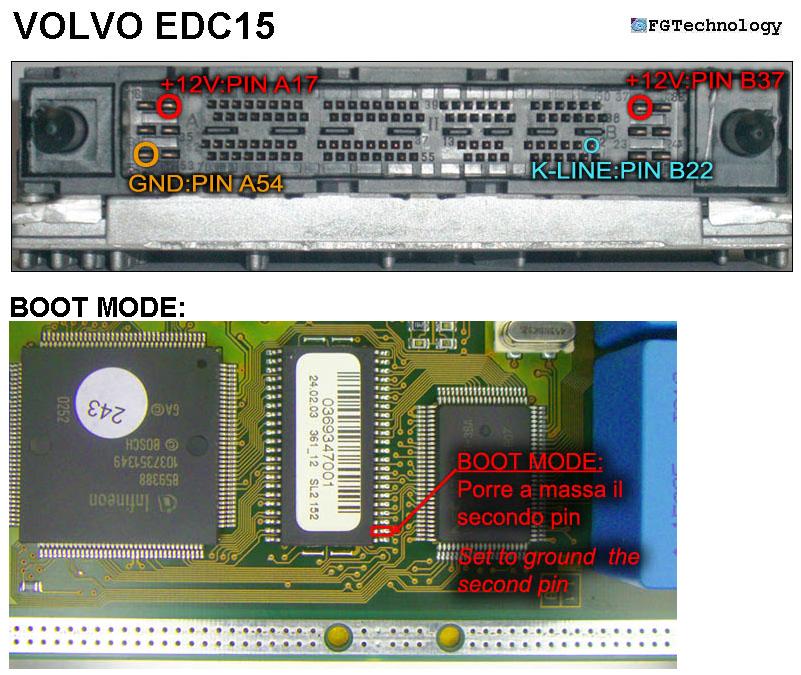

VOLVO EDC15 C167

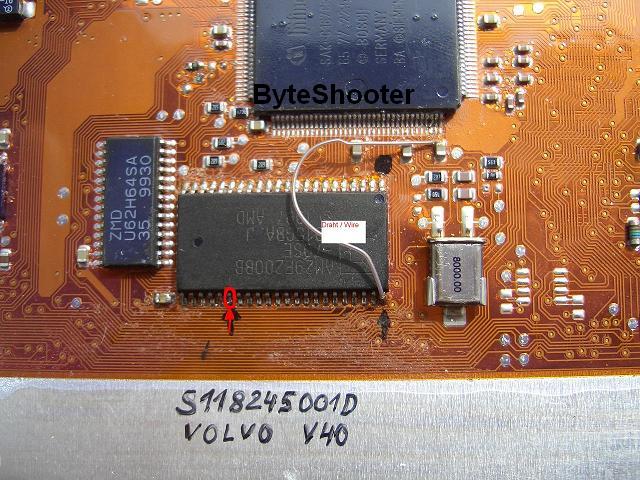

VOLVO V40 S118245001D 2

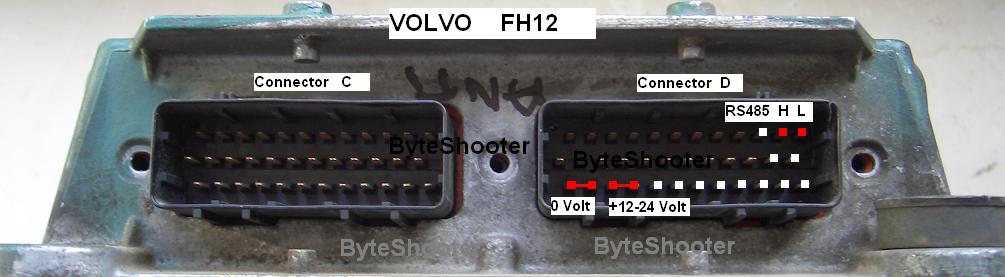

VOLVO FH12

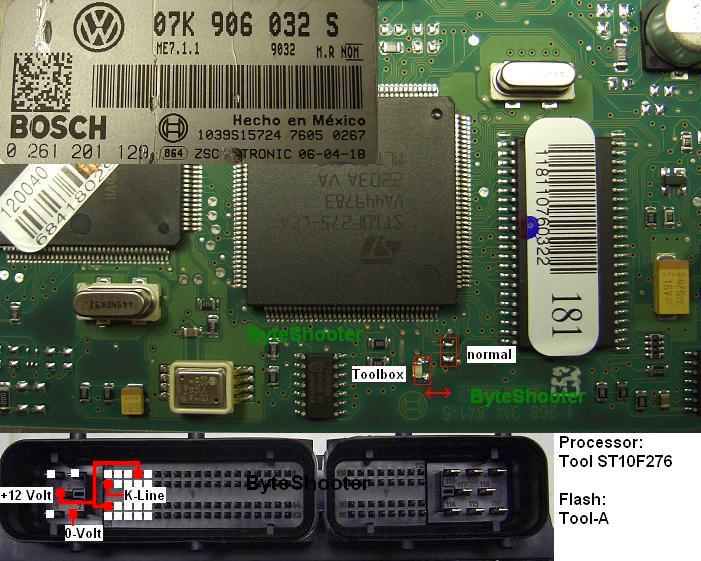

VW ME7 1 1 0261 201 129

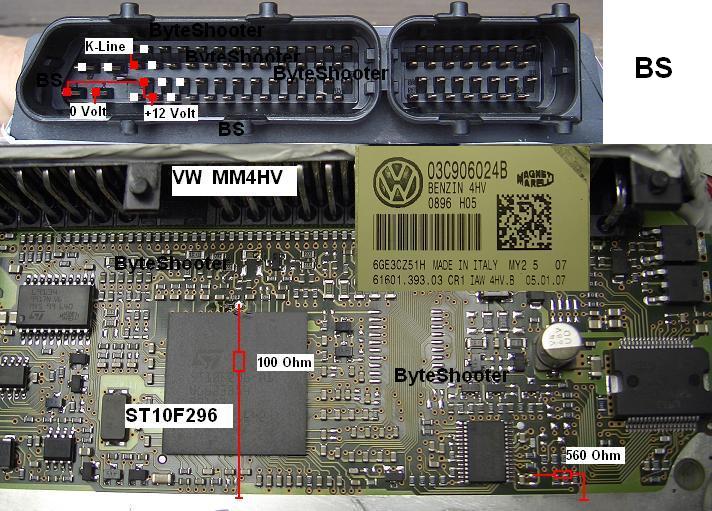

VW MM4HV

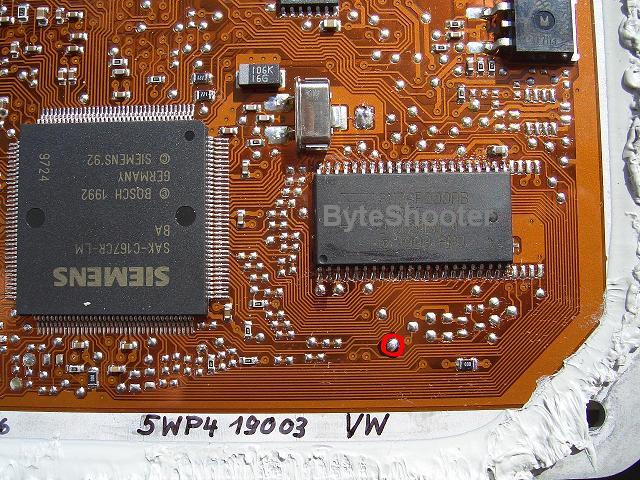

VW Siemens 5WP4 190 03

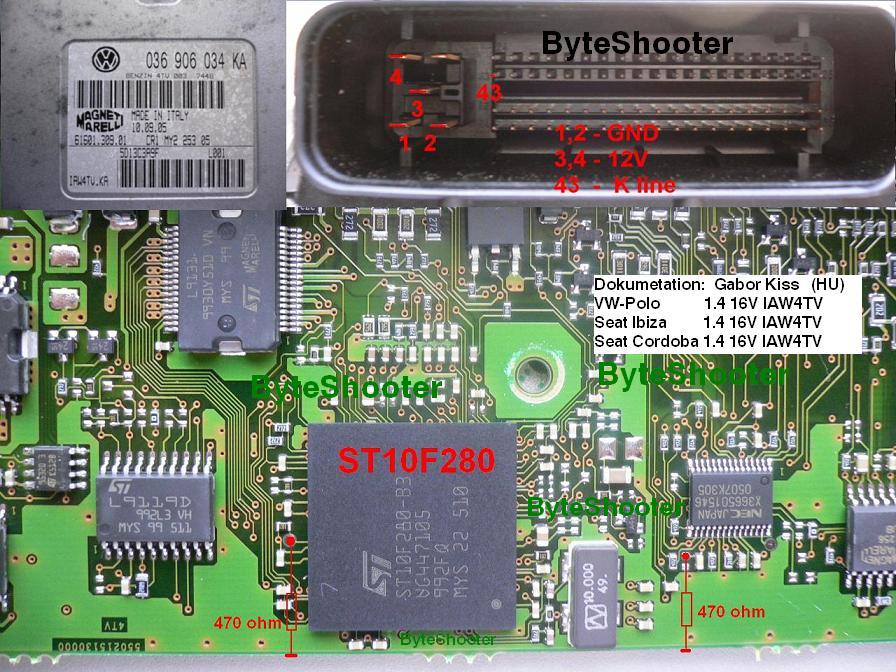

VW Magneti Marelli IAW4TV

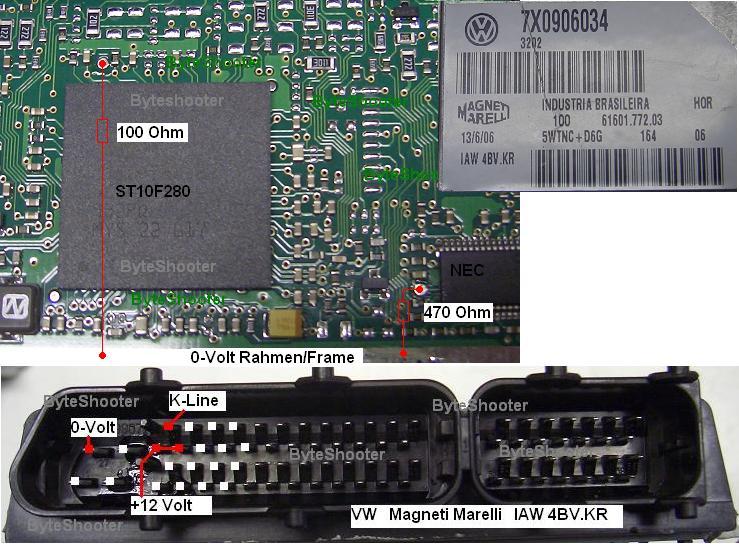

VW Magneti Marelli IAW 4BV KR

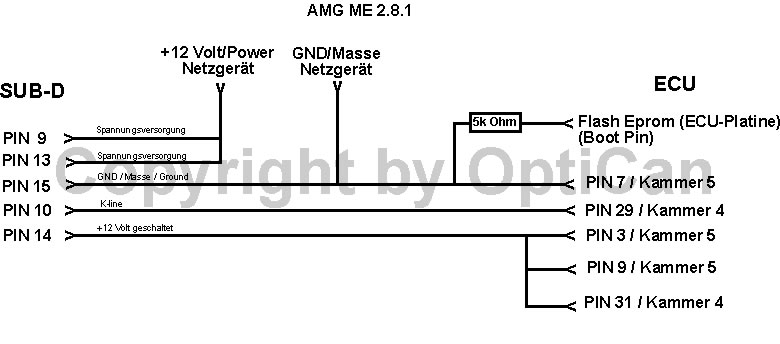

Amg Me 281 Skizze1 529

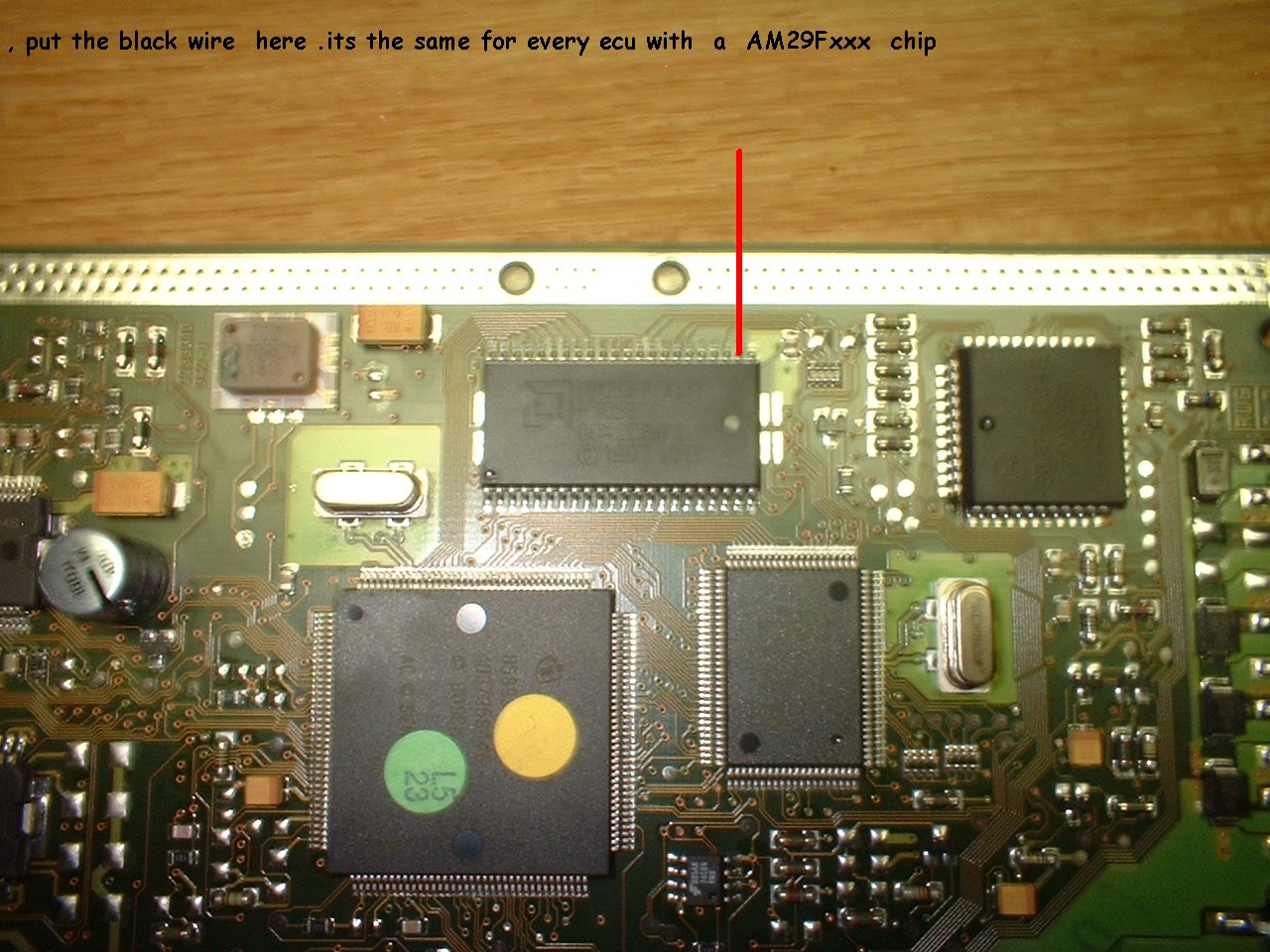

Bootmode

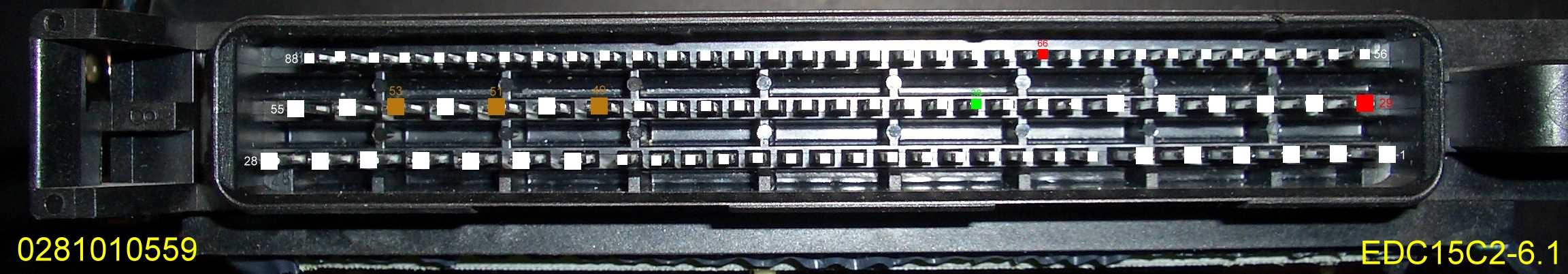

Edc15c2

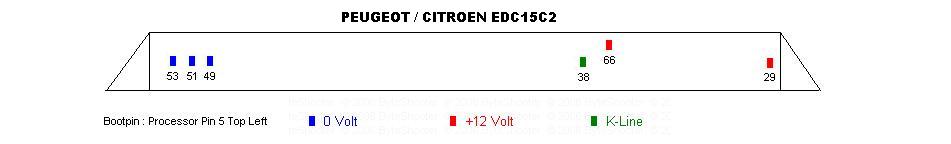

Edc15c2 Pinout

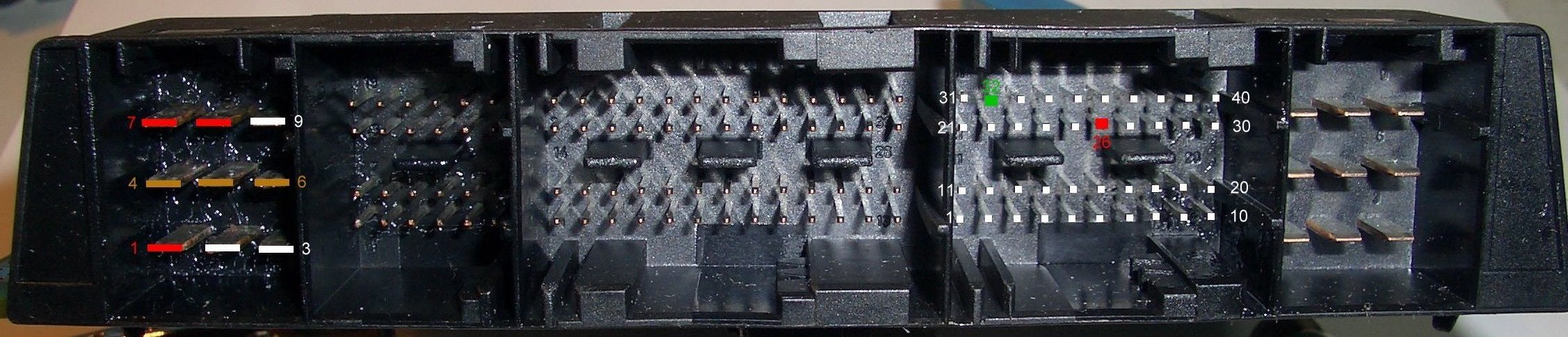

Edc15c4 830 Bmw Stecker 763

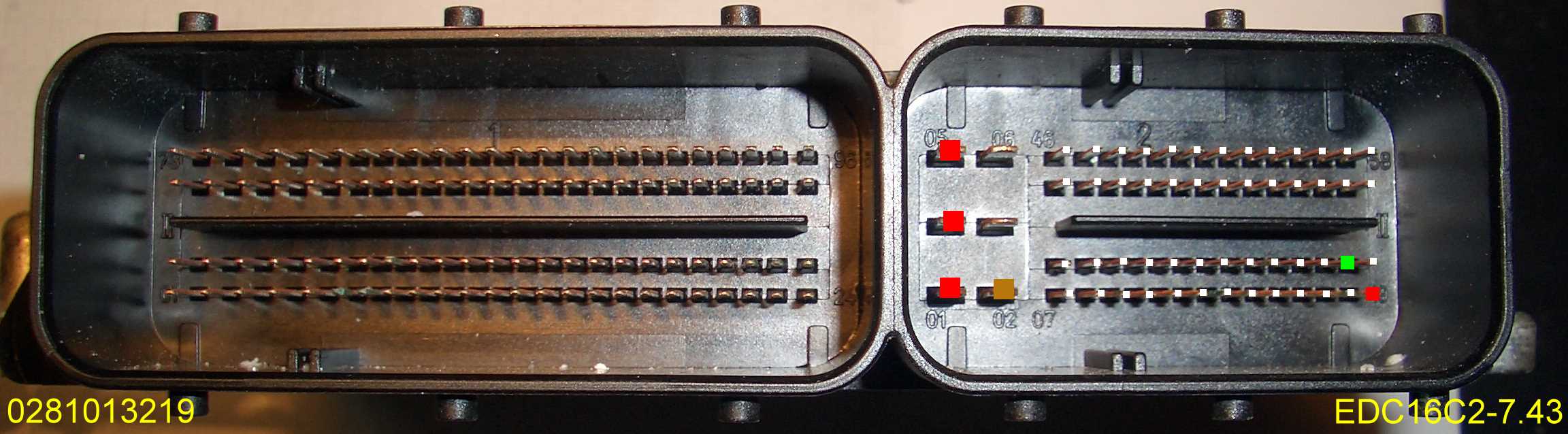

Edc16c2 743 Mercedes 517

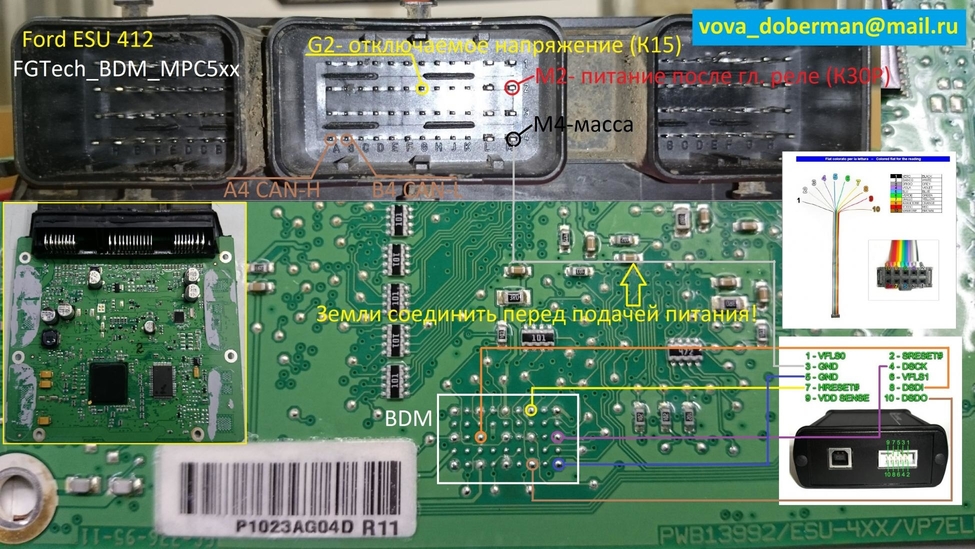

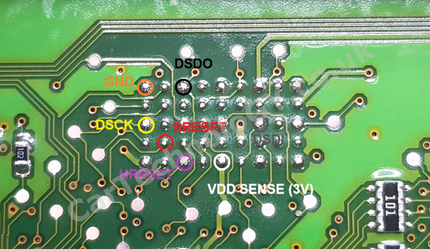

Ford Esu412 Zoom
Ford Esu412
Nfo Jts
Open PDF
Opel Dti
Open PDF

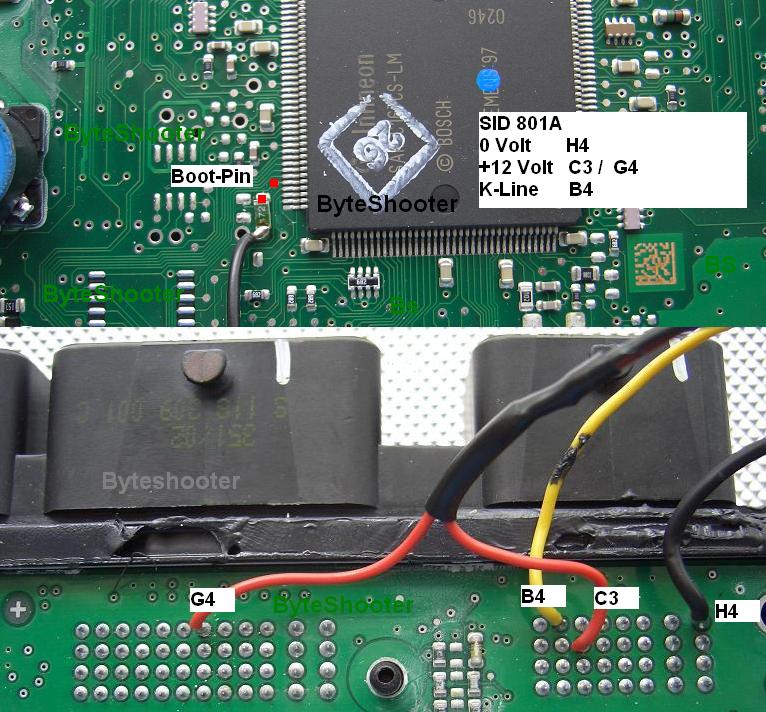

Siemens Sid 801A

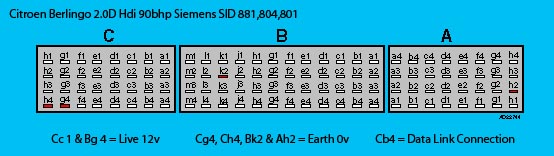

Siemens Sid 881 804 801
Vag Edc16 U31 376
Volvo V40
Open PDF

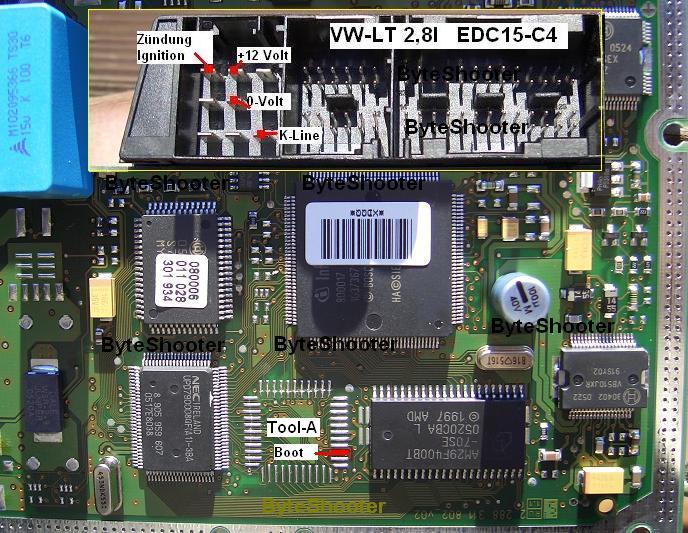

Vw Lt 2 8l Edc15 C4
